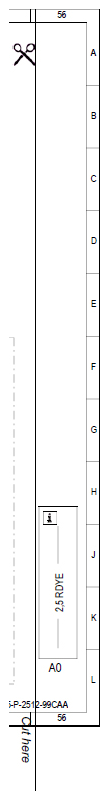

| A0 |
Explanation of color codes |
56L |
| A40/3 |
COMAND control unit |
17L |
| A6 |
STH heater unit |
46L |
| A6/1 |
STH radio remote control receiver |
49L |
| A80 |
Intelligent servo module for DIRECT SELECT |
42L |

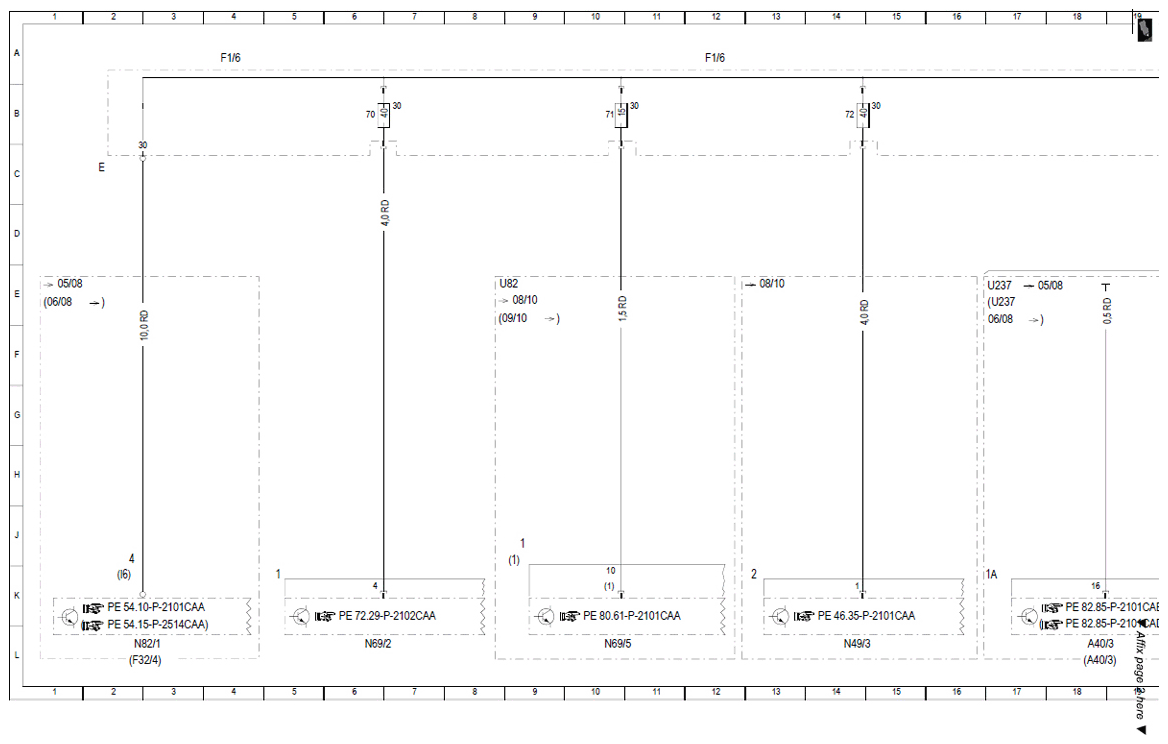

| F1/6 |
Right instrument panel fuse box |
4A |
| F1/6 |
Right instrument panel fuse box |
12A |
| F1/6 |
Right instrument panel fuse box |
20A |
| F1/6 |
Right instrument panel fuse box |
28A |
| F1/6 |
Right instrument panel fuse box |
36A |
| F1/6 |
Right instrument panel fuse box |
44A |

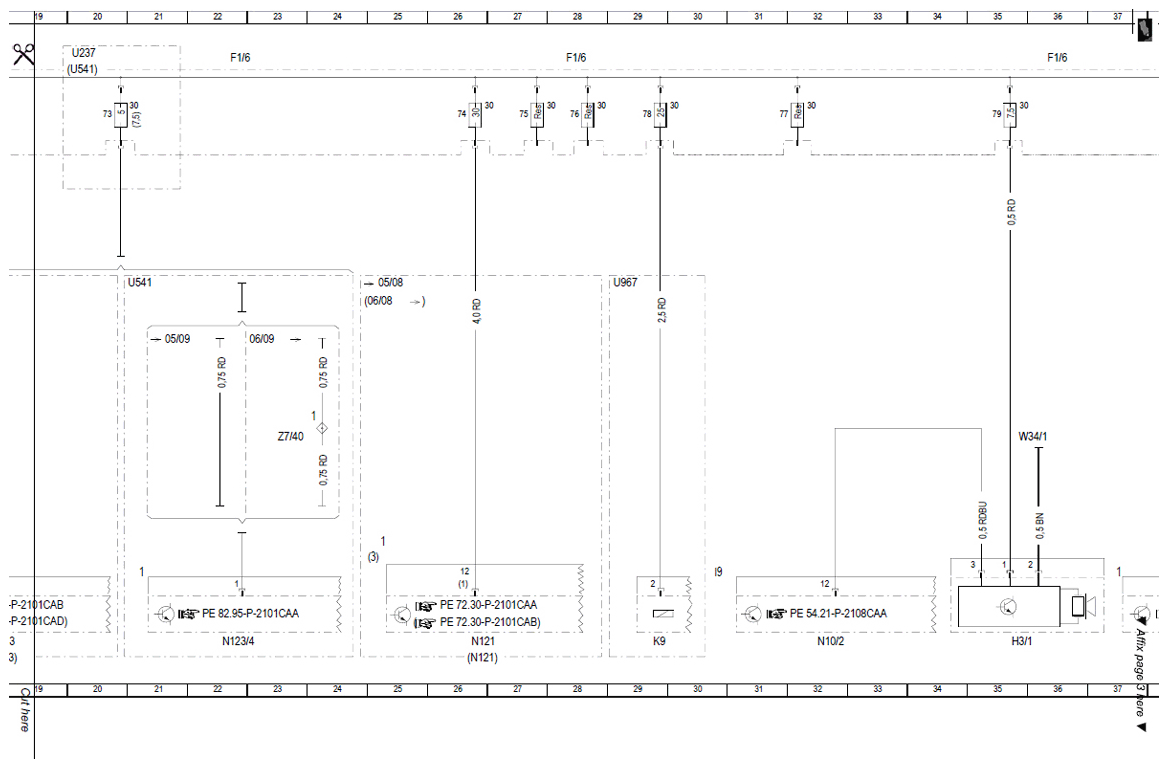

| F1/6f70 |
Fuse 70 |
5B |
| F1/6f71 |
Fuse 71 |
9B |
| F1/6f72 |
Fuse 72 |
13B |
| F1/6f73 |
Fuse 73 |
19B |
| F1/6f74 |
Fuse 74 |
24B |
| F1/6f75 |
Fuse 75 |
28B |
| F1/6f76 |
Fuse 76 |
28B |
| F1/6f77 |
Fuse 77 |
29B |
| F1/6f78 |
Fuse 78 |
30B |
| F1/6f79 |
Fuse 79 |
31B |

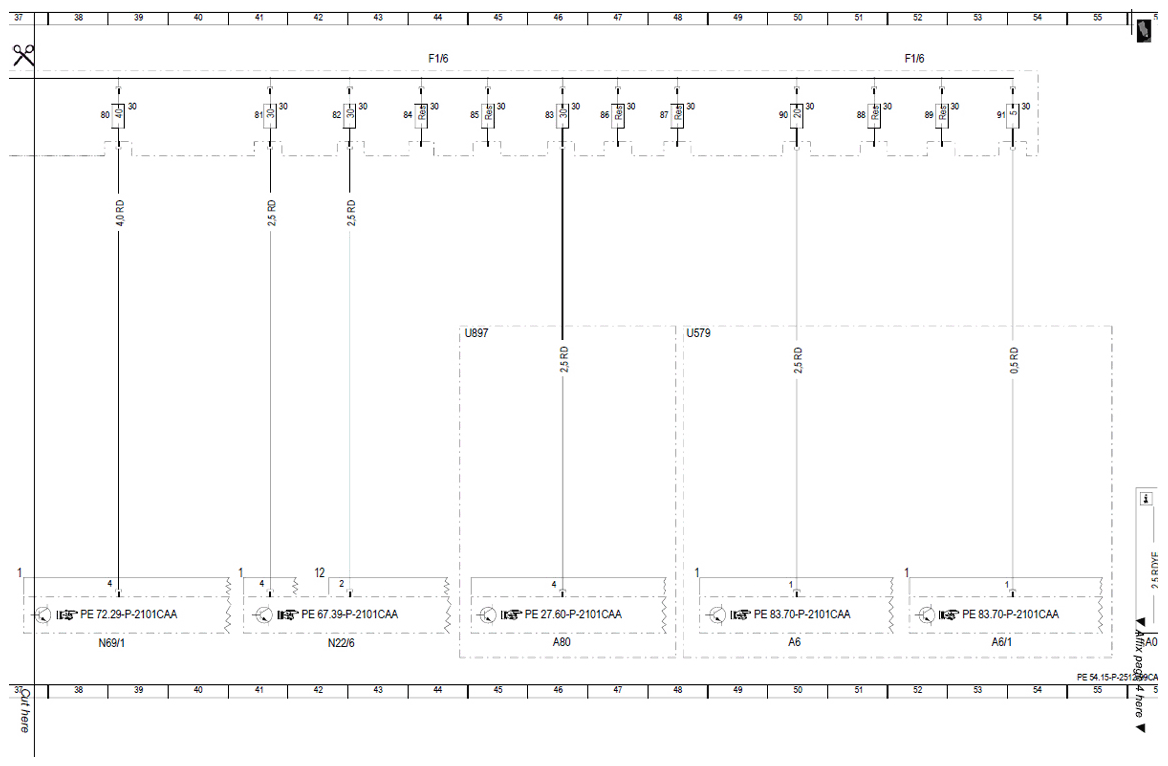

| F1/6f80 |
Fuse 80 |
35B |
| F1/6f81 |
Fuse 81 |
37B |
| F1/6f82 |
Fuse 82 |
38B |
| F1/6f83 |
Fuse 83 |
42B |
| F1/6f84 |
Fuse 84 |
40B |
| F1/6f85 |
Fuse 85 |
41B |
| F1/6f86 |
Fuse 86 |
43B |
| F1/6f87 |
Fuse 87 |
44B |
| F1/6f88 |
Fuse 88 |
47B |
| F1/6f89 |
Fuse 89 |
48B |
| F1/6f90 |
Fuse 90 |
46B |
| F1/6f91 |
Fuse 91 |
49B |
| H3/1 |
Alarm signal siren |
31L |
| N10/2 |
Rear SAM control module with fuse and relay module |
28L |
| N121 |
TLC [HDS] control module |
25L |
| N123/4 |
Emergency call system control unit |
21L |
| N22/6 |
Rear control module |
38L |
| N49/3 |
Electromechanical steering system control unit |
13L |
| N69/1 |
Left door control module |
34L |
| N69/2 |
Right door control module |
5L |
| N69/5 |
KEYLESS GO control unit |
9L |
| N82/1 |
Vehicle power supply control unit |
2L |
| U237 |
Valid for COMAND operating unit, {{Japan}} version |
15F |
| U541 |
Valid for TELE AID emergency call system |
19F |
| U579 |
Valid for stationary heater (STH) |
44F |
| U82 |
Valid for KEYLESS GO |
8F |
| U897 |
Valid for intelligent servo module for DIRECT SELECT |
41F |
| W34/1 |
Ground (electronics - left footwell) |
31G |
