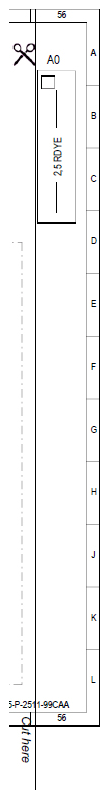

| A0 |
Explanation of color codes |
40L |

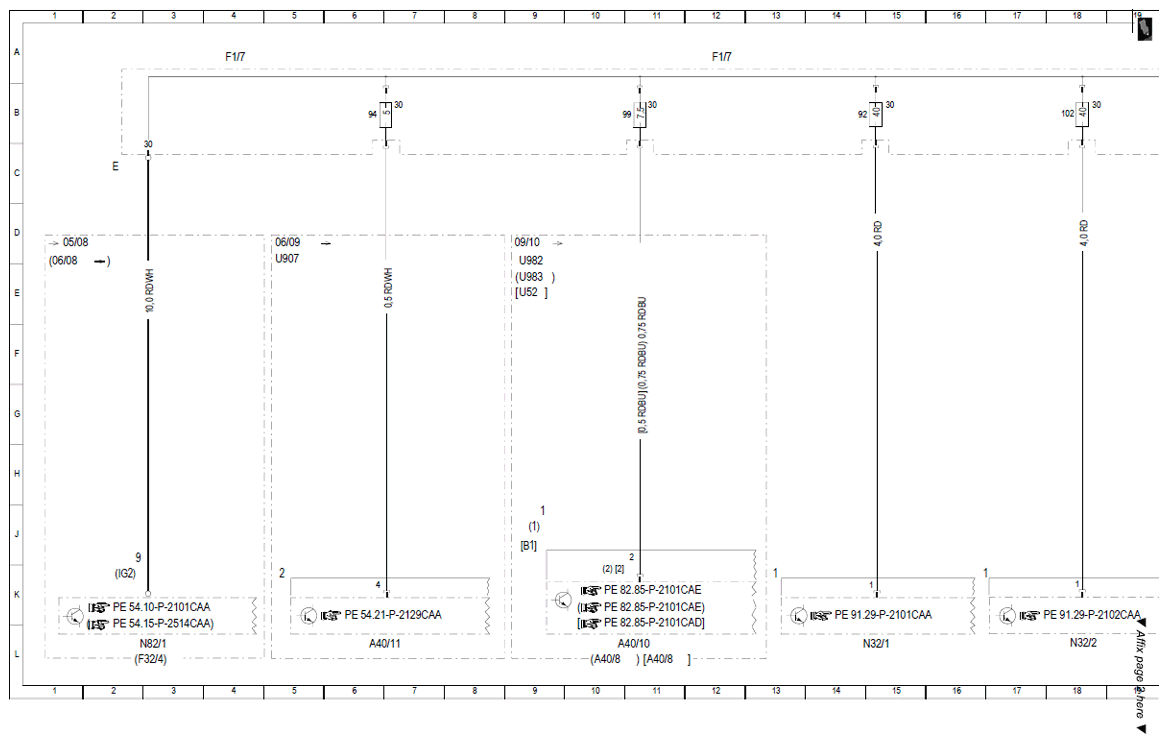

| A50/3 |
Electronic toll collection (ETC) control unit |
28L |
| F1/7 |
Left instrument panel fuse box |
4A |
| F1/7 |
Left instrument panel fuse box |
12A |
| F1/7 |
Left instrument panel fuse box |
20A |
| F1/7 |
Left instrument panel fuse box |
28A |
| F1/7 |
Left instrument panel fuse box |
36A |
| F1/7f100 |
Fuse 100 |
19B |
| F1/7f101 |
Fuse 101 |
20B |
| F1/7f102 |
Fuse 102 |
9B |
| F1/7f103 |
Fuse 103 |
24B |
| F1/7f104 |
Fuse 104 |
32B |
| F1/7f105 |
Fuse 105 |
18B |
| F1/7f106 |
Fuse 106 |
28B |
| F1/7f107 |
Fuse 107 |
36B |
| F1/7f108 |
Fuse 108 |
25B |
| F1/7f109 |
Fuse 109 |
23B |
| F1/7f110 |
Fuse 110 |
26B |
| F1/7f111 |
Fuse 111 |
30B |
| F1/7f112 |
Fuse 112 |
37B |
| F1/7f113 |
Fuse 113 |
22B |
| F1/7f92 |
Fuse 92 |
6B |
| F1/7f93 |
Fuse 93 |
17B |
| F1/7f94 |
Fuse 94 |
3B |
| F1/7f95 |
Fuse 95 |
21B |
| F1/7f96 |
Fuse 96 |
13B |
| F1/7f97 |
Fuse 97 |
14B |
| F1/7f98 |
Fuse 98 |
27B |
| F1/7f99 |
Fuse 99 |
4B |

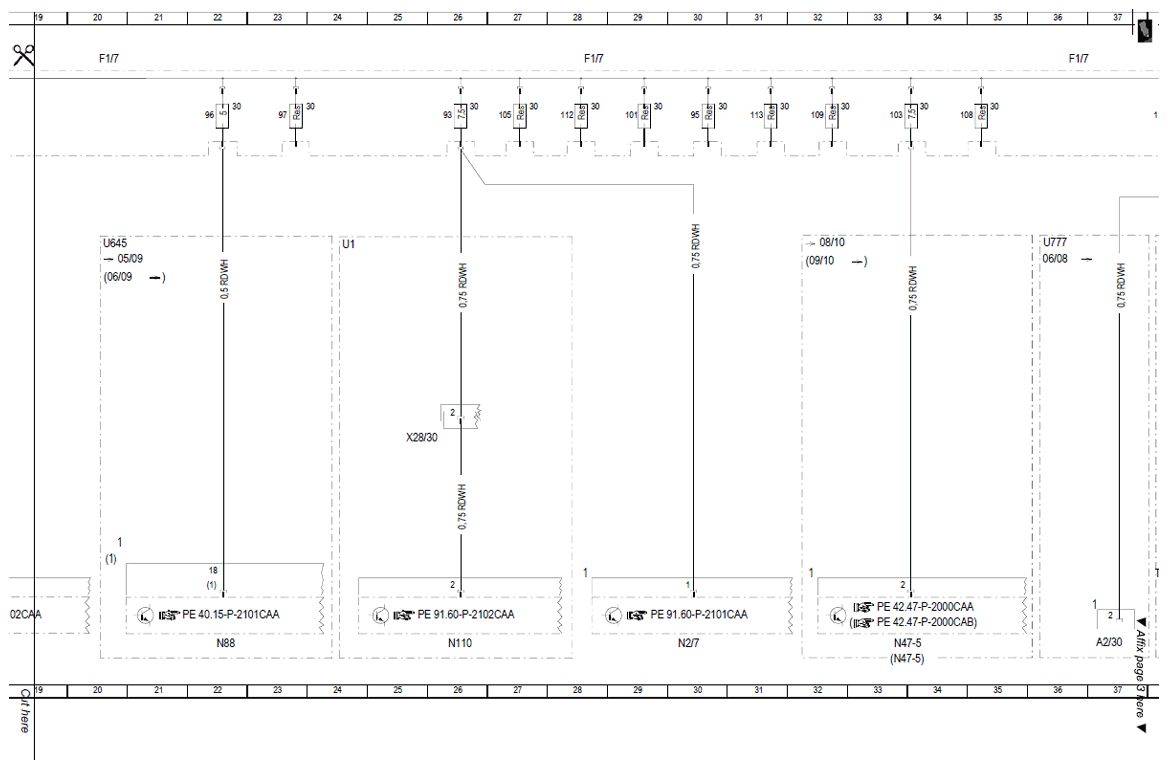

| N110 |
Weight Sensing System (WSS) control unit |
17L |
| N2/7 |
Restraint systems control module |
21L |
| N32/1 |
Left front seat control module |
6L |
| N32/2 |
Right front seat control module |
9L |
| N47-5 |
ESP control module |
24L |
| N82/1 |
Vehicle power supply control unit |
2L |
| N87/3 |
Digital Audio Broadcasting control unit |
36L |
| N87/5 |
SDAR control unit |
36L |
| N88 |
TPM control module |
13L |
| N93/1 |
Audio tuner control unit |
32L |
| U1 |
Valid for {{USA}} |
15D |
| U1 |
Valid for {{USA}} |
35D |

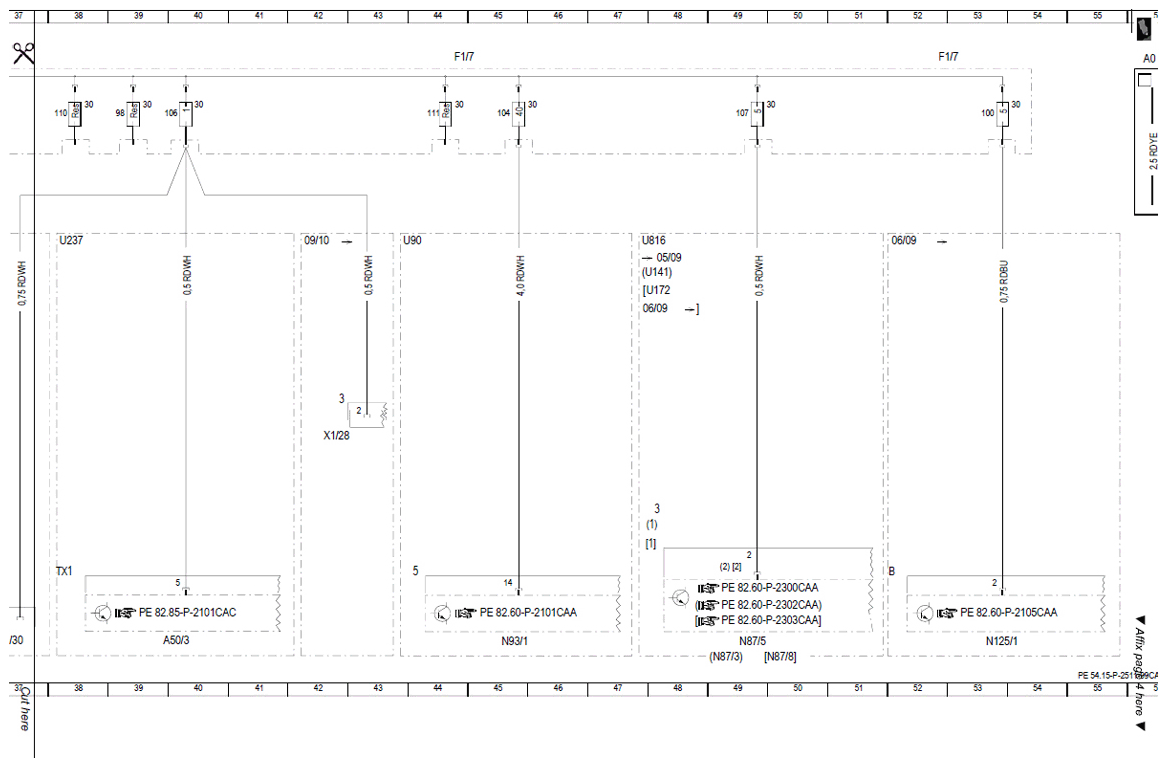

| U141 |
Valid for Digital Audio Broadcasting |
35E |
| U237 |
Valid for COMAND operating unit, {{Japan}} version |
26D |
| U645 |
Valid for tire pressure monitor system |
11D |
| U816 |
Valid for satellite radio (SDAR) |
35E |
| U90 |
Valid for Sound System |
31D |
| X28/30 |
Passenger-side FFS [RBA]/seat airbag separation point |
16H |
