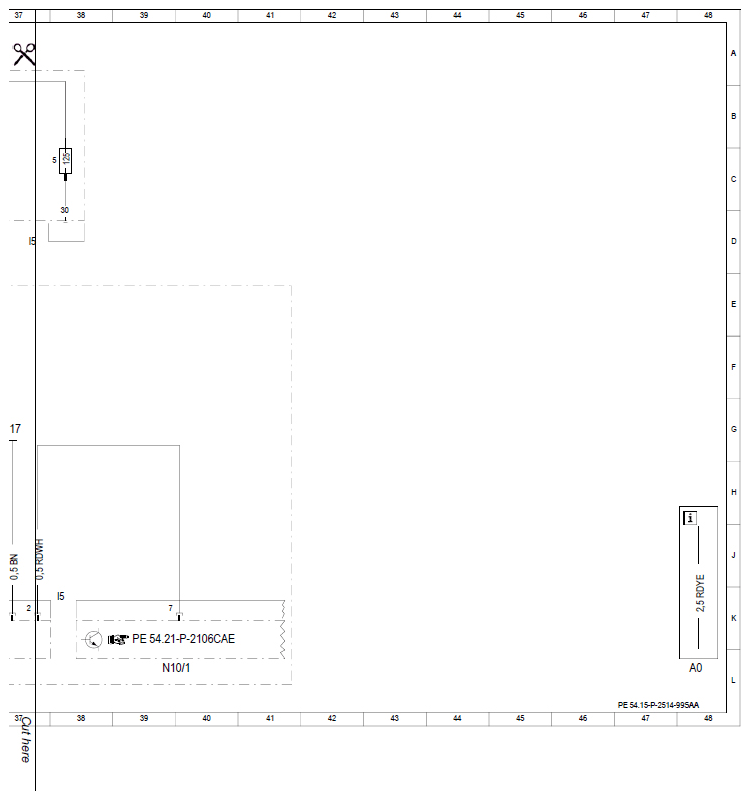

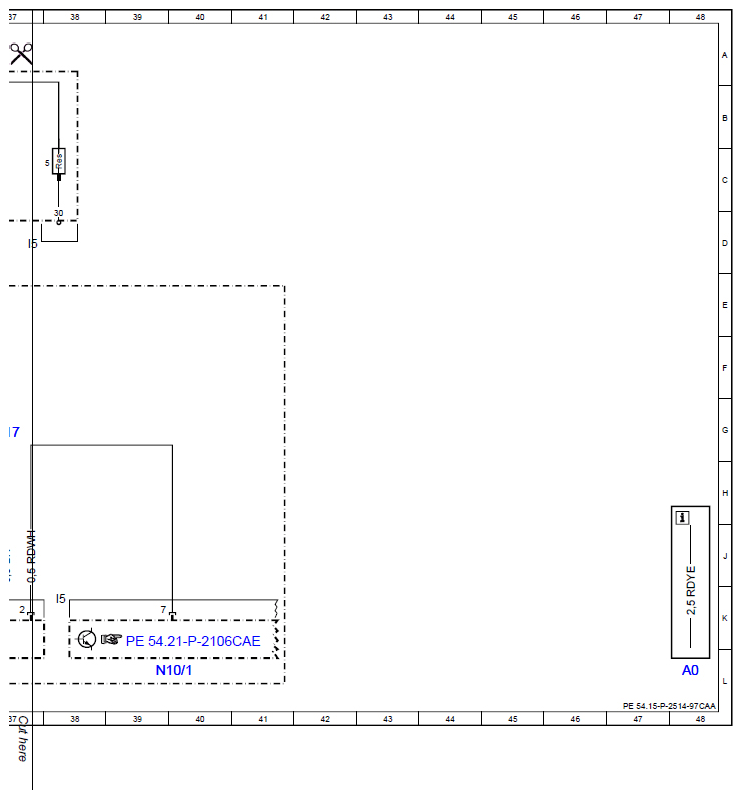

| A0 |
Color code key |
48L |
| B95 |
Battery sensor |
25L |
| F1/6 |
Right instrument panel fuse box |
19L |
| F1/7 |
Left instrument panel fuse box |
3L |
| F32/3 |
Engine compartment prefuse box |
15L |

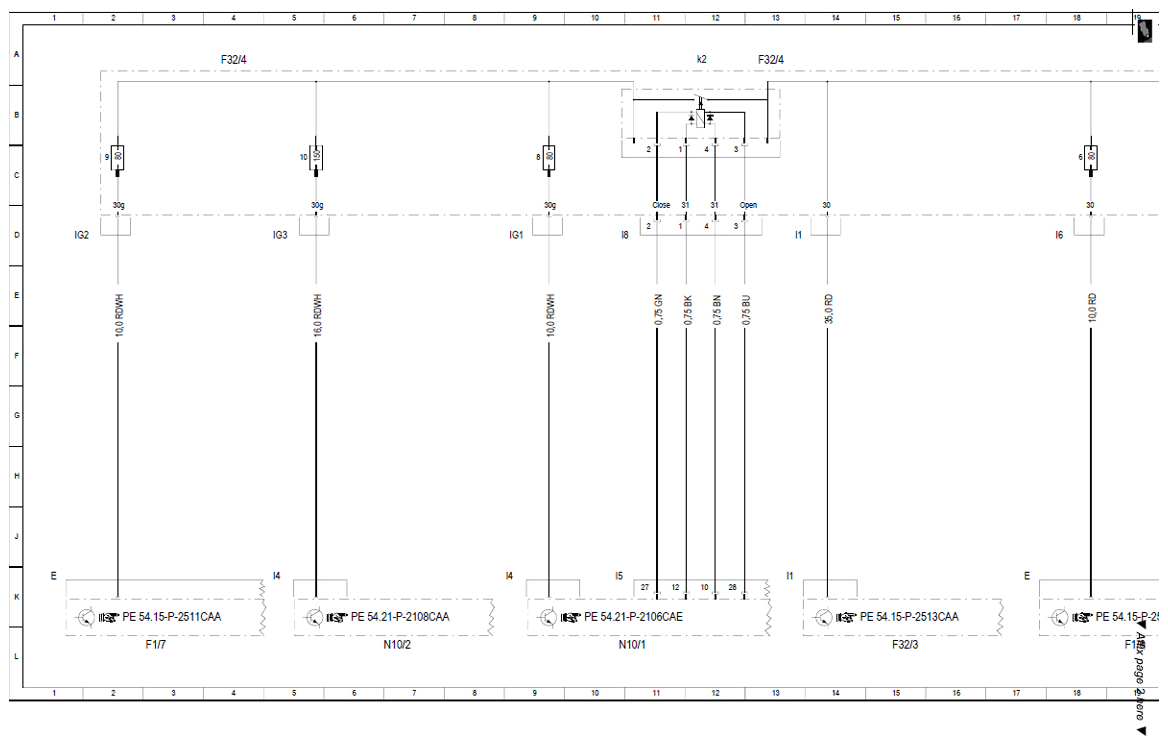

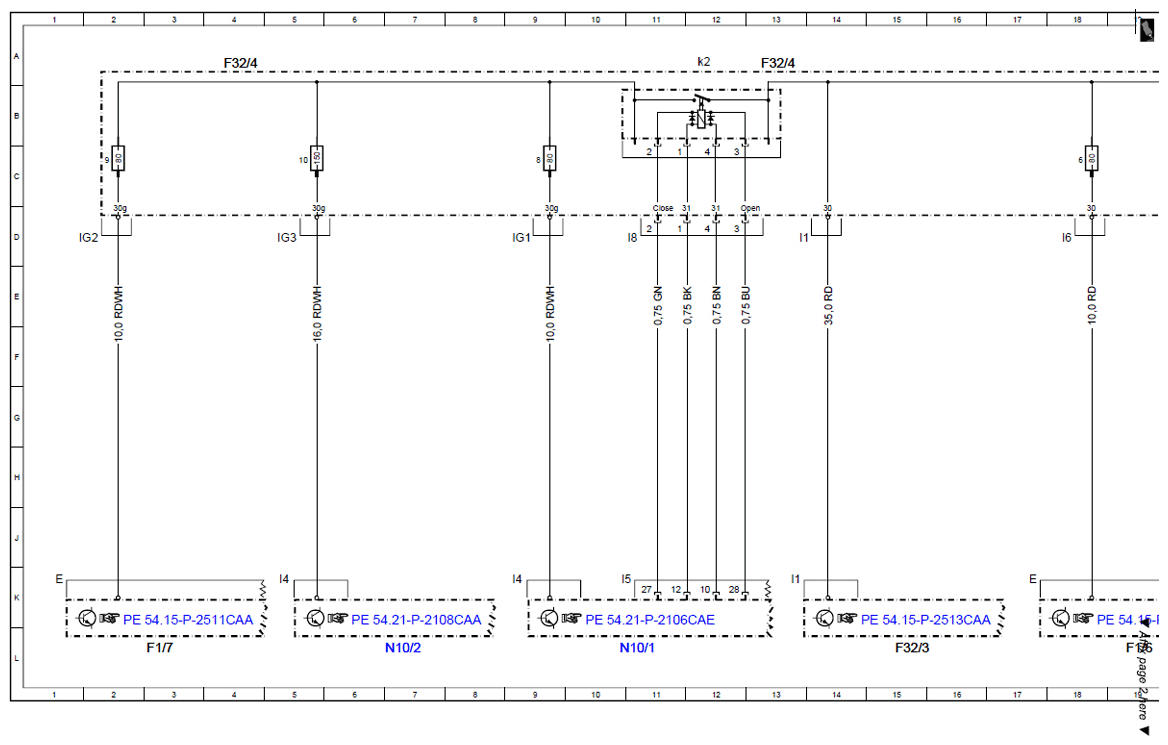

| F32/4 |
Interior prefuse box |
4A |
| F32/4 |
Interior prefuse box |
28A |
| F32/4 |
Interior prefuse box |
20A |
| F32/4 |
Interior prefuse box |
13A |
| F32/4 |
Interior prefuse box |
36A |
| F32/4f10 |
Fuse 10 |
5C |
| F32/4f3 |
Fuse 3 |
31C |
| F32/4f4 |
Fuse 4 |
36C |
| F32/4f5 |
Fuse 5 |
38C |
| F32/4f6 |
Fuse 6 |
18C |
| F32/4f7 |
Fuse 7 |
28C |
| F32/4f8 |
Fuse 8 |
9C |
| F32/4f9 |
Fuse 9 |
2C |
| F32/4k2 |
Quiescent current cutout relay |
12A |

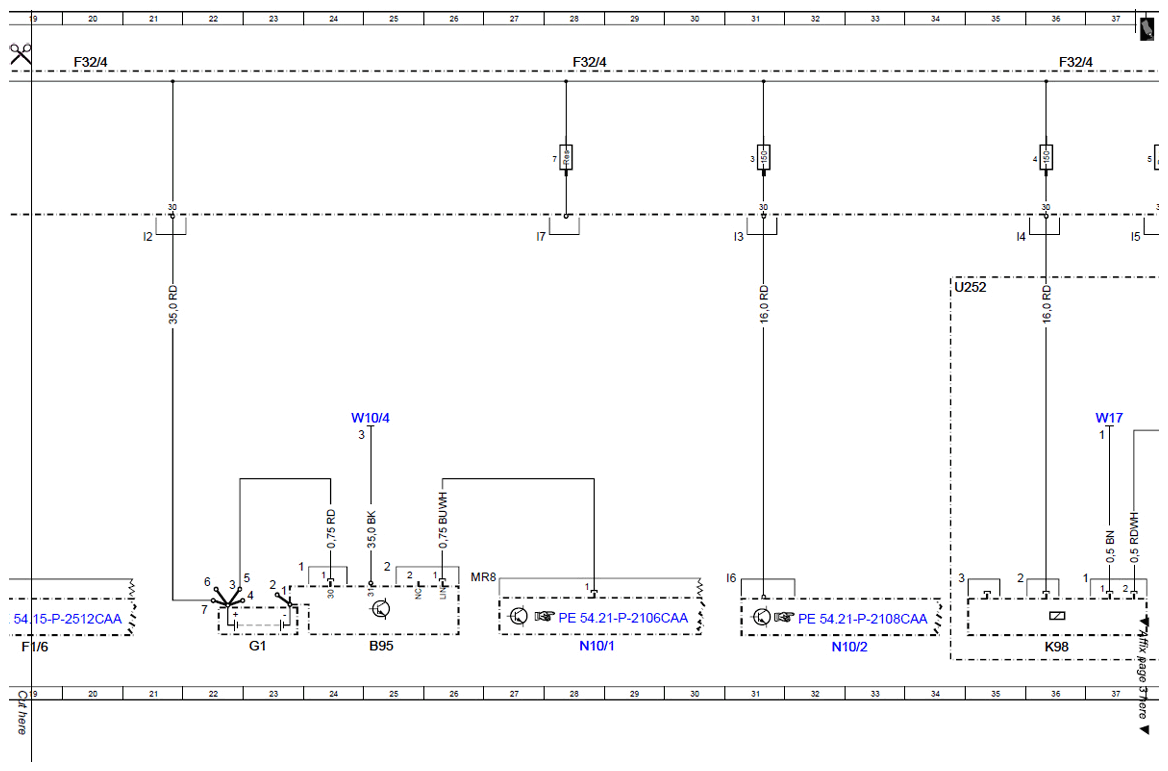

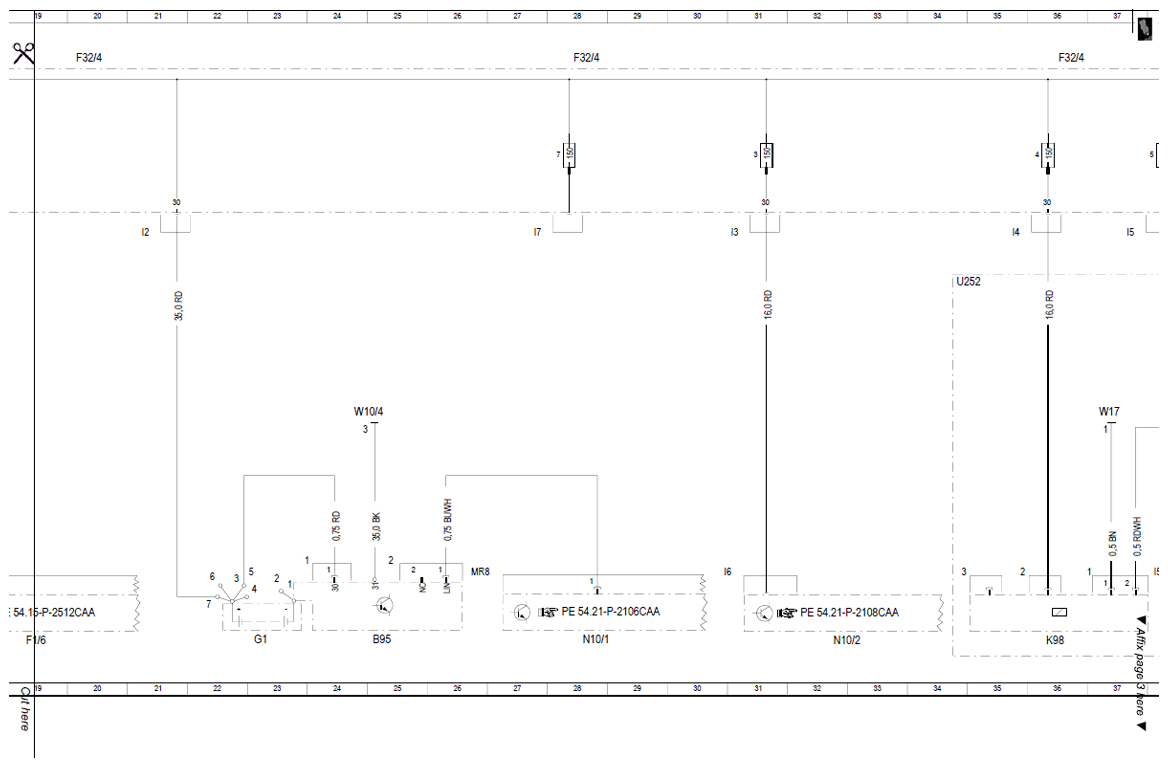

| G1 |
On-board electrical system battery |
23L |
| K98 |
ECO start/stop function relay |
36L |
| N10/1 |
Front SAM control unit with fuse and relay module |
11L |
| N10/1 |
Front SAM control unit with fuse and relay module |
28L |
| N10/1 |
Front SAM control unit with fuse and relay module |
39L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
32L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
7L |
| U252 |
Valid for ECO start/stop function |
34E |
| W10/4 |
Ground (2nd battery) |
24G |
| W17 |
Ground (right rear seat) |
37G |
