Explanation of color codes |
31A |
| F32 |
Front prefuse |
4A |
| F32 |
Front prefuse |
12A |
| F32 |
Front prefuse |
20A |
| F32 |
Front prefuse |
28A |
| F32f1 |
Fuse 1 |
6C |
| F32f10 |
Fuse 10 |
24C |
| F32f2 |
Fuse 2 |
7C |
| F32f3 |
Fuse 3 |
25C |
| F32f4 |
Fuse 4 |
27C |
| F32f5 |
Fuse 5 |
28C |
| F32f6 |
Fuse 6 |
20C |
| F32f7 |
Fuse 7 |
29C |
| F32f8 |
Fuse 8 |
30C |
| F32f9 |
Fuse 9 |
22C |
| F32k1 |

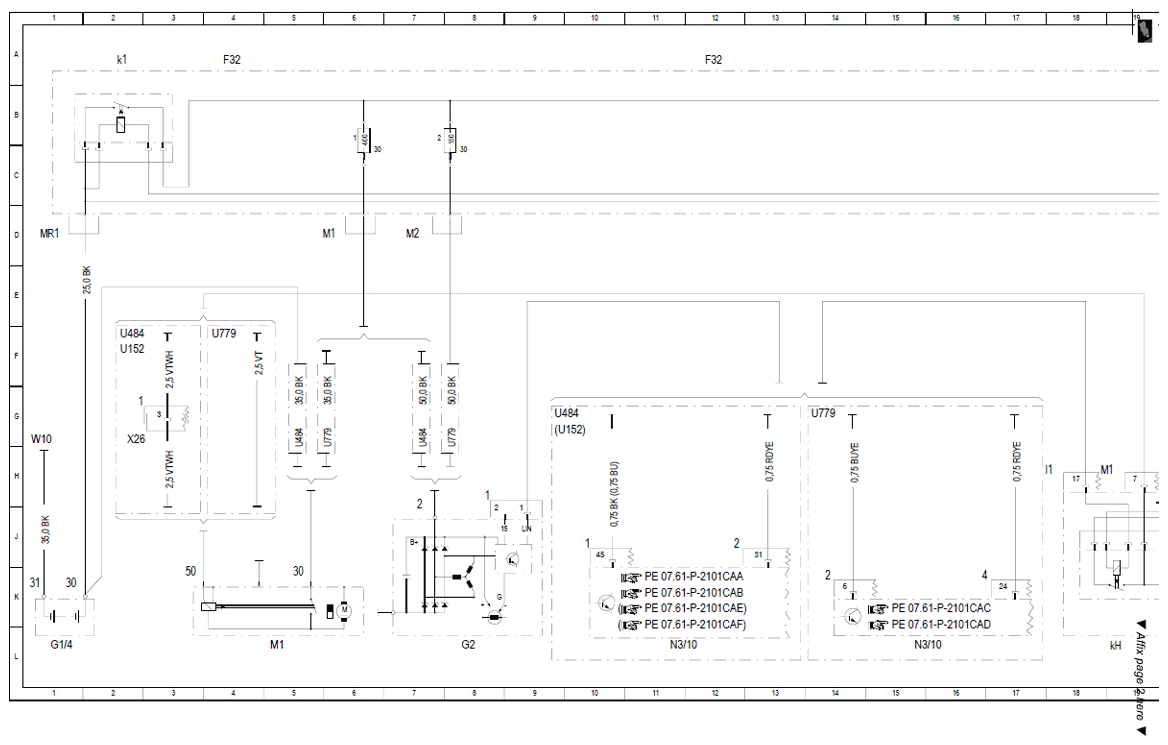

Battery coupling relay |
2A |
| G1/4 |
Starter battery |
1L |
| G2 |
Generator |
8L |
| M1 |
Starter |
5L |
| M4/7 |
Electric suction fan engine and AC with integrated control |
27L |
| N10/1 |

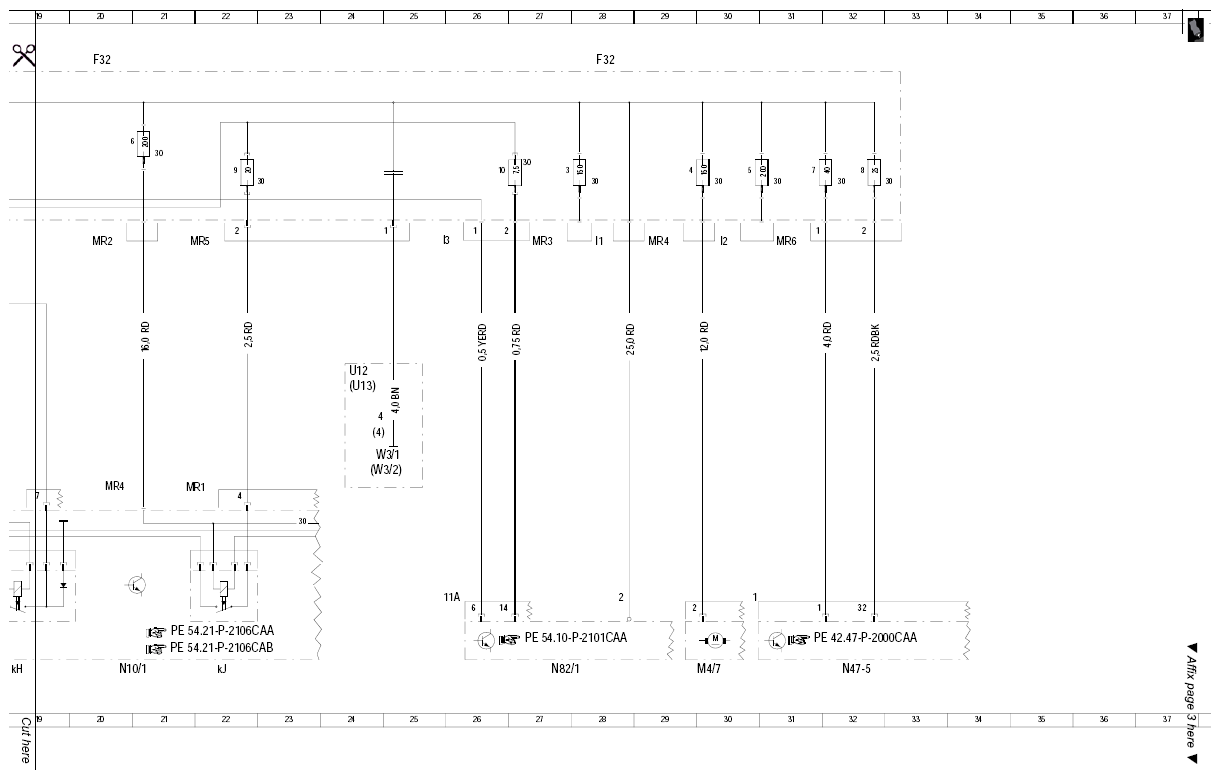

Front SAM control module with fuse and relay module |
20L |
| N10/1kH |
Circuit 50 relay, starter |
18L |
| N10/1kJ |
Circuit 15 relay, starter |
21L |
| N3/10 |
ME-SFI [ME] control module |
11L |
| N3/10 |
ME-SFI [ME] control module |
15L |
| N47-5 |
ESP control module |
30L |
| N82/1 |
Vehicle power supply control unit |
25L |
| U12 |
Valid for left-hand steering |
22F |
| U13 |
Valid for right-hand steering |
22F |
| U152 |
Valid for engine 156 |
2F |
| U484 |
Valid for M273 ME |
2F |
| U484 |
Valid for M273 ME |
5H |
| U484 |
Valid for M273 ME |
7H |
| U484 |
Valid for M273 ME |
9G |
| U779 |
Valid for engine 275 |
4F |
| U779 |
Valid for engine 275 |
6H |
| U779 |
Valid for engine 275 |
8H |
| U779 |
Valid for engine 275 |
14G |
| W10 |
Ground (battery) |
1H |
| W3/1 |
Ground (right front wheel well) |
23G |
| W3/2 |
Ground (left front wheel well) |
23G |
| X26 |
Interior and engine wiring harness connector |
2H |
