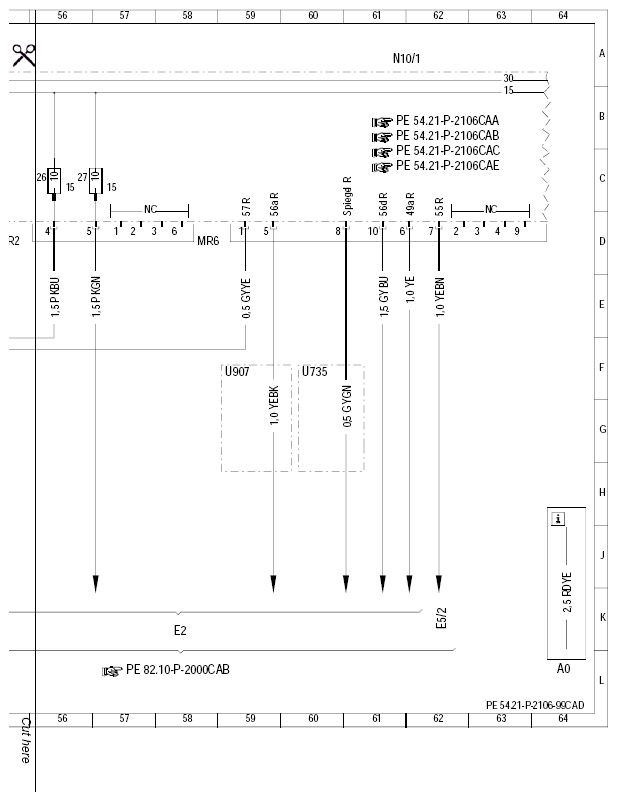

| A0 |
Explanation of color codes |
56L |

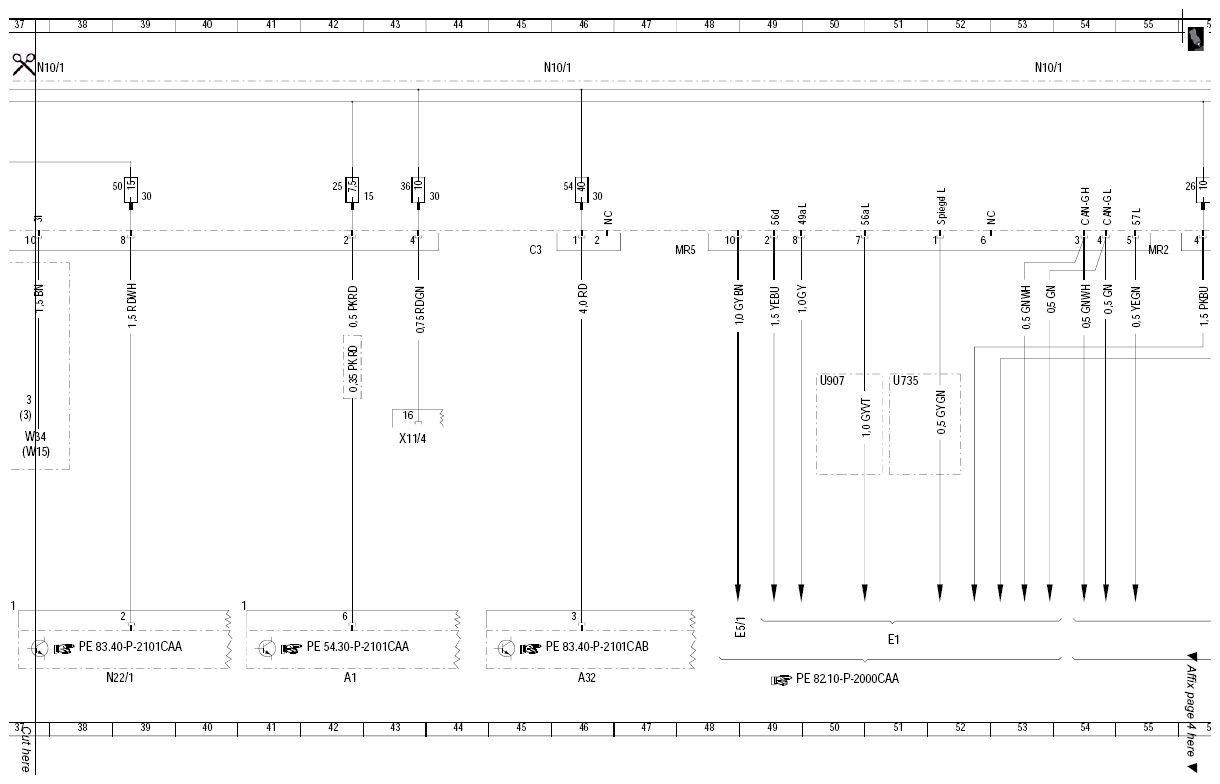

| A1 |
Instrument cluster |
33L |
| A32 |
AC recirculation unit |
36L |

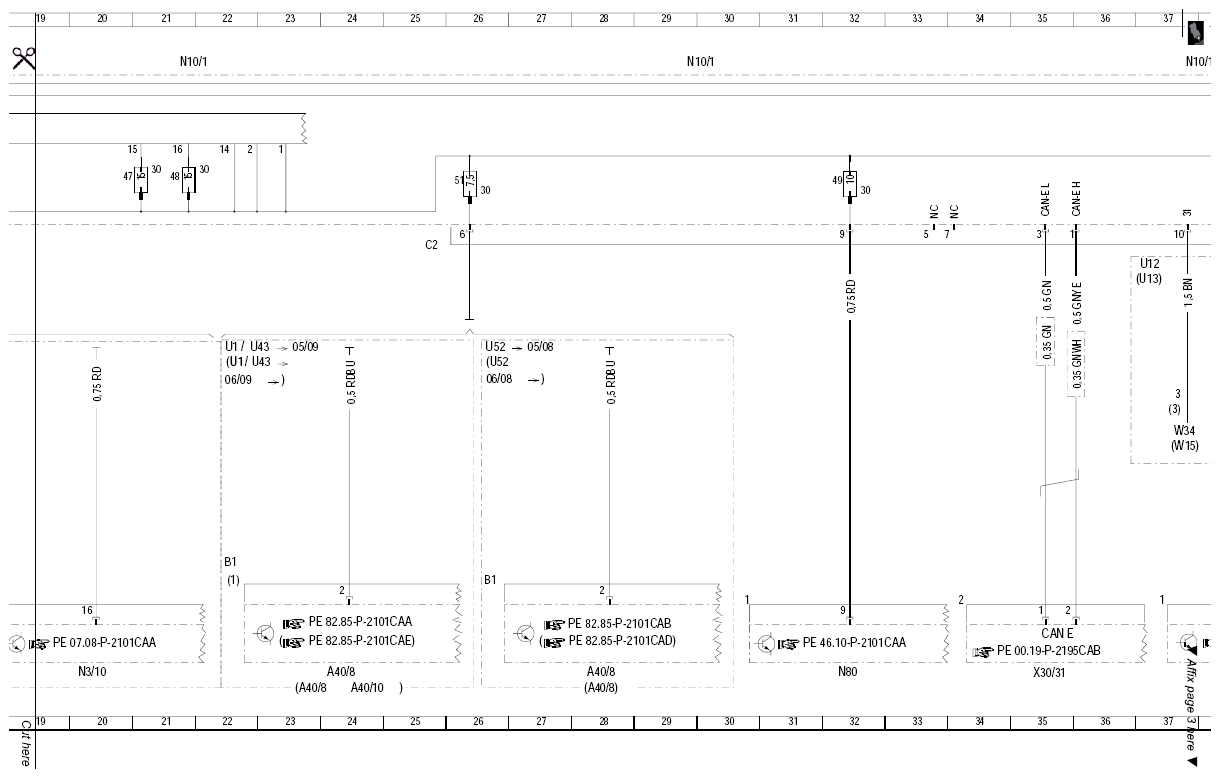

| A40/8 |
COMAND display |
18L |
| E1 |
Left front headlamp unit |
41K |
| E2 |
Right front headlamp unit |
48K |
| E5/1 |
Left fog lamp |
39K |
| E5/2 |
Right fog lamp |
52K |

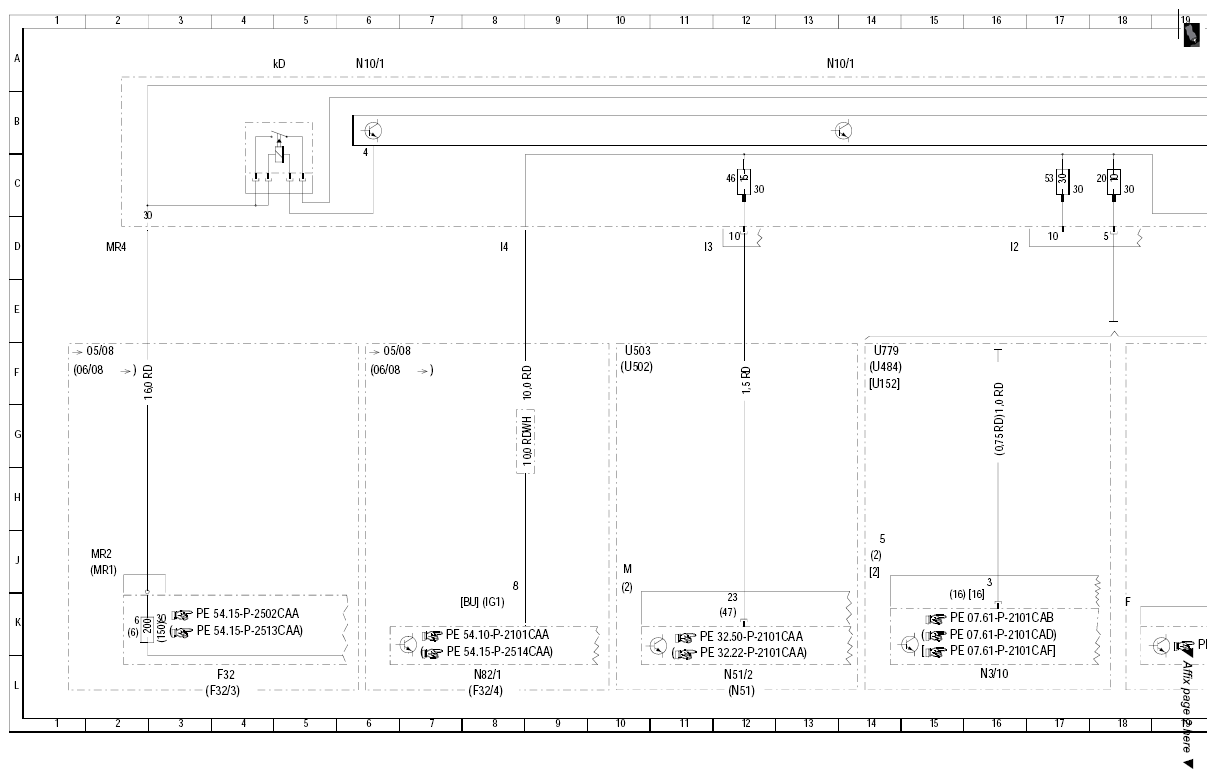

| F32 |
Front prefuse |
3L |
| F32f6 |
Fuse 6 |
1K |
| N10/1 |
Front SAM control module with fuse and relay module |
4A |
| N10/1 |
Front SAM control module with fuse and relay module |
12A |
| N10/1 |
Front SAM control module with fuse and relay module |
20A |
| N10/1 |
Front SAM control module with fuse and relay module |
28A |
| N10/1 |
Front SAM control module with fuse and relay module |
36A |
| N10/1 |
Front SAM control module with fuse and relay module |
44A |
| N10/1 |
Front SAM control module with fuse and relay module |
52A |
| N10/1f20 |
Fuse 20 |
13C |
| N10/1f25 |
Fuse 25 |
32C |
| N10/1f26 |
Fuse 26 |
46C |
| N10/1f27 |
Fuse 27 |
47C |
| N10/1f36 |
Fuse 36 |
33C |
| N10/1f46 |
Fuse 46 |
10C |
| N10/1f47 |
Fuse 47 |
15C |
| N10/1f48 |
Fuse 48 |
16C |
| N10/1f49 |
Fuse 49 |
22C |
| N10/1f50 |
Fuse 50 |
29C |
| N10/1f51 |
Fuse 51 |
18C |
| N10/1f53 |
Fuse 53 |
13C |
| N10/1f54 |
Fuse 54 |
36C |
| N10/1kD |
Circuit 15 relay |
2A |
| N22/1 |
AAC [KLA] control unit |
29L |
| N3/10 |
ME-SFI [ME] control module |
14L |
| N51/2 |
ABC control module |
10L |
| N80 |
Steering column module |
22L |
| N82/1 |
Vehicle power supply control unit |
6L |
| U1 |
Valid for {{USA}} |
16F |
| U12 |
Valid for left-hand steering |
27D |
| U13 |
Valid for right-hand steering |
27E |
| U152 |
Valid for engine 156 |
12F |
| U43 |
Valid for ECE |
17F |
| U484 |
Valid for M273 ME |
12F |
| U503 |
Valid for ABC |
8F |
| U52 |
Valid for {{Japan}} |
16F |
| U735 |
Valid for bi-xenon |
41F |
| U735 |
Valid for bi-xenon |
50F |
| U779 |
Valid for engine 275 |
12F |
| U907 |
Valid for night vision assist |
40F |
| U907 |
Valid for night vision assist |
49F |
| W15 |
Ground (electronics power ground) |
28G |
| W34 |
Ground (left footwell) |
27G |
| X11/4 |
Data link connector |
33G |
| X30/31 |
Chassis CAN/cockpit voltage distributor connector |
25L |
