Wiring diagram of front SAM control unit with fuse and relay module (N10/1) - PE54.21-P-2106-99CAC

Code: Designation: Position:
A0 Explanation of color codes 64L
A1 Instrument cluster 10L
A13 Electric parking brake control unit 29L
A89 DTR control unit 52L
F32 Front prefuse 2L
F32f6 Fuse 6 1K
H2 Left fanfare horn 41K
H2/1 Right fanfare horn 42K
N10/1 Front SAM control module with fuse and relay module 3A
N10/1 Front SAM control module with fuse and relay module 12A
N10/1 Front SAM control module with fuse and relay module 20A
N10/1 Front SAM control module with fuse and relay module 28A
N10/1 Front SAM control module with fuse and relay module 36A
N10/1 Front SAM control module with fuse and relay module 44A
N10/1 Front SAM control module with fuse and relay module 52A
N10/1 Front SAM control module with fuse and relay module 61A
N10/1f28 Fuse 28 45C
N10/1f29 Fuse 29 21C
N10/1f31 Fuse 31 31C
N10/1f32 Fuse 32 30C
N10/1f33 Fuse 33 47C
N10/1f34 Fuse 34 29C
N10/1f35 Fuse 35 28C
N10/1f37 Fuse 37 17C
N10/1f38 Fuse 38 14C
N10/1f39 Fuse 39 10C
N10/1f40 Fuse 40 7C
N10/1f44 Fuse 44 19C
N10/1f45 Fuse 45 46C
N10/1f52a Fuse 52a 44C
N10/1f52b Fuse 52B 40C
N10/1f56 Fuse 56 35C
N10/1f57 Fuse 57 39C
N10/1f60 Fuse 60 49C
N10/1f61 Fuse 61 60C
N10/1f62 Fuse 62 56C
N10/1f63 Fuse 63 51C
N10/1f64 Fuse 64 57C
N10/1f65 Fuse 65 50C
N10/1f66 Fuse 66 52C
N10/1kB Air suspension compressor relay 33A
N10/1kD Circuit 15 relay 2A
N10/1kE Circuit 87 relay, chassis 27A
N10/1kF FAN relay module 41A
N10/1kG Circuit 15R relay 4A
N10/1kK Wiper park heater relay 38A
N10/2 Rear SAM control module with fuse and relay module 21L
N101 Night vision assist control unit 56L
N15/3 ETC [EGS] control module 45L
N2/7 Restraint systems control module 60L
N47-5 ESP control module 25L
N49/3 Electromechanical steering system control unit 49L
N72/1 Upper control panel control module 6L
N73 EIS [EZS] control unit 18L
N93 Central gateway control module 14L
R2/10 Wiper park heater 39L
U1 Valid for {{USA}} 60F
U12 Valid for left-hand steering 37J
U13 Valid for right-hand steering 37J
U152 Valid for engine 156 43G
U43 Valid for ECE 59F
U484 Valid for M273 ME 43G
U779 Valid for engine 275 43G
W3/1 Ground (right front wheel well) 37L
W3/2 Ground (left front wheel well) 37L
X64/3 Wiper park heater connector 38H
Y3/8 Electric control unit (VGS) 45L
Z3/36 ACSR [AKSE] circuit 15R connector sleeve 59H

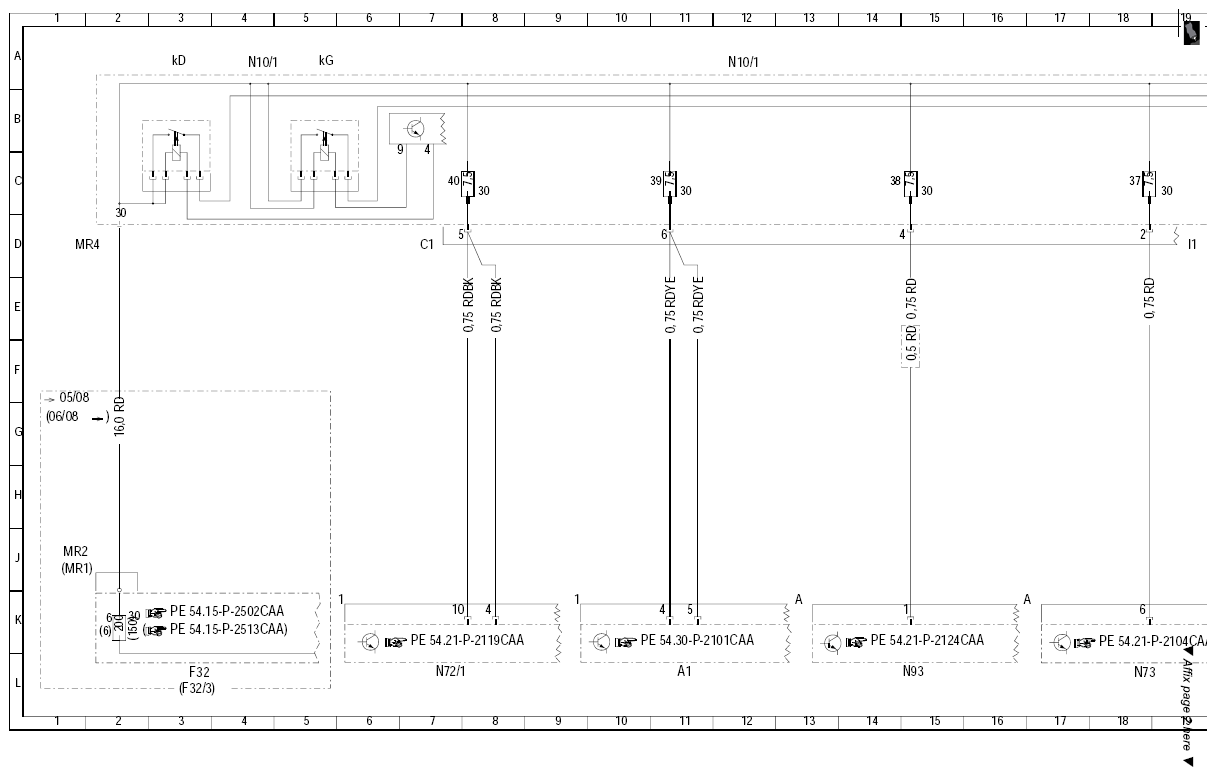

Fig 1: Front Sam Control Unit With Fuse And Relay Module Wiring Diagram (1 Of 4)
G07638531Courtesy of MERCEDES-BENZ USA

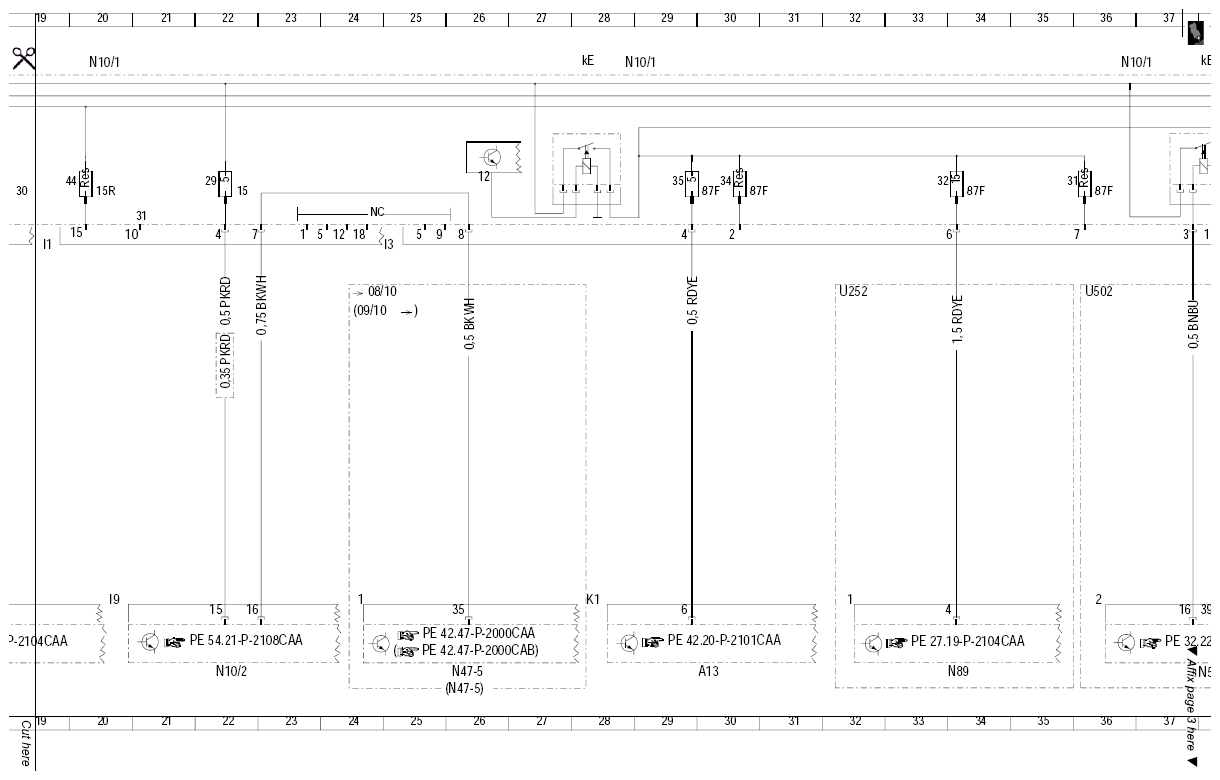

Fig 2: Front Sam Control Unit With Fuse And Relay Module Wiring Diagram (2 Of 4)
G07638532Courtesy of MERCEDES-BENZ USA

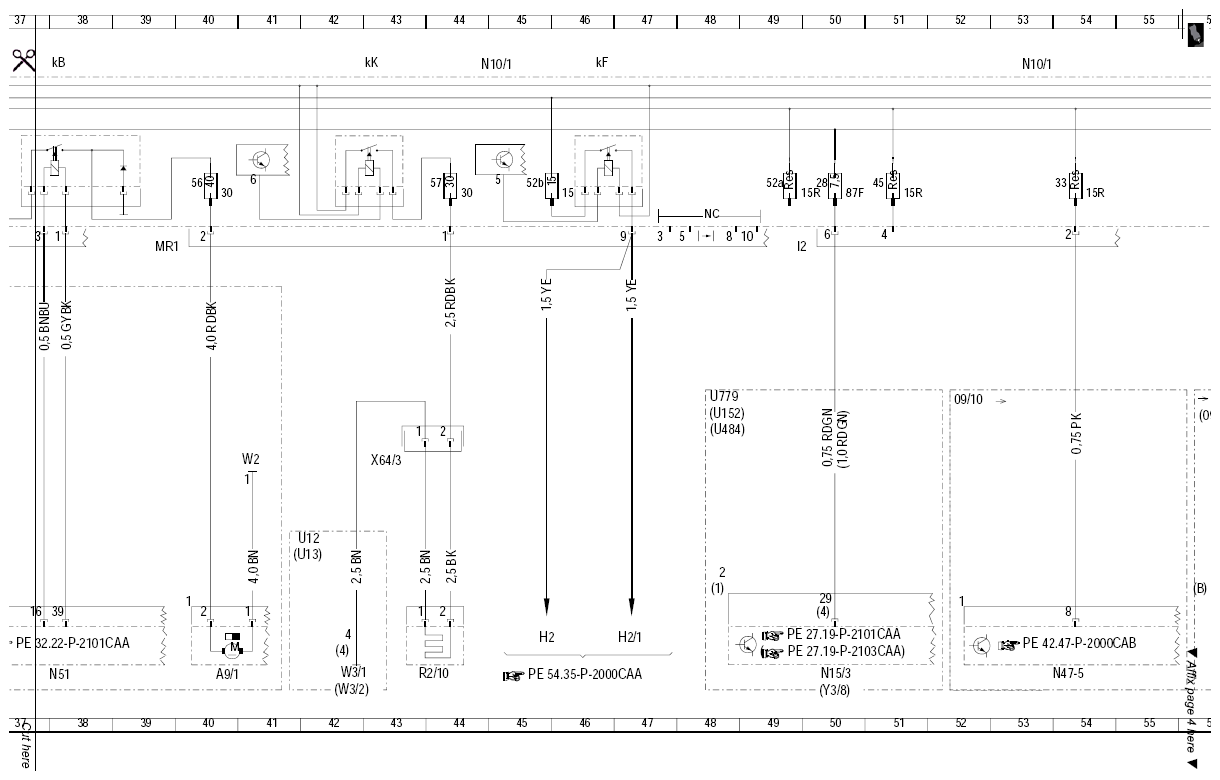

Fig 3: Front Sam Control Unit With Fuse And Relay Module Wiring Diagram (3 Of 4)
G07638533Courtesy of MERCEDES-BENZ USA

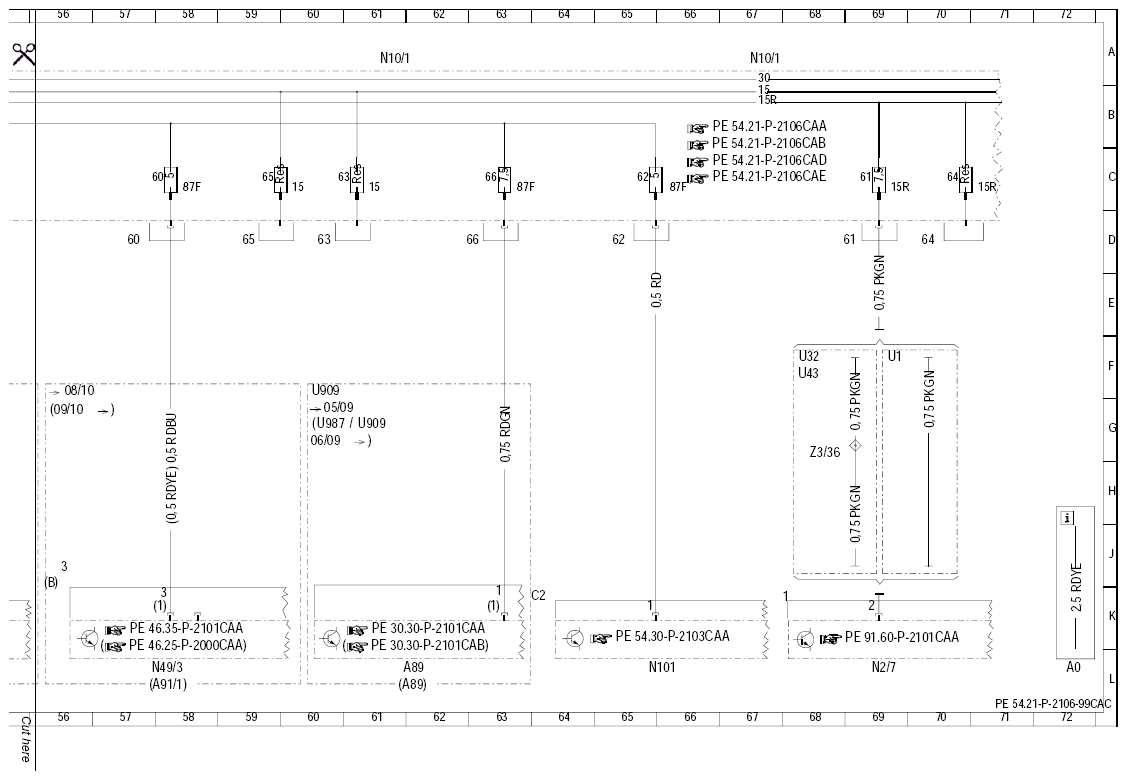

Fig 4: Front Sam Control Unit With Fuse And Relay Module Wiring Diagram (4 Of 4)
G07638534Courtesy of MERCEDES-BENZ USA
