Wiring diagram of front SAM control unit with fuse and relay module (N10/1) - PE54.21-P-2106-99CAA

Code: Designation: Position:
A0 Explanation of color codes 64L
B14 Ambient temperature display temperature sensor 11L
B31/1 AAC [KLA] multifunction sensor 16L
B32/2 AAC [KLA] sun sensor (4 in total) 18L
E6/1 Left front side marker lamp {{USA}} 26L
E6/2 Right front side marker lamp {{USA}} 27L
F32 Front prefuse 2L
F32f6 Fuse 6 1K
M13 Coolant circulation pump 24L
M20/1 Steering column forward/back motor 34L
M20/2 Steering column raise/lower motor 36L
M5/1 Windshield washer fluid pump 21K
M5/2 HCS pump 19K
N10/1 Front SAM control module with fuse and relay module 4A
N10/1 Front SAM control module with fuse and relay module 12A
N10/1 Front SAM control module with fuse and relay module 20A
N10/1 Front SAM control module with fuse and relay module 28A
N10/1 Front SAM control module with fuse and relay module 36A
N10/1 Front SAM control module with fuse and relay module 44A
N10/1 Front SAM control module with fuse and relay module 52A
N10/1 Front SAM control module with fuse and relay module 58A
N10/1kD Circuit 15 relay 2A
N22/1 AAC [KLA] control unit 44L
N73 DI control module 51L
N80 Steering column module 31L
N93 Central gateway control module 54L
R2/11 Washer nozzle hose heater 22K
S10/2 Right front brake pad contact sensor 5L
S10/2x1 Right front brake pad contact sensor connector 4J
S11 Brake fluid indicator switch 12L
S41 Coolant level indicator switch 9L
S42 Windshield washer fluid level indicator switch 7K
S76/15 Electric parking brake switch 60L
U1 Valid for {{USA}} 26F
U12 Valid for left-hand steering 22F
U12 Valid for left-hand steering 28F
U13 Valid for right-hand steering 24F
U13 Valid for right-hand steering 28F
U200 Valid for TELE AID 59F
U914 Valid for engines using water valve 13F
W15 Ground (electronics power ground) 29L
W15/1 Ground (right footwell) 26G
W3/2 Ground (left front wheel well) 23F
W3/2 Ground (left front wheel well) 24F
W34 Ground (left footwell) 29L
X18 Cockpit wiring harness and FFS [RBA] connector 59G
X30/34 Interior CAN/cockpit voltage distributor connector 38L
X73/2 Coolant circulation pump connector 22H
Y19/2 AC water valve 13L
Z110/1 AC bus solder terminal 15G
Z110/3 AC bus solder terminal 16G
Z111 Voltage supply connector sleeve 41G
Z111/1 AC 12V solder terminal 15G
Z68/3 AC LIN bus data connector sleeve 42G
Z7/60 5V output connector sleeve (solder connector in wiring harness) 48G
Z7/72 COC nozzles and sensors sensor ground connector sleeve 45G
Z81 Circuit 58d connector sleeve 60J
Z81/11 Front passenger circuit 58d connector sleeve 43G
Z81/5 Circuit 58d COC connector sleeve 60F

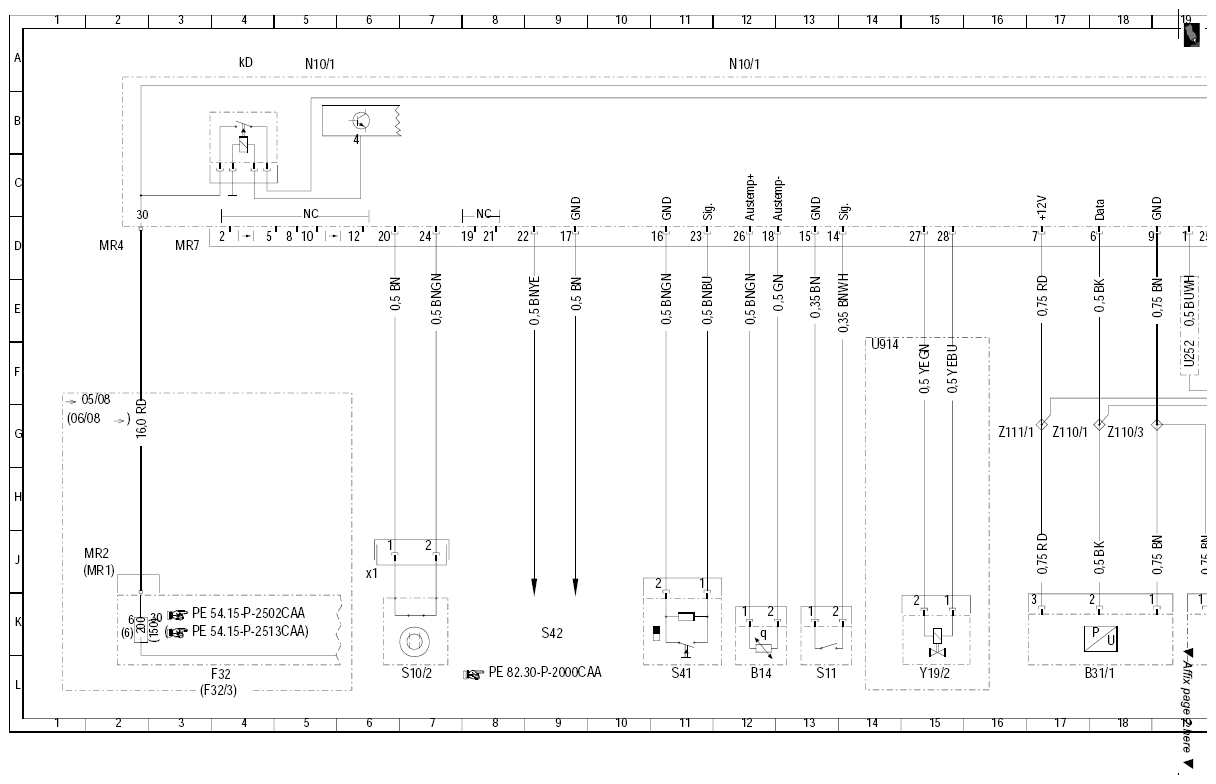

Fig 1: Front SAM Control Unit With Fuse And Relay Module Wiring Diagram (1 Of 5)
G07638521Courtesy of MERCEDES-BENZ USA

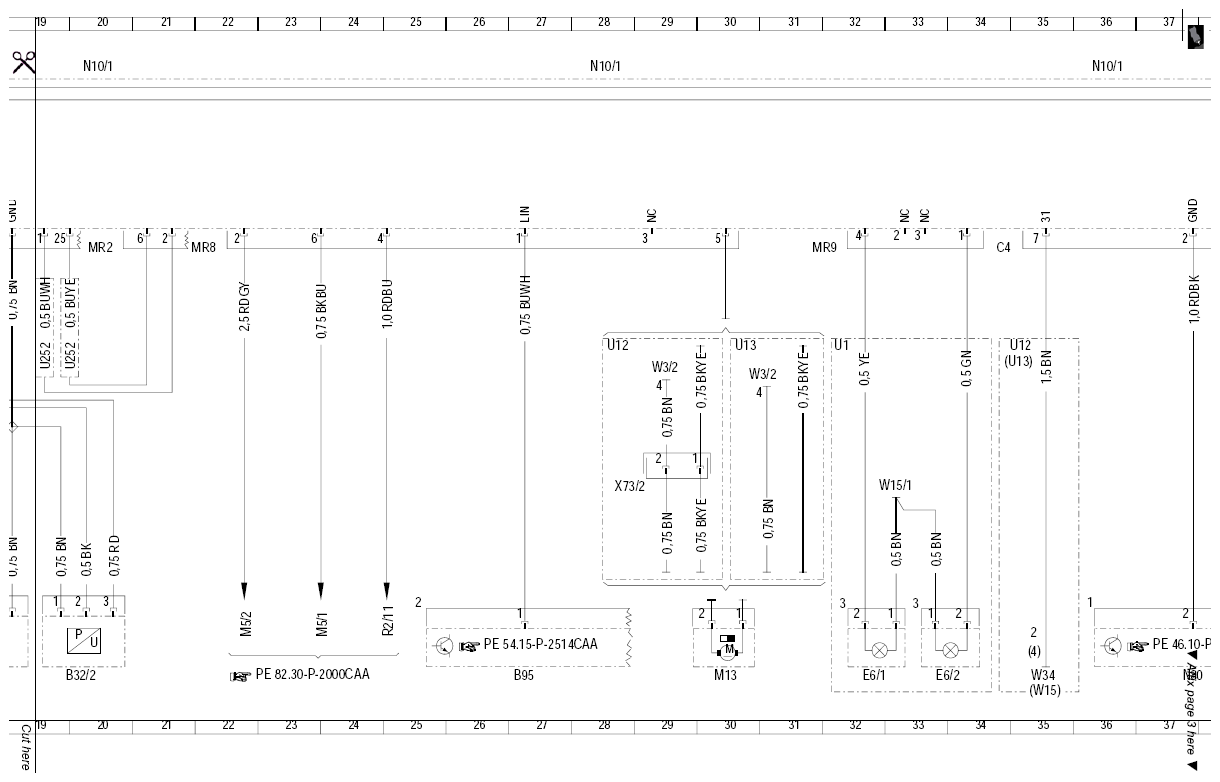

Fig 2: Front SAM Control Unit With Fuse And Relay Module Wiring Diagram (2 Of 5)
G07638522Courtesy of MERCEDES-BENZ USA

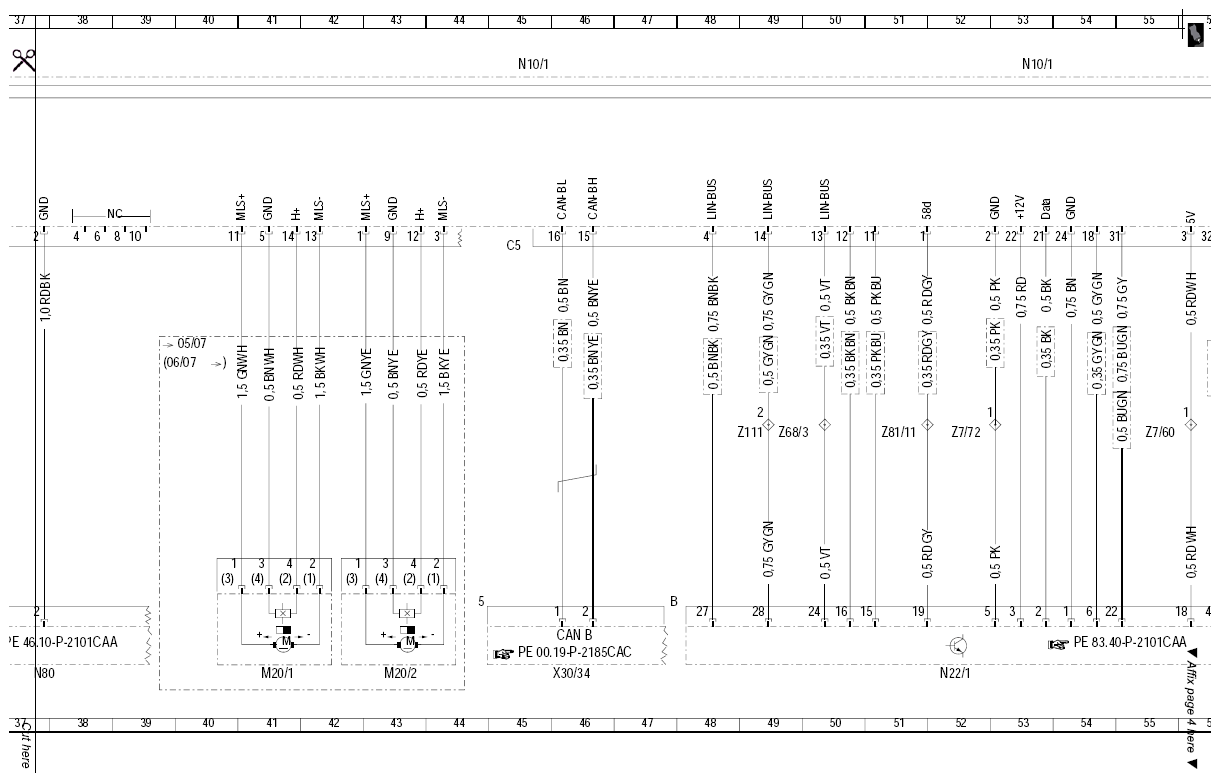

Fig 3: Front SAM Control Unit With Fuse And Relay Module Wiring Diagram (3 Of 5)
G07638523Courtesy of MERCEDES-BENZ USA

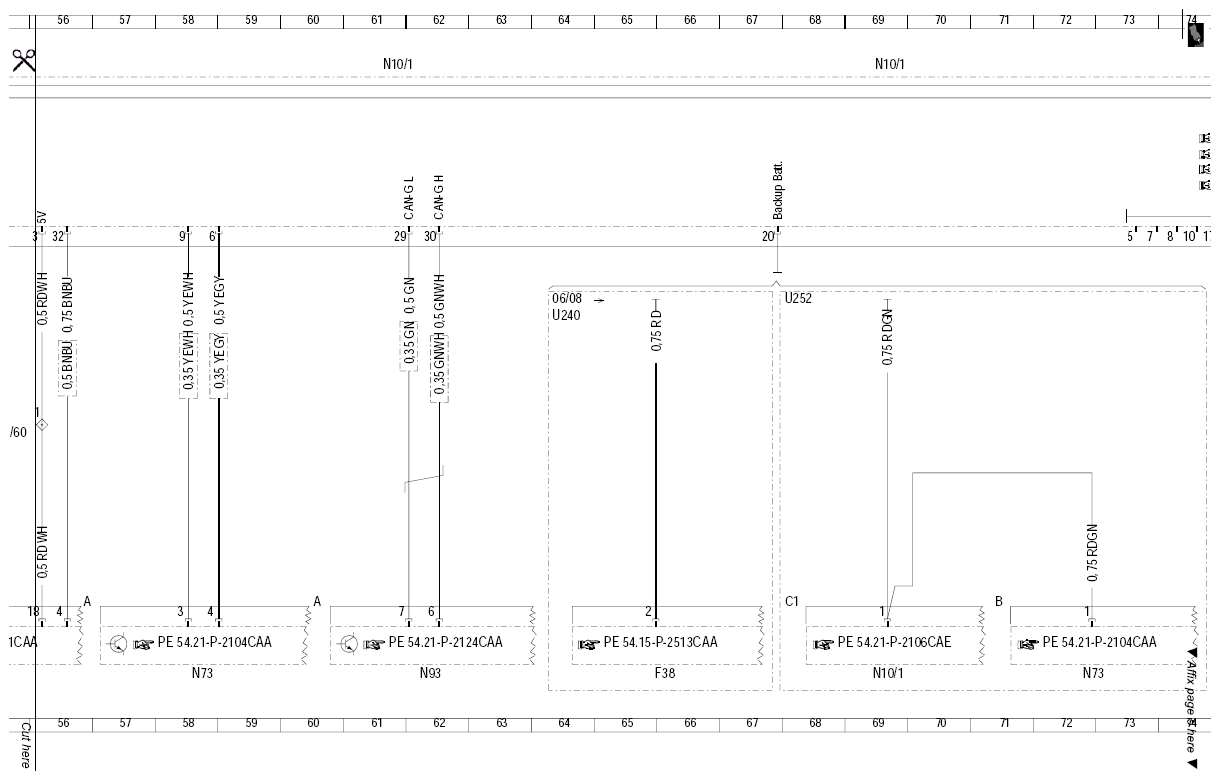

Fig 4: Front SAM Control Unit With Fuse And Relay Module Wiring Diagram (4 Of 5)
G07638524Courtesy of MERCEDES-BENZ USA

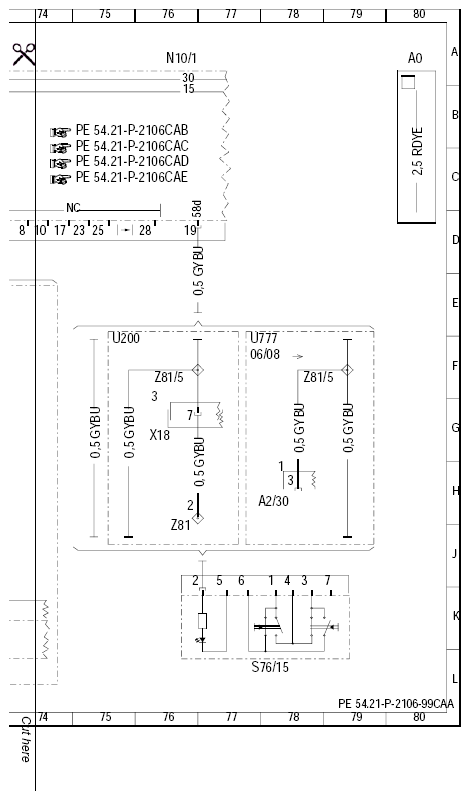

Fig 5: Front SAM Control Unit With Fuse And Relay Module Wiring Diagram (5 Of 5)
G07638525Courtesy of MERCEDES-BENZ USA
