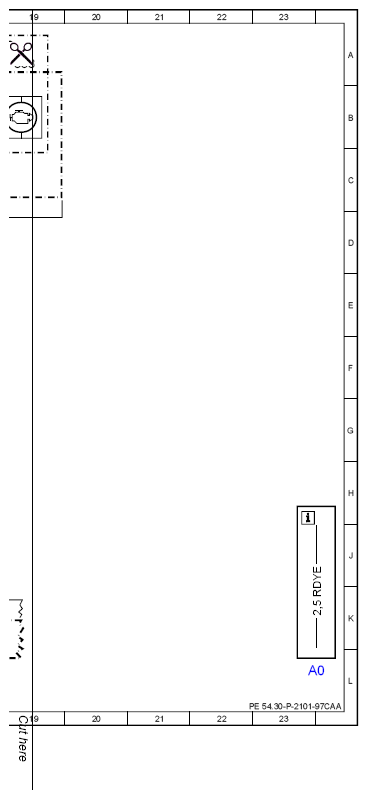

| A0 |
Color code key |
23L |

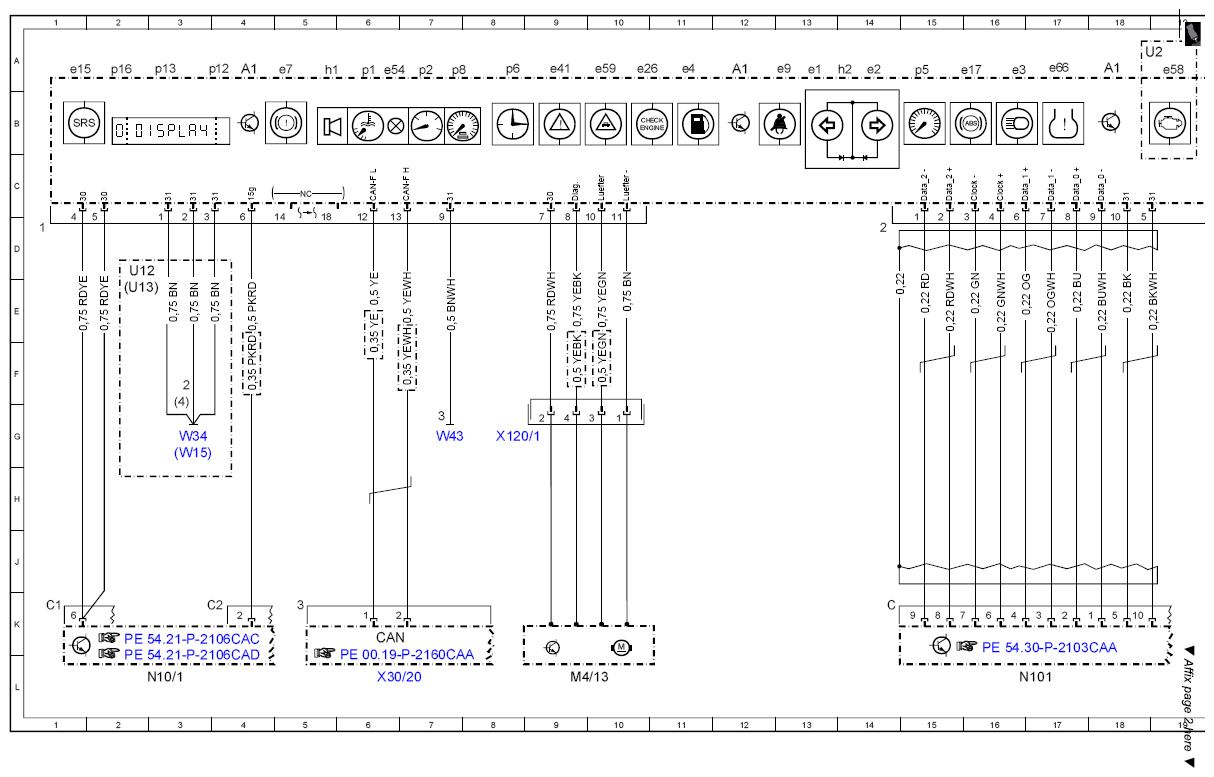

| A1 |
Instrument cluster |
4A |
| A1 |
Instrument cluster |
12A |
| A1 |
Instrument cluster |
18A |
| A1e1 |
Left turn signal indicator lamp |
13A |
| A1e15 |
Airbag indicator and warning lamp |
1A |
| A1e17 |
ABS indicator lamp |
16A |
| A1e2 |
Right turn signal indicator lamp |
14A |
| A1e26 |
"CHECK ENGINE" MIL |
10A |
| A1e3 |
High beam indicator lamp |
16A |
| A1e4 |
Fuel reserve indicator lamp |
11A |
| A1e41 |
ESP warning lamp |
9A |
| A1e54 |
Coolant temperature warning lamp |
6A |
| A1e58 |
Engine diagnosis indicator lamp |
19A |
| A1e59 |
DTR warning lamp |
10A |
| A1e66 |
Tire pressure monitor warning lamp |
17A |
| A1e7 |
Brake fluid warning lamp |
5A |
| A1e9 |
Seat belt warning lamp |
13A |
| A1h1 |
Warning buzzer |
5A |
| A1h2 |
Audible turn signal indicator |
14A |
| A1p1 |
Coolant temperature gauge |
6A |
| A1p12 |
Gear indicator |
4A |
| A1p13 |
Multifunction display |
3A |
| A1p2 |
Fuel level and reserve indicator |
7A |
| A1p5 |
Tachometer |
15A |
| A1p6 |
Electronic clock |
2A |
| A1p6 |
Electronic clock |
8A |
| A1p8 |
Electronic speedometer |
7A |
| M4/13 |
Instrument cluster/COMAND display additional fan |
9L |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N101 |
Night vision assist control unit |
17L |
| U12 |
Valid for left-hand drive vehicles |
2D |
| U13 |
Valid for right-hand drive vehicles |
2E |
| U2 |
Valid for all except USA |
18A |
| W15 |
Power ground (electronics) |
3G |
| W34 |
Ground (left footwell) |
3G |
| W43 |
Ground (reference, image transmission systems) |
7G |
| X120/1 |
Instrument cluster/COMAND display additional fan separation point |
8G |
| X30/20 |
Central CAN voltage distributor connector |
6L |
