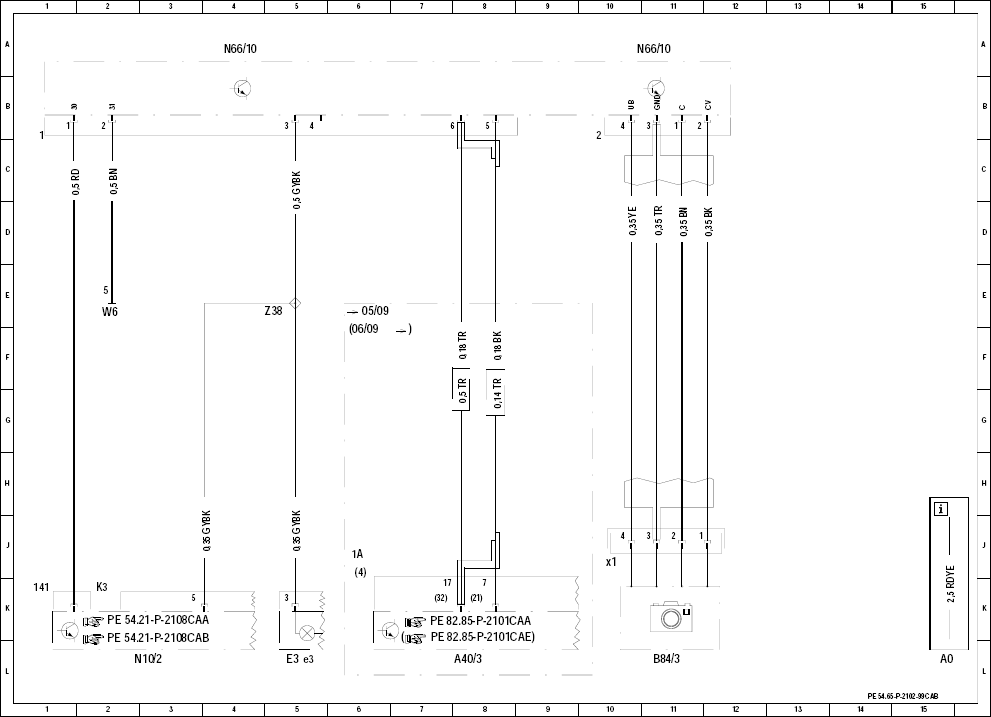

Wiring diagram for backup camera control unit - PE54.65-P-2102-99CAB
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 15L |
| A40/3 | COMAND control unit | 7L |
| B84/3 | Backup camera | 10L |
| B84/3x1 | Backup camera connector | 9J |
| E3 | Left taillamp | 5L |
| E3e3 | Left backup lamp | 5L |
| N10/2 | Rear SAM control module with fuse and relay module | 2L |
| N66/10 | Backup camera voltage supply module | 4A |
| N66/10 | Backup camera voltage supply module | 10A |
| W6 | Ground (left wheel well in trunk) | 2E |
| Z38 | Reversing lamp connector sleeve | 4E |
