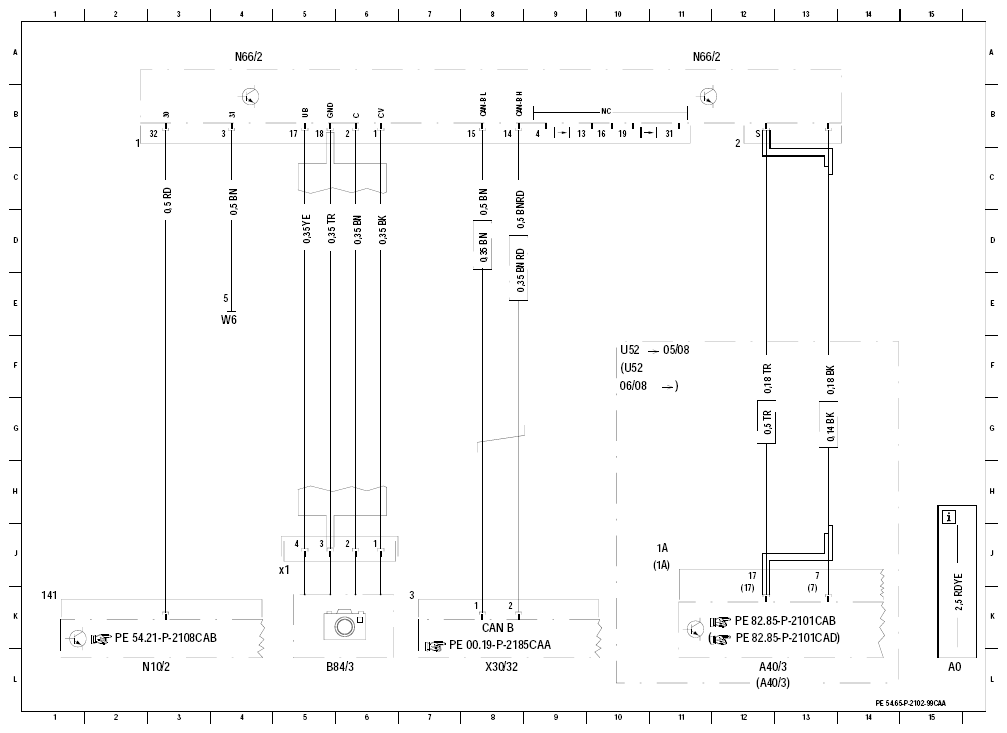

Wiring diagram for backup camera control unit - PE54.65-P-2102-99CAA
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 15L |
| A40/3 | COMAND control unit | 12L |
| B84/3 | Backup camera | 5L |
| B84/3x1 | Backup camera connector | 4J |
| N10/2 | Rear SAM control module with fuse and relay module | 2L |
| N66/2 | Reverse camera control module | 4A |
| N66/2 | Reverse camera control module | 11A |
| U52 | Valid for {{Japan}} | 10F |
| U54 | Valid for all (except {{Japan}} | 10F |
| W6 | Ground (left wheel well in trunk) | 4E |
| X30/32 | Left interior CAN/FFS [RBA] voltage distributor connector | 8L |
