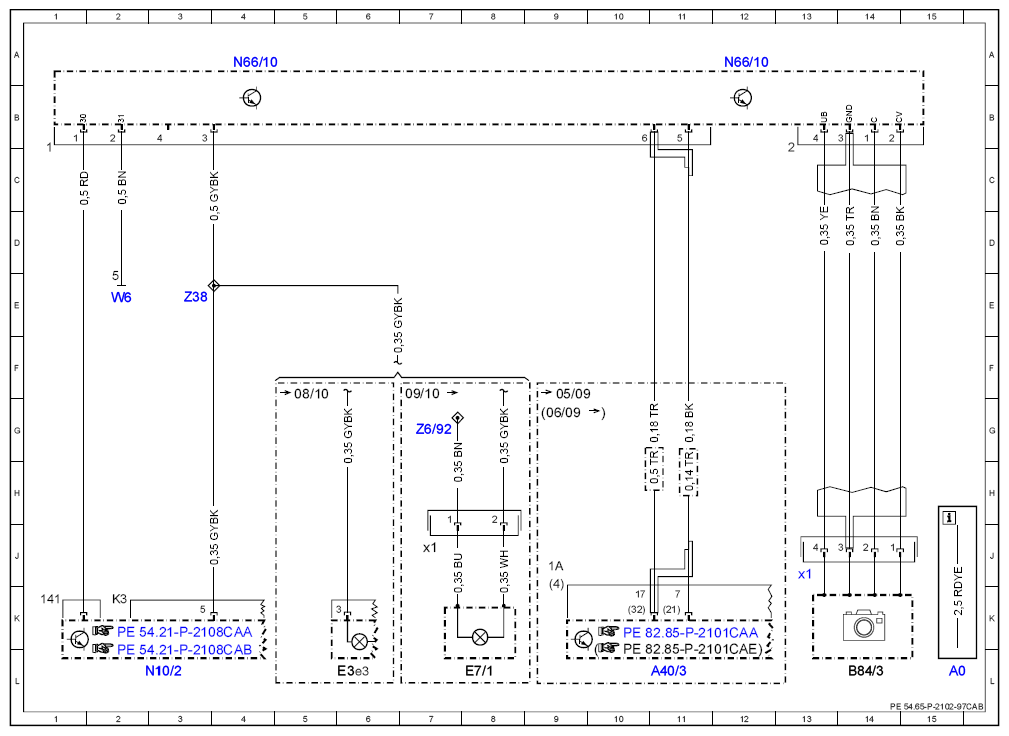

| A0 |
Color code key |
15L |
| A40/3 |
COMAND control unit |
11L |
| B84/3 |
Backup camera |
14L |
| B84/3x1 |
Backup camera connector |
13J |
| E3 |
Left taillamp |
6L |
| E3e3 |
Left backup lamp |
6L |
| E7/1 |
Left backup lamp |
8L |
| E7/1x1 |
Left backup lamp connector |
7J |
| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N66/10 |
Backup camera voltage supply module |
4A |
| N66/10 |
Backup camera voltage supply module |
12A |
| W6 |
Ground (left wheelhouse in luggage compartment) |
2E |
| Z38 |
Backup lamp connector sleeve |
3E |
| Z6/92 |
Trunk lid ground connector sleeve |
7G |
