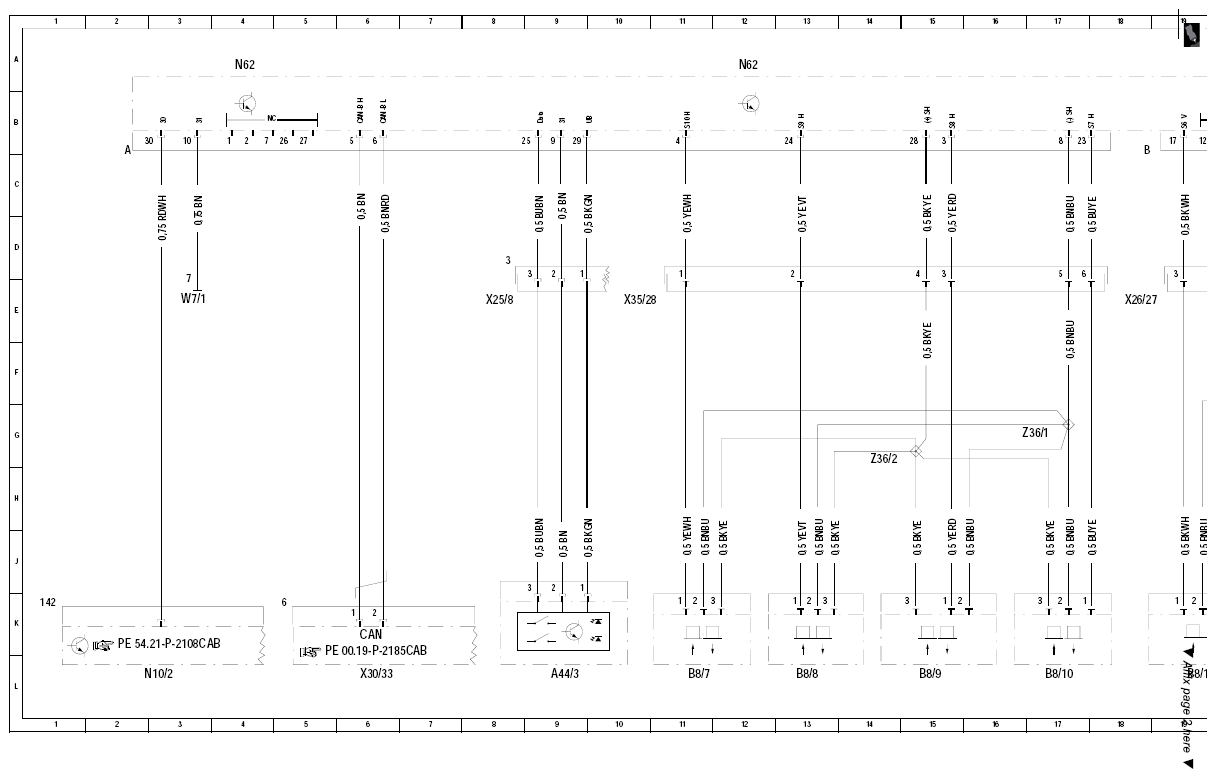

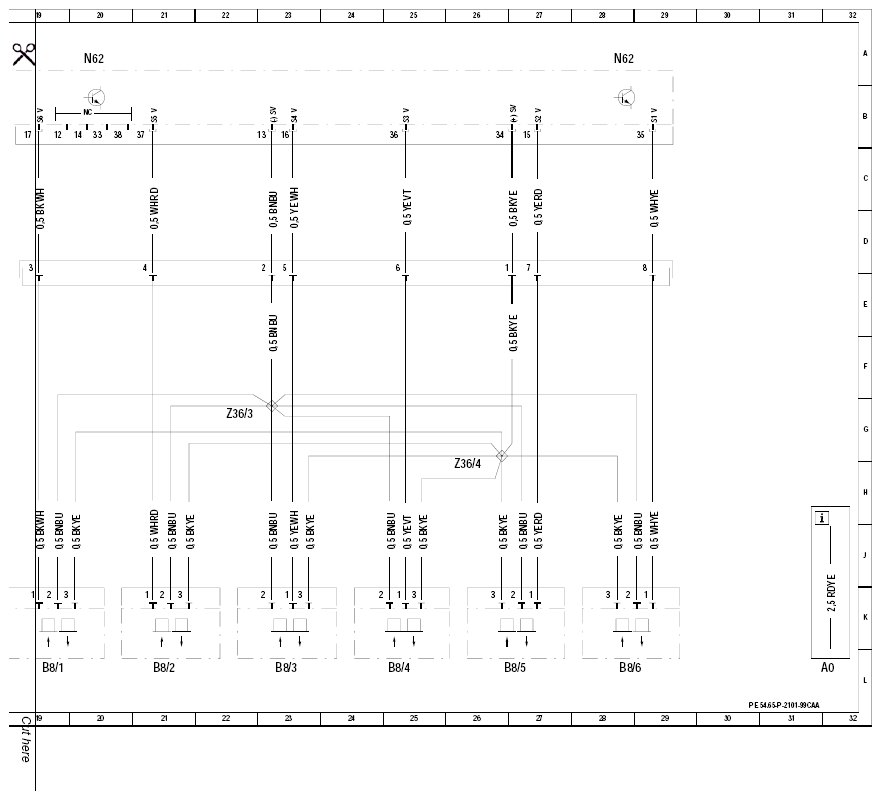

| A0 |
Explanation of color codes |
31L |
| A44/3 |
PTS warning display, rear |
9L |
| B8/1 |
Outer left front PTS ultrasonic sensor |
19L |
| B8/10 |
Outer left rear PTS ultrasonic sensor |
17L |
| B8/2 |
Center left front PTS ultrasonic sensor |
21L |
| B8/3 |
Inner left front PTS ultrasonic sensor |
23L |
| B8/4 |
Inner right front PTS ultrasonic sensor |
25L |
| B8/5 |
Center right front PTS ultrasonic sensor |
26L |
| B8/6 |
Outer right front PTS ultrasonic sensor |
28L |
| B8/7 |
Outer right rear PTS ultrasonic sensor |
11L |
| B8/8 |
Inner right rear PTS ultrasonic sensor |
13L |
| B8/9 |
Inner left rear PTS ultrasonic sensor |
15L |
| N10/2 |
Rear SAM control module with fuse and relay module |
2L |
| N62 |
PTS control module |
4A |
| N62 |
PTS control module |
12A |
| N62 |
PTS control module |
20A |
| N62 |
PTS control module |
28A |
| W7/1 |
Ground (right taillamp in trunk) |
3E |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
8E |
| X26/27 |
PTS connector, front bumper |
18E |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
6L |
| X35/28 |
PTS connector, rear bumper |
10E |
| Z36/1 |
Rear PTS sensor ground connector sleeve |
16G |
| Z36/2 |
Rear PTS sensor voltage supply connector sleeve |
14H |
| Z36/3 |
Front PTS sensor ground connector sleeve |
22G |
| Z36/4 |
Front PTS sensor voltage supply connector sleeve |
26H |
