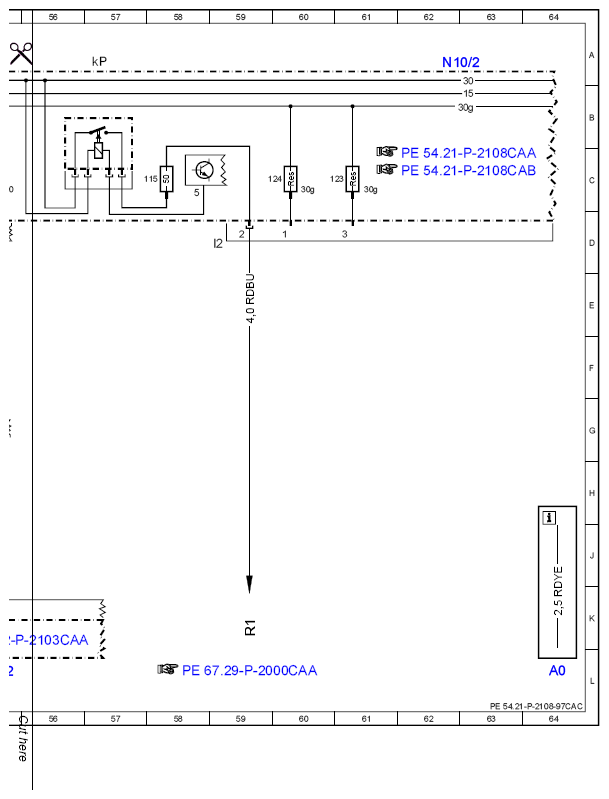

| A0 |
Color code key |
64L |

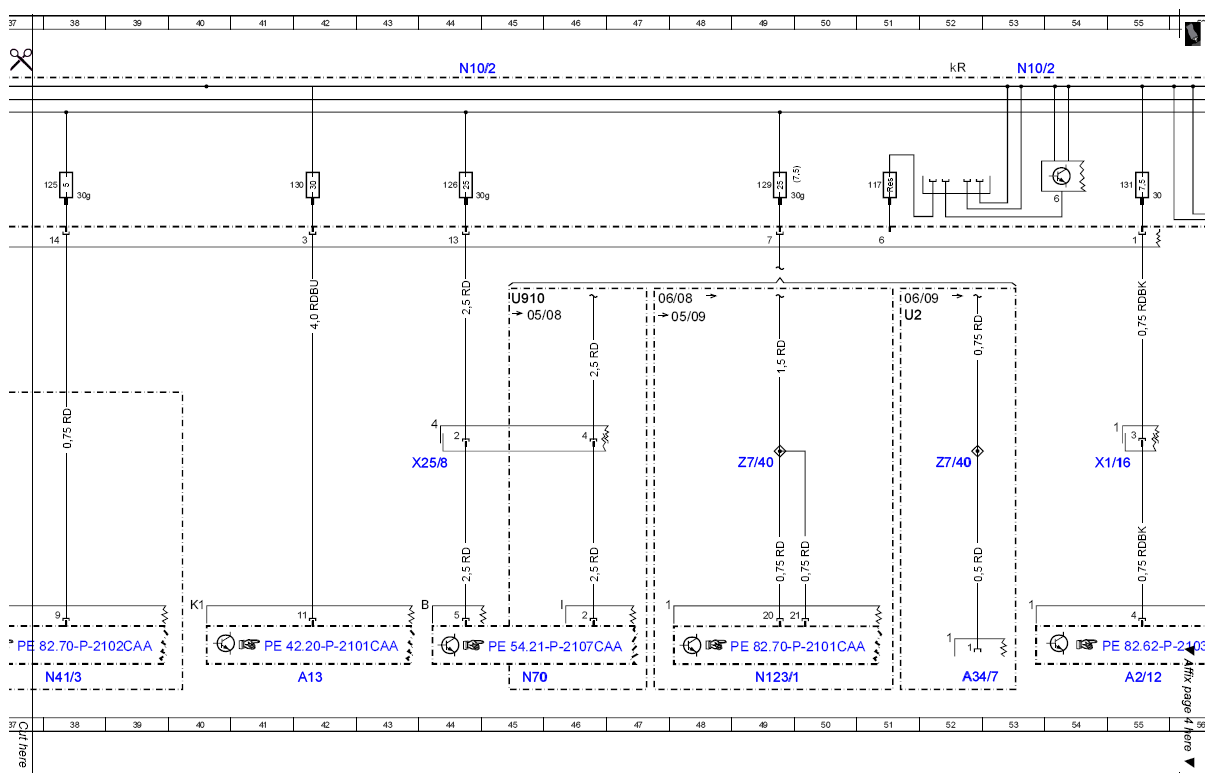

| A13 |
Electric parking brake control unit |
42L |
| A2/12 |
Rear window antenna amplifier module |
55L |
| A34/7 |
Bluetooth module |
52L |

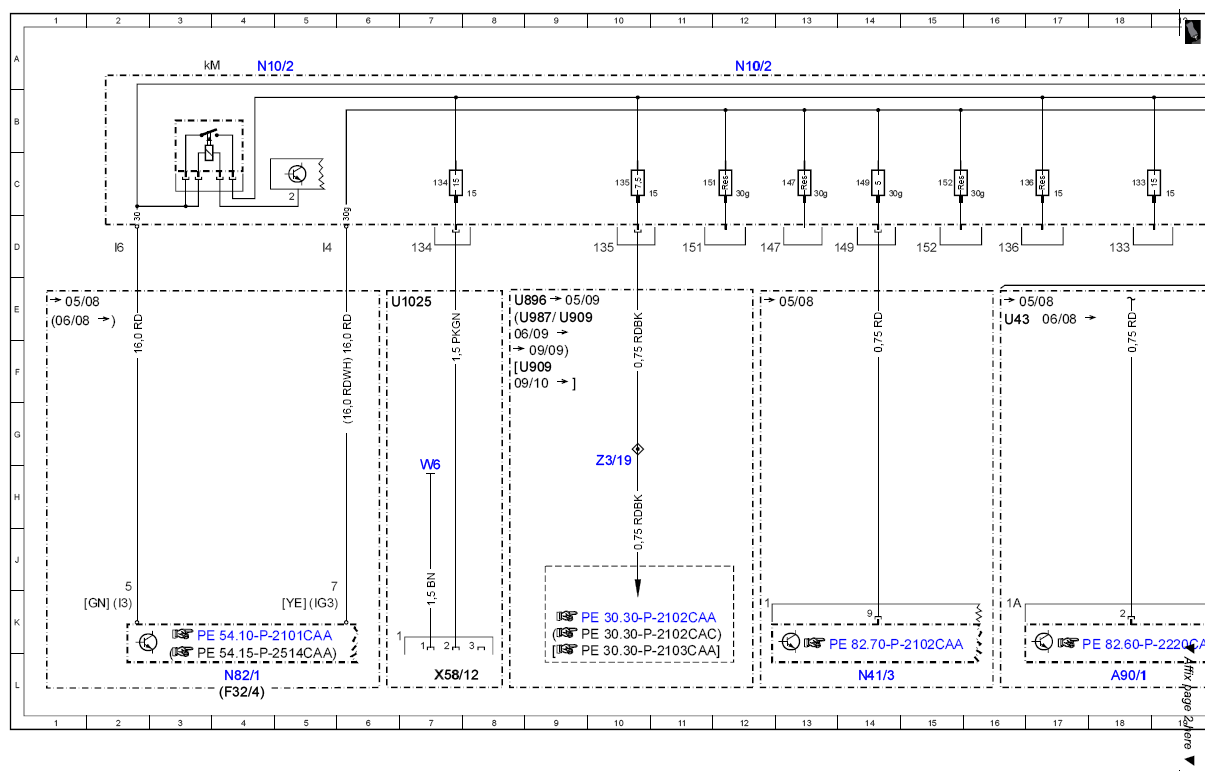

| A90/1 |
TV combination tuner (analog/digital) |
18L |
| F32/4 |
Interior prefuse box |
4L |

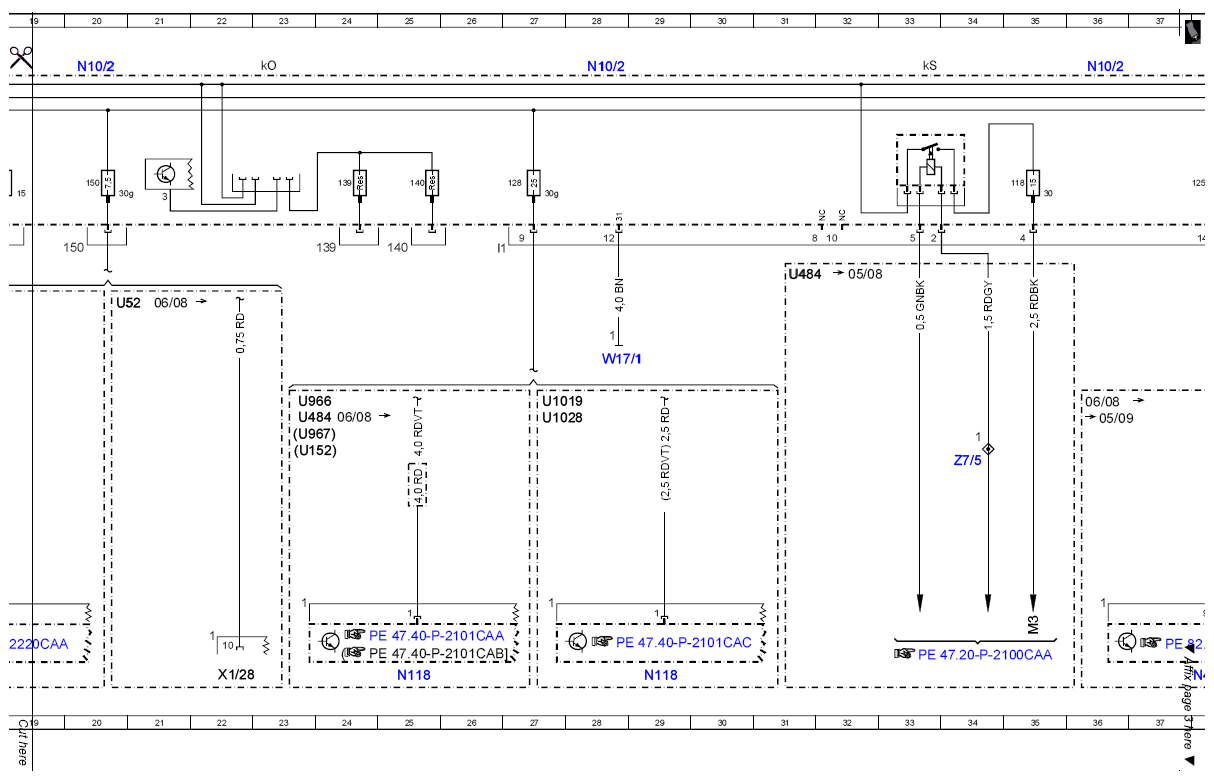

| M3 |
Fuel pump (FP) |
35K |
| N10/2 |
Rear SAM control unit with fuse and relay module |
12A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
4A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
20A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
28A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
36A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
44A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
53A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
62A |
| N10/2f115 |
Fuse 115 |
57C |
| N10/2f117 |
Fuse 117 |
51C |
| N10/2f118 |
Fuse 118 |
35C |
| N10/2f123 |
Fuse 123 |
60C |
| N10/2f124 |
Fuse 124 |
59C |
| N10/2f125 |
Fuse 125 |
38C |
| N10/2f126 |
Fuse 126 |
44C |
| N10/2f128 |
Fuse 128 |
27C |
| N10/2f129 |
Fuse 129 |
49C |
| N10/2f130 |
Fuse 130 |
41C |
| N10/2f131 |
Fuse 131 |
55C |
| N10/2f133 |
Fuse 133 |
18C |
| N10/2f134 |
Fuse 134 |
7C |
| N10/2f135 |
Fuse 135 |
10C |
| N10/2f136 |
Fuse 136 |
16C |
| N10/2f139 |
Fuse 139 |
24C |
| N10/2f140 |
Fuse 140 |
25C |
| N10/2f147 |
Fuse 147 |
13C |
| N10/2f149 |
Fuse 149 |
14C |
| N10/2f150 |
Fuse 150 |
20C |
| N10/2f151 |
Fuse 151 |
11C |
| N10/2f152 |
Fuse 152 |
15C |
| N10/2kM |
Circuit 15 (2)/spare 1 relay (changeover contact) |
3A |
| N10/2kO |
Power outlet relay |
23A |
| N10/2kP |
Heated rear window relay |
57A |
| N10/2kR |
Cigar lighter relay |
52A |
| N10/2kS |
Fuel pump relay |
33A |
| N118 |
Fuel pump control unit |
29L |
| N118 |
Fuel pump control unit |
25L |
| N123/1 |
Universal Portable CTEL Interface (UPCI [UHI]) control unit |
49L |
| N41/3 |
Voice control system (VCS [SBS]) control unit |
14L |
| N41/3 |
Voice control system (VCS [SBS]) control unit |
38L |
| N70 |
Overhead control panel control unit |
45L |
| N82/1 |
Vehicle power supply control unit |
4L |
| R1 |
Heated rear window |
59K |
| U1019 |
Valid for engine 278 |
27G |
| U1025 |
Valid for 12 V socket |
6E |
| U1028 |
Valid for engine 157 |
27G |
| U152 |
Valid for engine 156 |
23G |
| U2 |
Valid for all except{{USA}} |
51E |
| U43 |
Valid for ECE |
16E |
| U484 |
Valid for M273 ME |
23G |
| U484 |
Valid for M273 ME |
31E |
| U52 |
Valid for {{Japan}} |
20E |
| U896 |
Valid for City Assist System |
8E |
| U909 |
Valid for DISTRONIC PLUS |
9E |
| U909 |
Valid for DISTRONIC PLUS |
8F |
| U910 |
Valid for Blind Spot Assist |
45E |
| U966 |
Valid for engine 275.953 |
23G |
| U967 |
Valid for engine 275.982 |
23G |
| U987 |
Valid for Distronic Plus (light) |
8E |
| W17/1 |
Ground (left rear seat) |
28F |
| W6 |
Ground (left wheelhouse in luggage compartment) |
7H |
| X1/16 |
Roof antenna connector |
55G |
| X1/28 |
TV/tuner connector |
22L |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
44H |
| X58/12 |
Luggage compartment socket |
7L |
| Z3/19 |
Circuit 15 connector sleeve (fused) (PTS) |
10G |
| Z7/40 |
Tml. 30 connector sleeve |
49G |
| Z7/40 |
Tml. 30 connector sleeve |
52G |
| Z7/5 |
Circuit 87 connector sleeve |
34G |
