| 1 |
Blind spot assist, status |
20H |
| 1 |
Blind spot assist, status |
13G |
| 2 |
Circuit 61, status |
13E |
| 3 |
Wheel speed, signal |
9F |
| 3 |
Wheel speed, signal |
3D |
| 4 |
Wheel rotation direction, signal |
3D |
| 4 |
Wheel rotation direction, signal |
9F |
| 5 |
GPS, signal |
29D |
| 5 |
GPS, signal |
13G |
| 5 |
GPS, signal |
21F |
| 6 |
Circuit 15, status |
12H |
| 7 |
Switch on/off, signal |
8J |
| 7 |
Switch on/off, signal |
20H |
| 7 |
Switch on/off, signal |
8K |
| 7 |
Switch on/off, signal |
14G |
| 8 |
Blind Spot Assist readiness and warning indicator, request |
24K |
| 8 |
Blind Spot Assist readiness and warning indicator, request |
18G |
| 9 |
Blind Spot Assist readiness and warning indicator, actuation |
28J |
| 10 |
Combination switch, status |
10E |
| 10 |
Combination switch, status |
9B |
| 11 |
Instrument cluster, message |
20J |
| 11 |
Instrument cluster, message |
17G |
| 12 |
Warning tone, request |
20J |
| 12 |
Warning tone, request |
17G |
| 13 |
Close range radar sensors, signal |
10H |

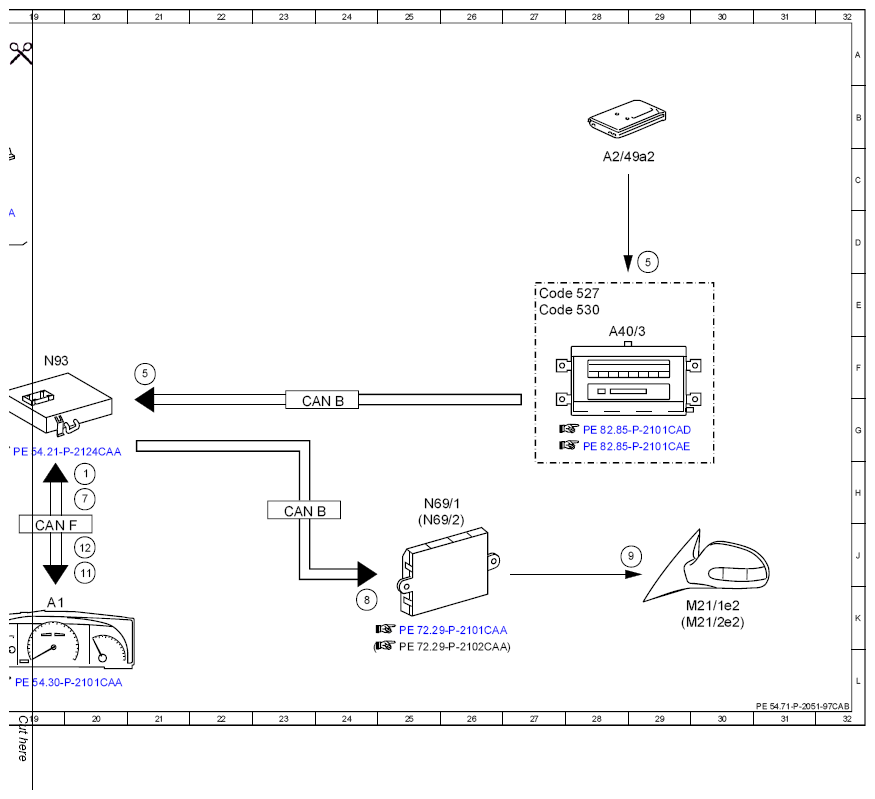

| A1 |
Instrument cluster |
19K |
| A2/49a2 |
GPS antenna |
28C |
| A40/3 |
COMAND control unit |
28E |
| A86/2b1 |
Right outer radar sensor, rear bumper |
7K |
| A86/2b2 |
Right inner radar sensor, rear bumper |
7J |
| A86/2b3 |
Left inner radar sensor, rear bumper |
7J |
| A86/2b4 |
Left outer radar sensor, rear bumper |
7L |
| CAN B |
Interior CAN |
23G |
| CAN B |
Interior CAN |
23H |
| CAN E |
Chassis CAN |
11D |
| CAN E |
Chassis CAN |
7F |
| CAN E |
Chassis CAN |
15G |
| CAN E |
Chassis CAN |
11H |
| CAN E |
Chassis CAN |
14F |
| CAN F |
Central CAN |
19J |
| CAN S |
Sensor CAN |
10H |
| Code 527 |
COMAND APS (with navigation) |
27E |
| Code 530 |
COMAND APS USA (with navigation) |
27E |
| L6/1 |
Left front RPM sensor |
2F |
| L6/2 |
Right front RPM sensor |
2F |
| L6/3 |
Left rear RPM sensor |
2G |
| L6/4 |
right rear RPM sensor |
2G |
| M21/1e2 |
Left Blind Spot Assist readiness and warning indicator |
30K |
| M21/2e2 |
Right Blind Spot Assist readiness and warning indicator |
30K |
| N3/10 |
ME-SFI [ME] control unit |
17B |
| N3/10 |
ME-SFI [ME] control unit |
15B |
| N47-5 |
ESP control unit |
4D |

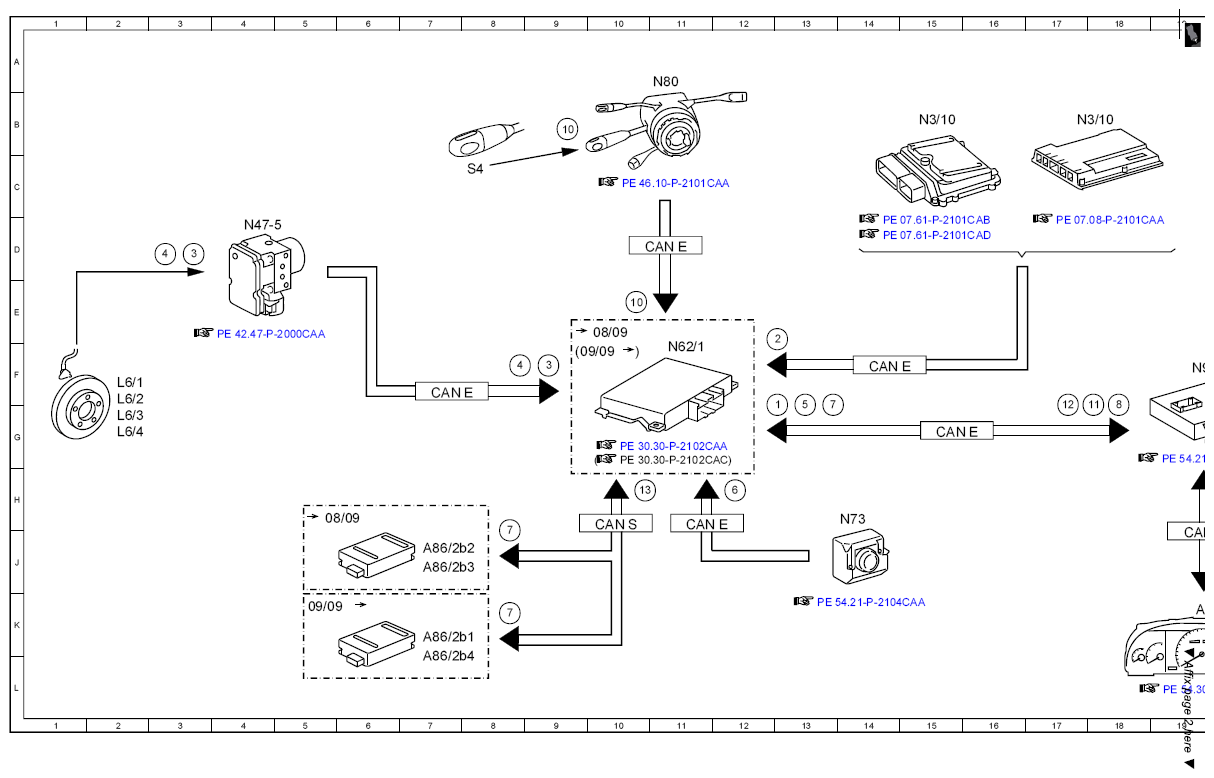

| N62/1 |
Radar sensors control unit (SGR) |
11F |
| N69/1 |
Left door control unit |
25H |
| N69/2 |
Right door control unit |
25J |
| N73 |
EIS [EZS] control unit |
14H |
| N80 |
Steering column module |
11A |
| N93 |
Central gateway control unit |
19F |
| S4 |
Combination switch |
8C |
