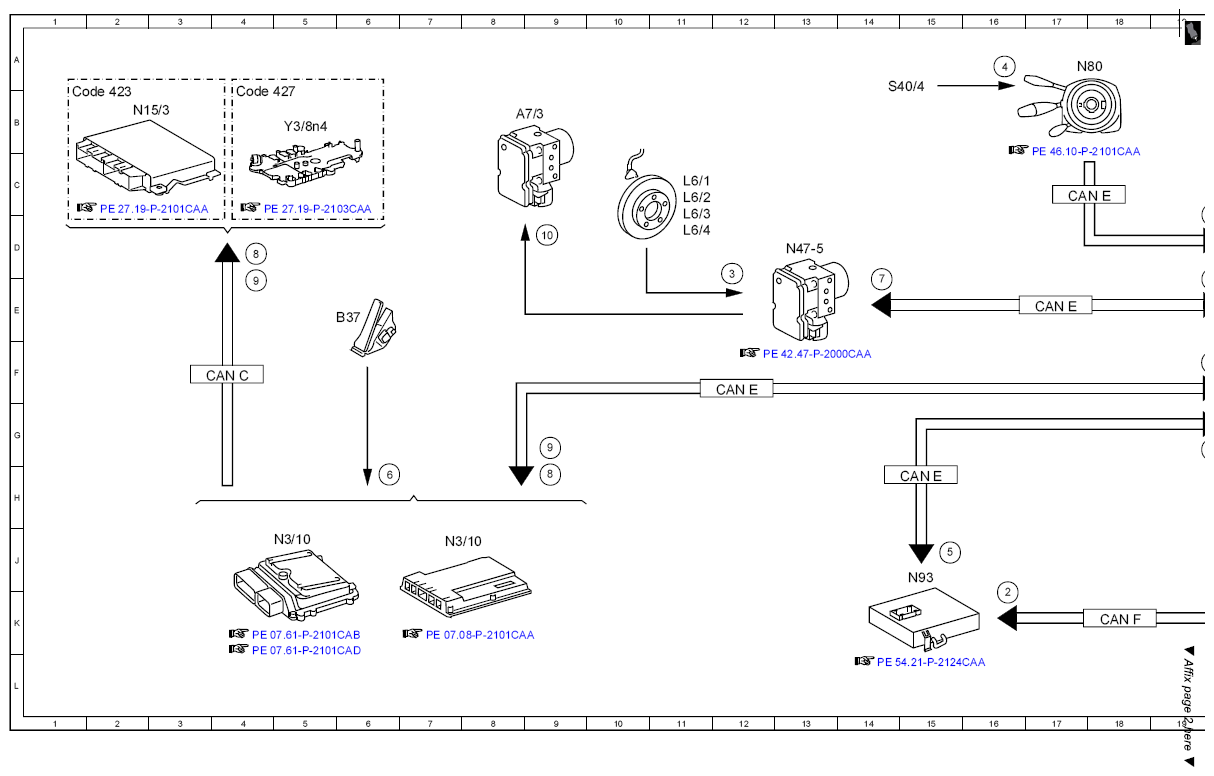

| 1 |
Circuit 61, status |
20F |
| 2 |
Permanent limiter, status |
19G |
| 2 |
Permanent limiter, status |
16K |
| 3 |
Wheel speed, signal |
12D |
| 3 |
Wheel speed, signal |
20E |
| 4 |
CC [TPM] push-button switch, status |
19D |
| 4 |
CC [TPM] push-button switch, status |
16A |
| 5 |
Accelerator pedal sensor, signal |
20K |
| 5 |
Accelerator pedal sensor, signal |
15J |
| 6 |
Cruise control display, actuation |
6H |
| 7 |
Active brake intervention, request |
14E |
| 8 |
Shift stage, request |
4D |
| 8 |
Shift stage, request |
9H |
| 9 |
Stage limitation, request |
4E |
| 9 |
Stage limitation, request |
9G |
| 10 |
Service brake braking torque, actuation |
9D |

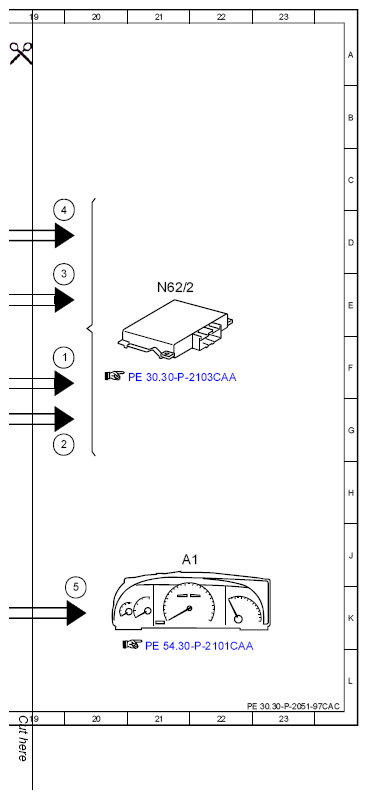

| A1 |
Instrument cluster |
21J |
| A7/3 |
Traction system hydraulic unit |
8B |
| B37 |
Accelerator pedal sensor |
6E |
| CAN C |
Drive train CAN |
4F |
| CAN E |
Chassis CAN |
15H |
| CAN E |
Chassis CAN |
17C |
| CAN E |
Chassis CAN |
12F |
| CAN E |
Chassis CAN |
17E |
| CAN F |
Central CAN |
18K |
| Code 423 |
5-speed automatic transmission |
1B |
| Code 427 |
7-speed automatic transmission |
4B |
| L6/1 |
Left front RPM sensor |
11C |
| L6/2 |
Right front RPM sensor |
11C |
| L6/3 |
Left rear RPM sensor |
11D |
| L6/4 |
right rear RPM sensor |
11D |
| N15/3 |
ETC [EGS] control unit |
2B |
| N3/10 |
ME-SFI [ME] control unit |
7J |
| N3/10 |
ME-SFI [ME] control unit |
5J |
| N47-5 |
ESP control unit |
13D |
| N62/2 |
Video and radar sensor system control unit |
21E |
| N80 |
Steering column module |
17A |
| N93 |
Central gateway control unit |
15J |
| S40/4 |
CC [TPM] switch |
14B |
| Y3/8n4 |
Fully integrated transmission control (VGS) control unit |
5B |
