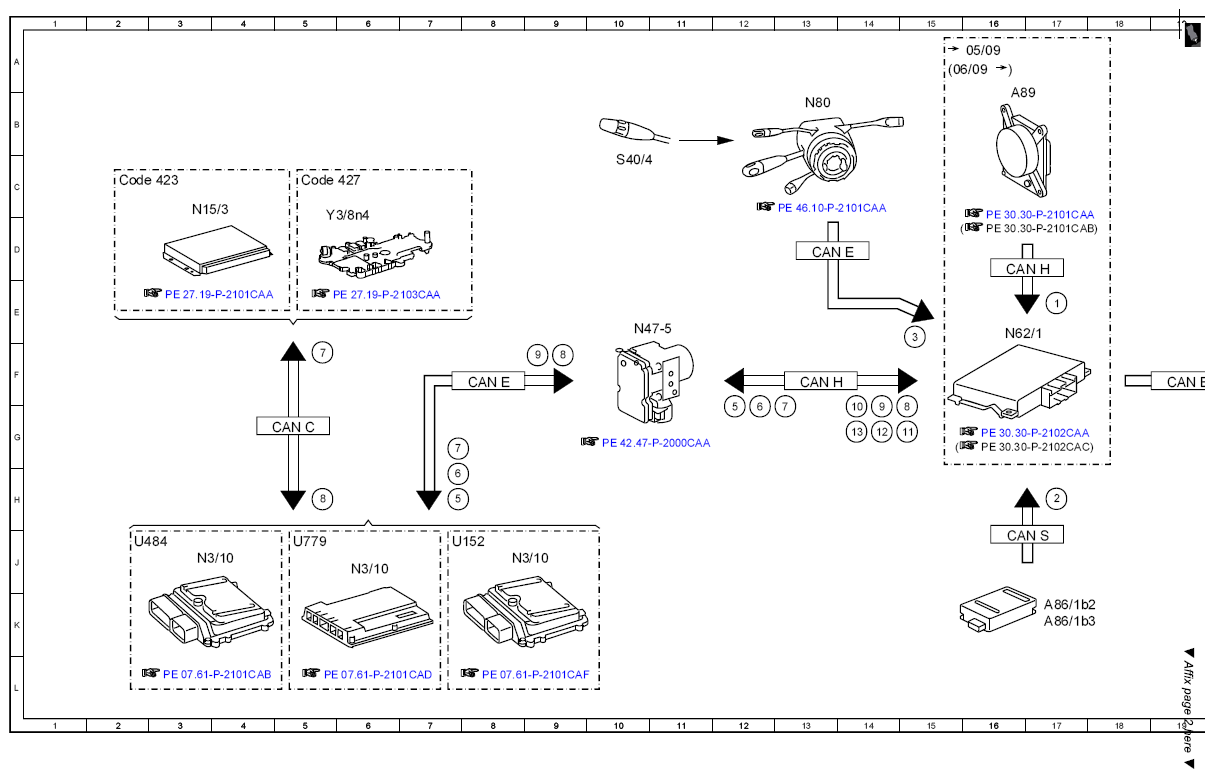

| 1 |
Far range radar sensor, signal |
17E |
| 2 |
Close range radar sensors, signal |
17H |
| 3 |
DISTRONIC, request |
15E |
| 4 |
Instrument cluster, message |
22J |
| 4 |
Instrument cluster, message |
20F |
| 5 |
Engine torque, increase request |
12G |
| 5 |
Engine torque, increase request |
7H |
| 6 |
Engine torque, reduce request |
12G |
| 6 |
Engine torque, reduce request |
7H |
| 7 |
Shift stage, request |
5F |
| 7 |
Shift stage, request |
13G |
| 7 |
Shift stage, request |
7G |
| 8 |
Gear range, status |
15G |
| 8 |
Gear range, status |
9F |
| 8 |
Gear range, status |
5H |
| 9 |
Accelerator pedal, status |
14G |
| 9 |
Accelerator pedal, status |
9F |
| 10 |
Vehicle speed, signal |
14G |
| 11 |
Service brake, status |
15G |
| 12 |
Parking brake, status |
14G |
| 13 |
ESP®, status |
14G |
| A1 |
Instrument cluster |
21J |
| A89 |
DTR control unit |
16B |
| CAN C |
Drive train CAN |
5G |
| CAN E |
Chassis CAN |
8F |
| CAN E |
Chassis CAN |
13D |
| CAN E |
Chassis CAN |
19F |
| CAN F |
Central CAN |
22H |
| CAN H |
Vehicle dynamics CAN |
13F |
| CAN H |
Vehicle dynamics CAN |
17D |
| CAN S |
Sensor CAN |
17J |
| Code 423 |
5-speed automatic transmission |
2C |
| Code 427 |
7-speed automatic transmission |
5C |
| N15/3 |
ETC [EGS] control unit |
3C |
| N3/10 |
ME-SFI [ME] control unit |
3J |
| N3/10 |
ME-SFI [ME] control unit |
8J |
| N3/10 |
ME-SFI [ME] control unit |
6J |
| N47-5 |
ESP control unit |
10E |
| N62/1 |
Radar sensors control unit (SGR) |
16E |
| N80 |
Steering column module |
13B |

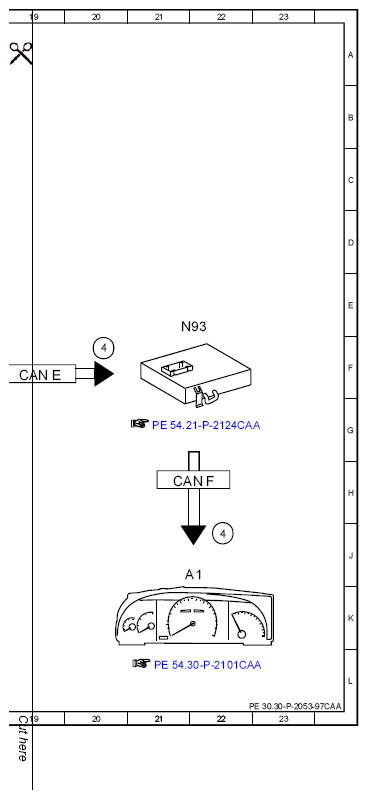

| N93 |
Central gateway control unit |
21E |
| S40/4 |
CC [TPM] switch |
10C |
| U152 |
Valid for engine 156 |
7J |
| U484 |
Valid for M273 ME |
2J |
| U779 |
Valid for engine 275 |
5J |
| Y3/8n4 |
Fully integrated transmission control (VGS) control unit |
6D |
