Home >> Mercedes Benz >> 2007 >> CL550 >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Throttle Control, Speed Control Systems -- Cl550 -- 216 Chassis >> Basic Knowledge >> Distronic Plus including BAS Plus and Park Assist, location of components - GF30.30-P-0004-01LE

Distronic Plus including BAS Plus and Park Assist, location of components - GF30.30-P-0004-01LE

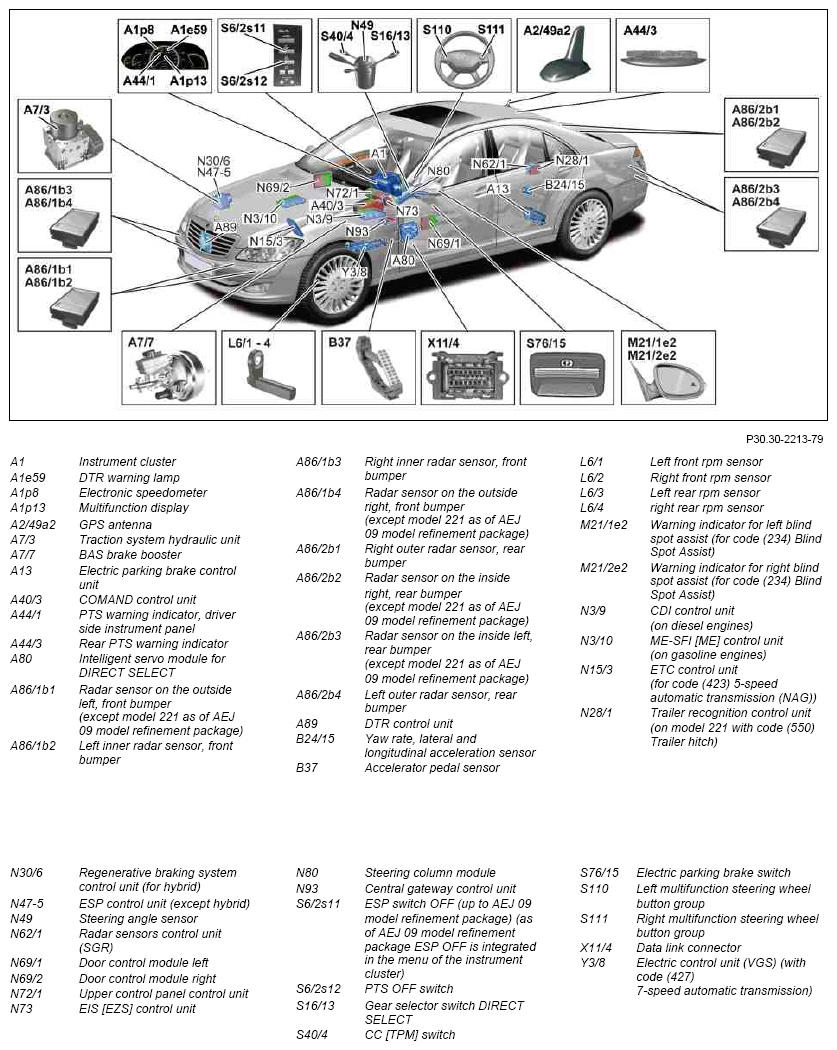

Fig 1: Distronic Plus Including BAS Plus And Park Assist Components Location
G07641033Courtesy of MERCEDES-BENZ USA
