Home >> Mercedes Benz >> 2007 >> CL550 >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Throttle Control, Speed Control Systems -- Cl550 -- 216 Chassis >> Basic Knowledge >> DISTRONIC PLUS including BAS Plus and Park Assist, block diagram - GF30.30-P-0004-05LE

DISTRONIC PLUS including BAS Plus and Park Assist, block diagram - GF30.30-P-0004-05LE

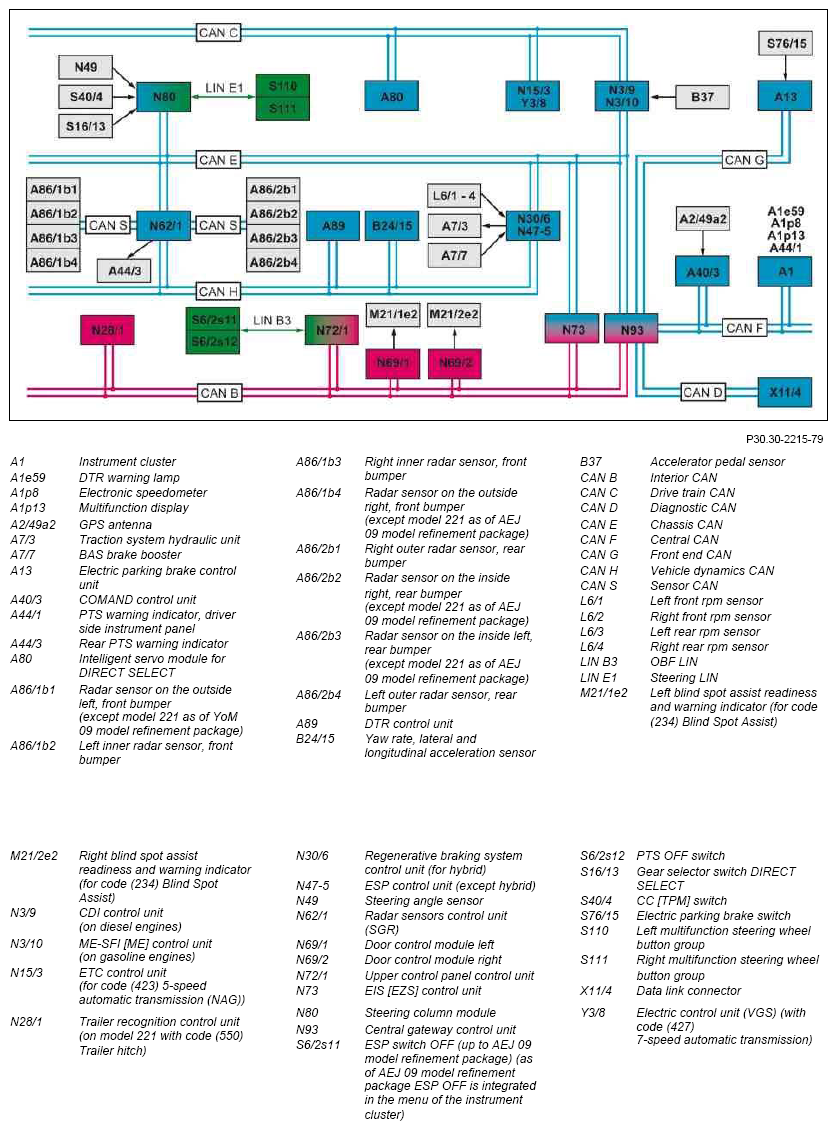

Fig 1: Distronic Plus Including BAS Plus And Park Assist Block Diagram

G07641040

Courtesy of MERCEDES-BENZ USA
