DISTRONIC PLUS incl. BAS PLUS and PRE-SAFE brake, block diagram - GF30.30-P-0006-01LE

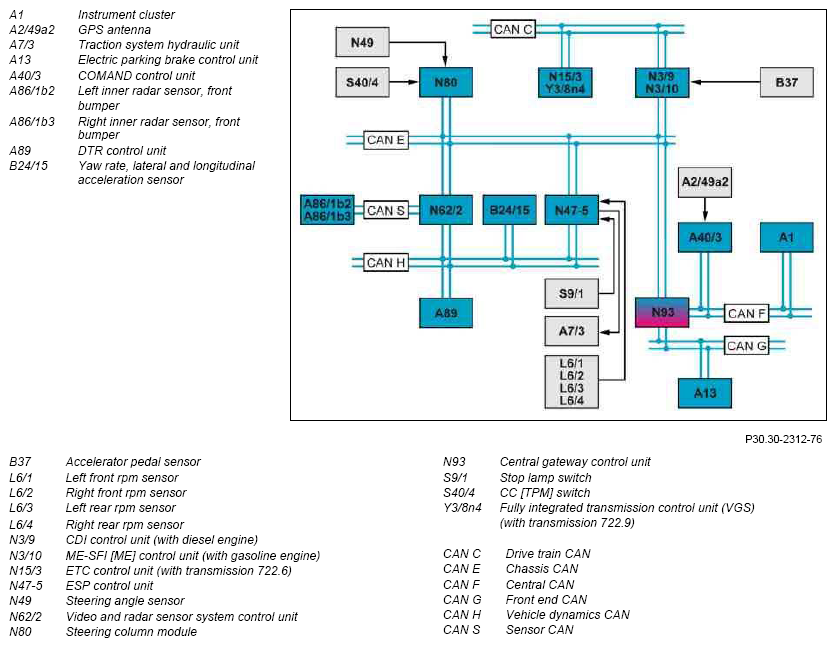

Fig 1: Distronic Plus Incl. BAS Plus And Pre-Safe Brake Block Diagram

G07641048

Courtesy of MERCEDES-BENZ USA
