DISTRONIC PLUS incl. BAS PLUS and PRE-SAFE brake Location of components - GF30.30-P-0006-02LE

Shown on model 221

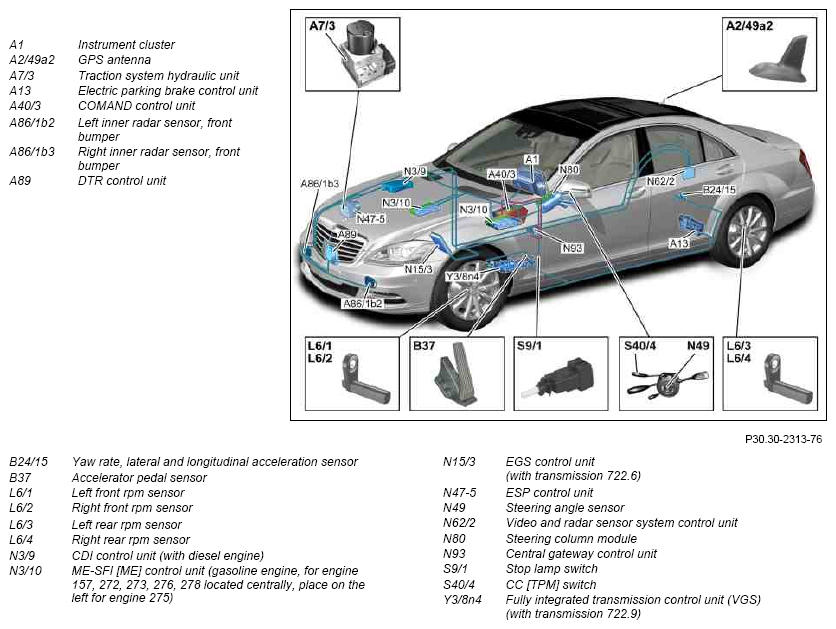

Fig 1: Distronic Plus Incl. BAS Plus And Pre-Safe Brake Components Location (Shown On Model 221)
G07641049Courtesy of MERCEDES-BENZ USA
