Cruise control (CC) block diagram - GF30.30-P-0001-08LE

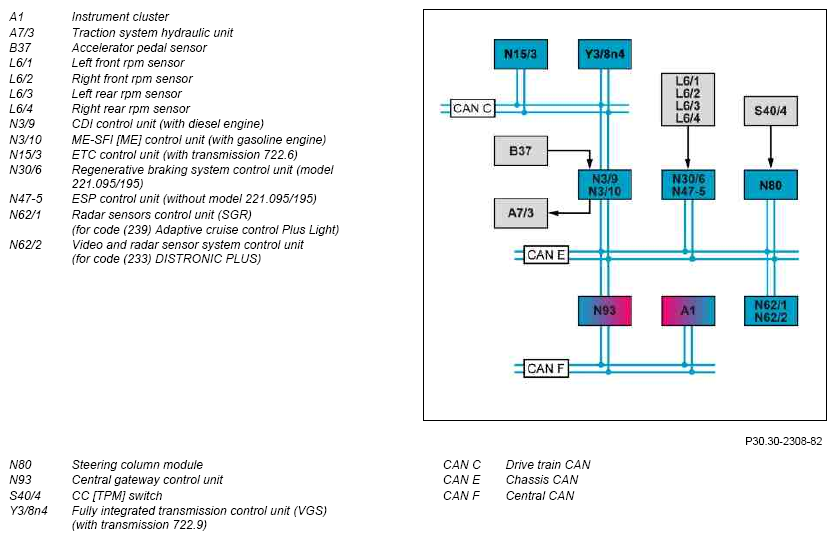

Fig 1: Cruise Control (CC) Block Diagram

G07641029

Courtesy of MERCEDES-BENZ USA
