Retrofit camera - AN54.65-P-0030-02SC

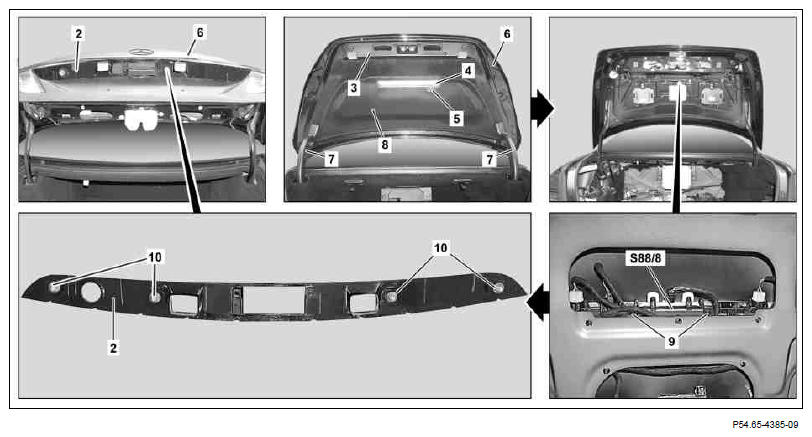

Fig 1: Identifying Hazard Warning Triangle, Holder, Paneling, Bracket Trim Piece And Trunk Lid

Courtesy of MERCEDES-BENZ USA

1. Remove license plate.
2. Take out hazard warning triangle (4) and remove holder (5).
3. Remove paneling (3)
4. Remove left and right hinge bracket trim piece (7).
5. Remove trim of trunk lid (8).
6. Remove screws (9) from trunk lid external operation switch on trunk lid (S88/8).
7. Unclip clips (10) for covering (2) starting at right and remove covering (2) from trunk lid (6).

   The cover (2) is no longer required.

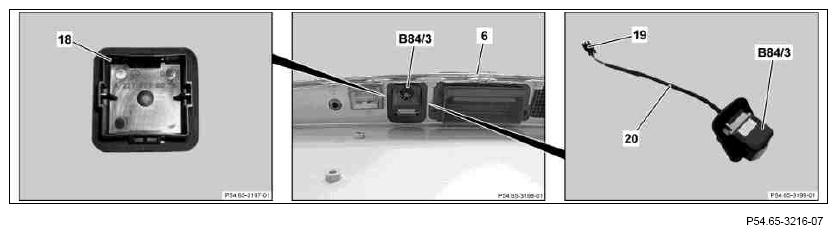

   Fig 2: Identifying Plug, Trunk Lid, Reversing Camera, Trunk Lid And Clip Reversing Camera

   Courtesy of MERCEDES-BENZ USA
8. Remove plug (18) from trunk lid (6).

   The plug (18) is no longer required.

9. Guide black 4-pin connector (19) and line (20) of reversing camera (B84/3) from outside into cutout in trunk lid (6) and clip reversing camera (B84/3) into trunk lid (6) as shown in picture.

Later, connect the black 4-pin connector (19) in the trunk lid (6) to the reversing camera wiring harness.
