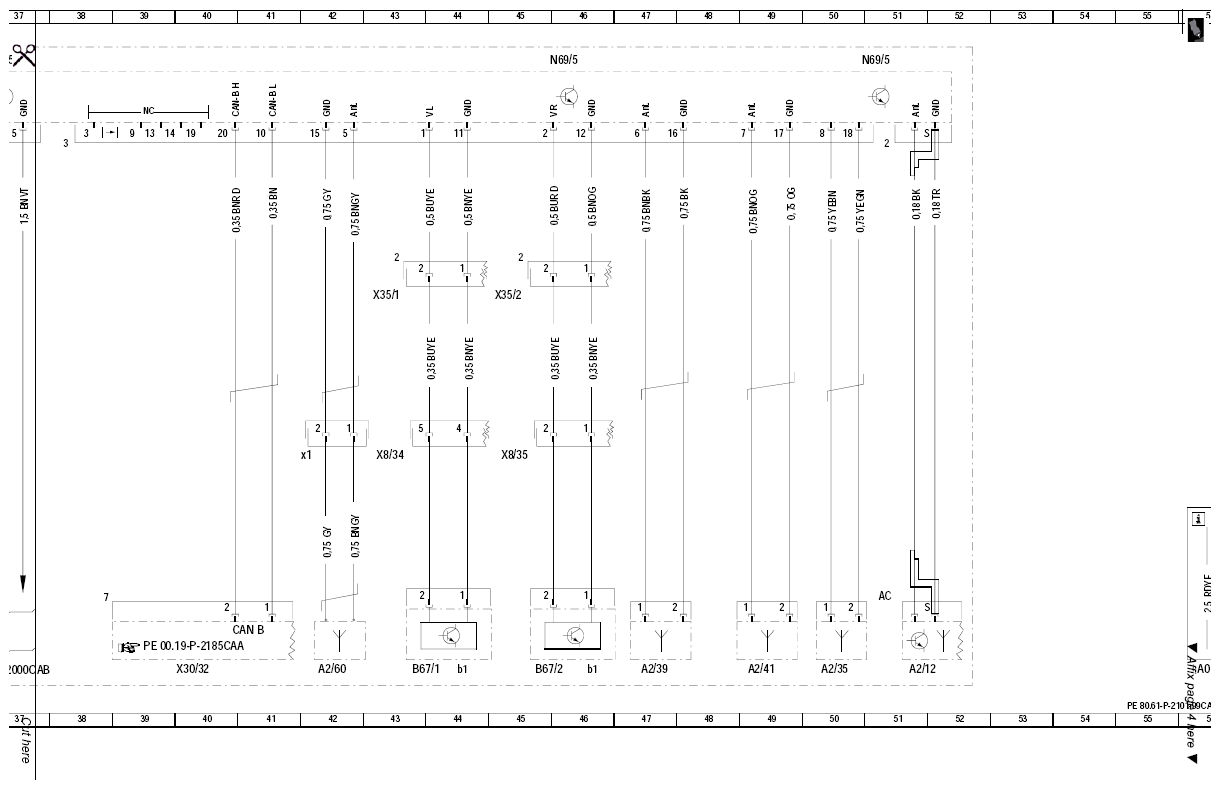

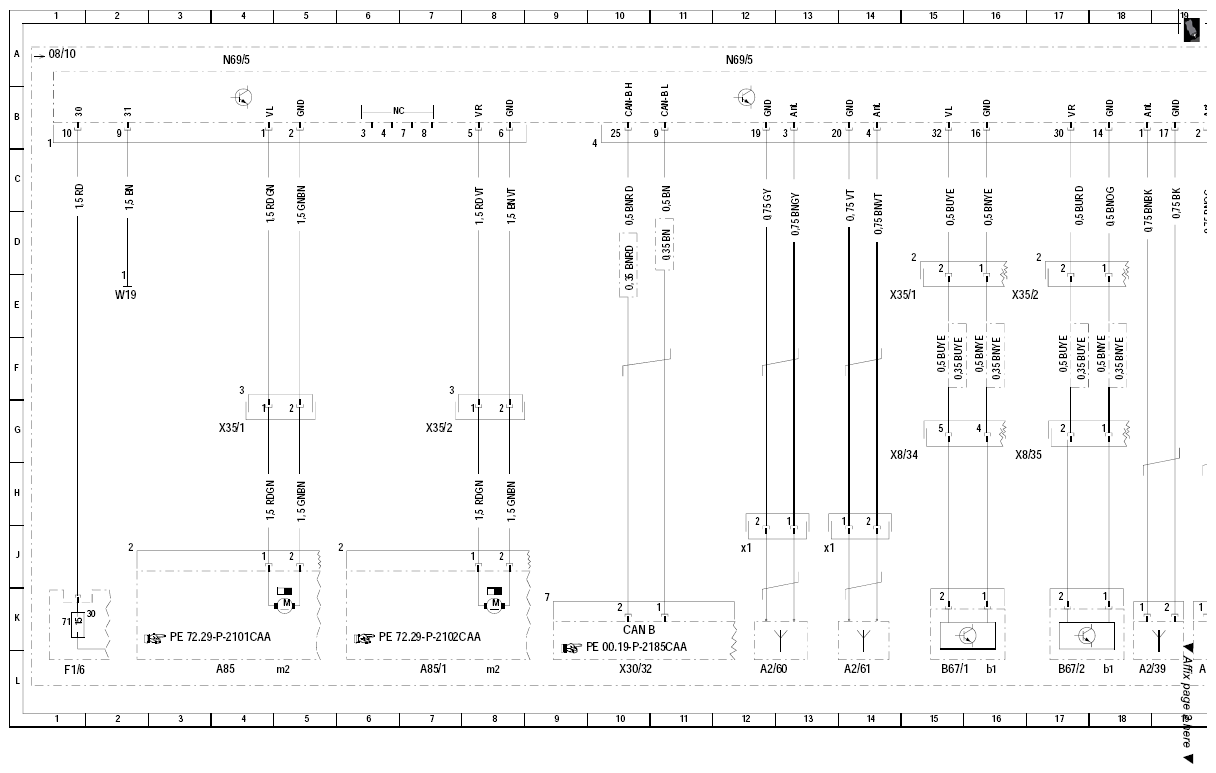

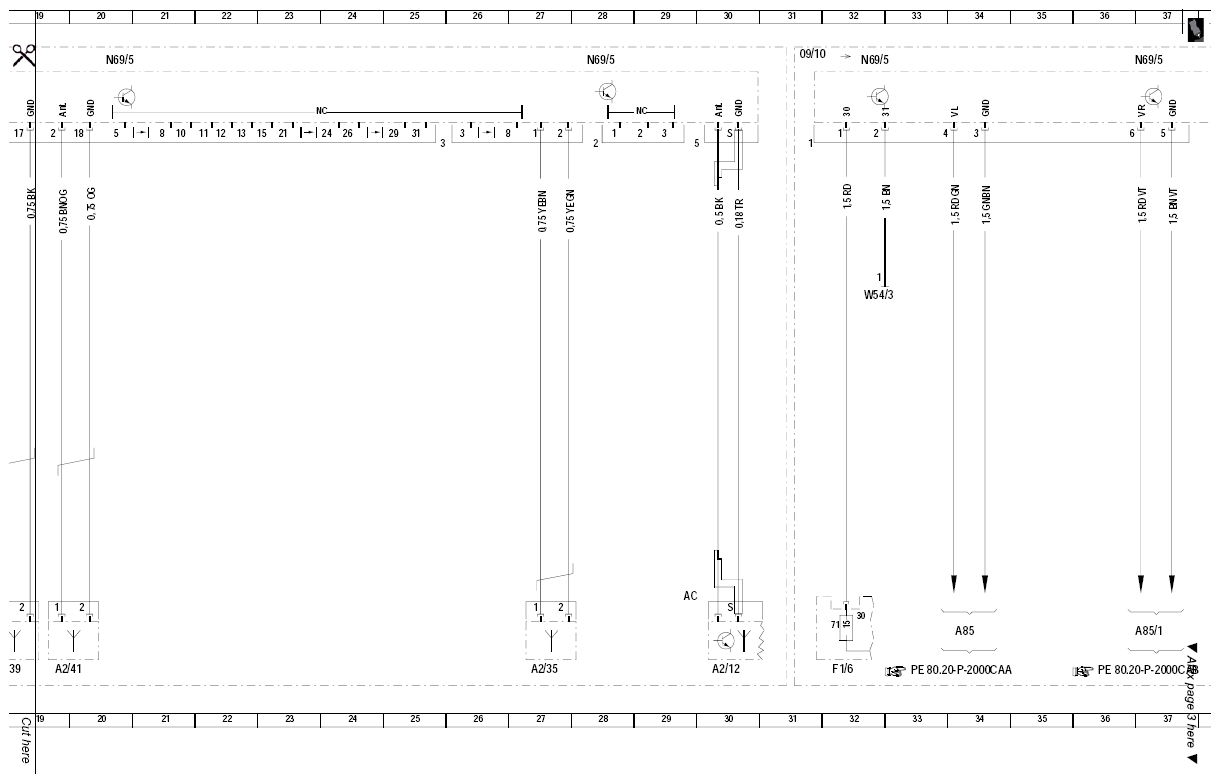

| AO |
Explanation of color codes |
31L |
| A2/12 |
Rear window antenna amplifier module |
30L |
| A2/35 |
Trunk KEYLESS GO antenna |
27L |
| A2/39 |
Left door KEYLESS-GO antenna |
18L |
| A2/41 |
Right door KEYLESS-GO antenna |
19L |
| A2/60 |
Center console KEYLESS-GO antenna |
12L |
| A2/60x1 |
Center console KEYLESS-GO antenna connector |
12J |
| A2/61 |
Interior KEYLESS GO antenna |
14L |
| A2/61x1 |
Interior KEYLESS-GO antenna connector |
13J |
| A85 |
Left door lock unit |
4L |
| A85/1 |
Right door lock unit |
7L |
| A85/1m2 |
Right opening assist motor |
7L |
| A85m2 |
Left opening assist motor |
4L |
| B67/1 |
Left KEYLESS-GO sensor unit |
15L |
| B67/2 |
Right KEYLESS-GO sensor unit |
17L |
| F1/6 |
Right instrument panel fuse box |
1L |
| F1/6f71 |
Fuse 71 |
1K |
| N69/5 |
KEYLESS GO control unit |
4A |
| N69/5 |
KEYLESS GO control unit |
12A |
| N69/5 |
KEYLESS GO control unit |
20A |
| N69/5 |
KEYLESS GO control unit |
28A |
| W19 |
Ground (right front seat crossmember) |
2E |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
10L |
| X35/1 |
Left front door and FFS [RBA] connector |
4G |
| X35/1 |
Left front door and FFS [RBA] connector |
14E |
| X35/2 |
Right front door and FFS [RBA] connector |
7G |
| X35/2 |
Right front door and FFS [RBA] connector |
16E |
| X8/34 |
Left door handle connector |
14G |
| X8/35 |
Right door handle connector |
16G |
