Close TLC button and lock Keyless Go, component description - GF80.61-P-4108SX
MODEL 221.0 /1, 216.3 with CODE (889) Keyless Go with CODE (881) Remote trunk closing (RTC [HDFS]) up to Model Year 8
Shown on model 221.0

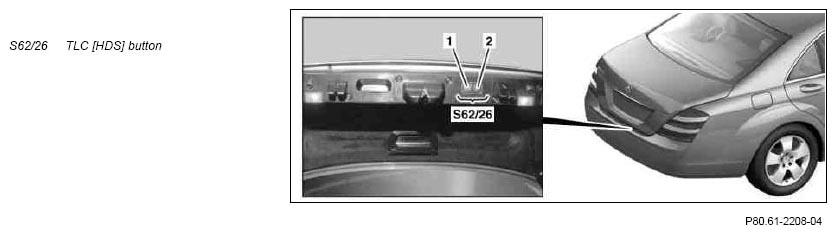

Location
The TLC button is located in the trunk lid, on the right next to the trunk lid CL motor (M14/7).
Task
- The trunk lid can be closed using the left button (1).
- The trunk lid and the CL can be locked using the right button (2).
Actuation of the TLC button is read in by the TLC control unit (N121).
