Flow chart for offline programming with Special Release CD - AH54.21-P-0001-04Z

Offline programming with Special Release CD

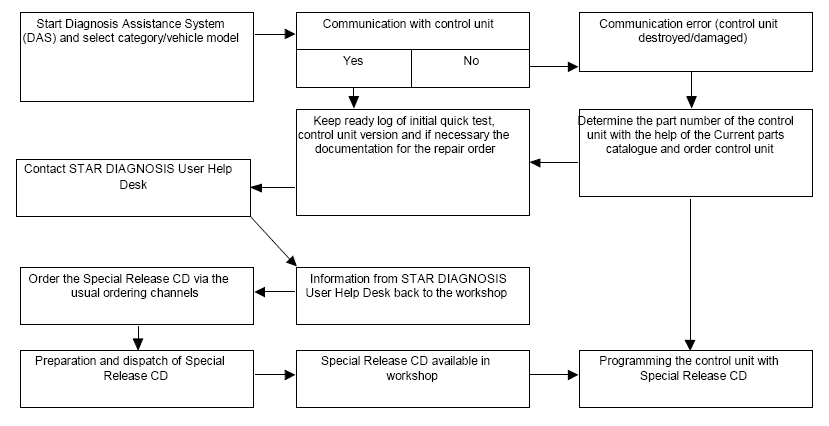

Fig 1: Identifying Offline Programming With Special Release CD Flow Chart
G07638073Courtesy of MERCEDES-BENZ USA
