Installing tapered roller bearing inner race on drive pinion and pressing in together with radial sealing ring - AR35.31-P-0550-16CF

Universal hypoid gear oils

Fig 1: Identifying Drift (124 589 02 15 00)

Fig 2: Identifying Drift (208 589 00 15 00)

Fig 3: Identifying Puller (000 589 65 33 00)

Fig 4: Identifying Drift (140 589 14 15 00)

1. Install tapered roller bearing inner race (43d) in rear axle housing.
2. Press in tapered roller bearing inner race (43d) using drift (036)

   124 589 02 15 00 and puller (035)

   000 589 65 33 00.

3. Remove puller (035) with drift (036) from rear axle housing.
   Fig 5: Pressing In Tapered Roller Bearing Inner Race Using Drift


4. Coat sealing lip of new radial sealing ring (42) with universal hypoid gear oil and press in using drift (034) .

   Drift (034) 208 589 00 15 00.

   The radial sealing ring (42) must be pressed in approx. 2 mm from the end face of the rear axle housing (up to the chamfer).

5. Remove drift (034) 208 589 00 15 00.

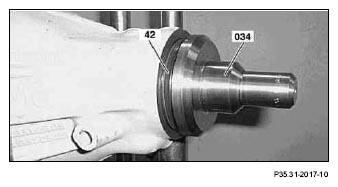

   Fig 6: Identifying Radial Seal Ring And Drift
