Remove/install rubber mount on track rod - AR35.20-P-0112-01P

Fig 1: Identifying Extraction And Installation Tool (203 589 01 43 00)

Remove

1. Using extraction and insertion tool (04e, 04f) press rubber mount (4b) out of the tie rod.

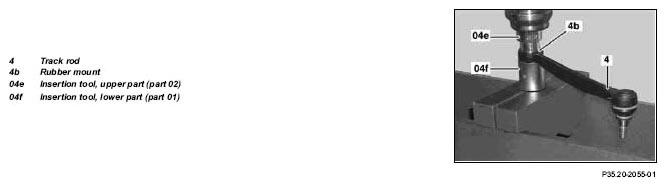

   Fig 2: Identifying Rubber Mount, Track Rod And Insertion Tool



Install

2. Using the extraction and insertion tool (04e, 04f) press the rubber mount (4b) into the tie rod until the collar of the extraction and insertion tool, upper part (04e) abuts the boss on the tie rod.
   Fig 3: Identifying Rubber Mount And Insertion Tool
