Removing |
|
|
 |
Risk of death
caused by vehicle slipping or toppling off of the lifting platform. |
Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. |
AS00.00-Z-0010-01A |
 |
Notes on self-locking nuts and bolts |
|
AH00.00-N-0001-01A |
| 1 |
Lift/jack up vehicle |
|
AR00.60-P-1000P |
| 2 |

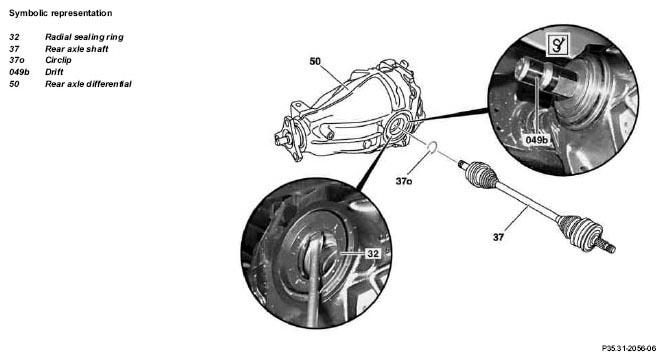

Remove each respective rear axle shaft (37) |
While working on the rear axle care must be taken to ensure that the surface of aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the of the parts will be reduced. |
AR35.30-P-0620PI |
| 3 |
Use a suitable tool to lever radial sealing ring (32) out of rear axle differential (50) |
To ensure that the radial sealing ring (32) does not leak and fits correctly, take care not to damage the seat surface of the radial sealing ring in the rear axle differential (50). |
|
 |
Install |
|
|
| 4 |
Press new radial sealing ring (32) into rear axle differential (50) using drift (049b) |
Coat lip at radial sealing ring (32) with universal hypoid gear oil. |
|
 |
Universal hypoid gear oil (SAE 85 W-90) |
Sheet 235.7 |
BB00.40-P-0235-07A |
| |
|
Press the radial sealing ring (32) evenly into the rear axle differential (50).
Make sure that the radial sealing ring (32) is seated correctly. |
|
| |
|
Drift |
Figure |
| 5 |
Install new circlip (37o) on inner splined shaft of rear axle shaft (37) |
|
|
| 6 |
Install rear axle shaft (37). |
While working on the rear axle care must be taken to ensure that the surface of aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the of the parts will be reduced. |
AR35.30-P-0620PI |
 |
Checking |
|
|
| 7 |
Check oil level in rear axle differential (50) and correct if necessary |
In the interest of better fuel economy, avoid mixing old universal hypoid gear oil with new FE hypoid gear oil. |
AR35.31-P-0520-03I |
|
Universal hypoid gear oils (SAE 85 W-90) |
Sheet 235.7 |
BB00.40-P-0235-07A |
| |
|
Model 203.040/042/043/046/240/242/243/246/740/742/743/746 with rear axle differential 187FE up to production period 18.1.04
↓ |
|
 |
Oil filler/drain screw on rear axle differential modified |
up to 18.1.04 |
BT35.31-P-0015-01A |
| |
|
Oil filler screw for rear axle differential |
*BA35.31-P-1001-02B |
| |
|
Filling capacity of rear axle differential |
*BF35.31-P-1001-01K |
| |
|
Torque wrench |
Figure |
| |
|
Loctite 7063 cleaning spray (150 ml) |
*BR00.45-Z-1046-04A |
| |
|
Omnifit sealing compound 100H (50 g) |
*BR00.45-Z-1061-01A |
| 8 |
Check rear axle differential (50) for leaks |
Carry out visual inspection. |
|
