Remove/install track rod - AR46.40-P-0200PW
MODEL 203.081 /084 /087 /092 /281 /284 /287 /292

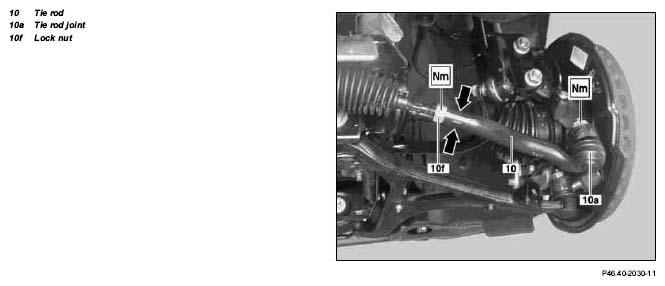

Fig 1: Identifying Track Rod Remove/Install Components - Model 203.081 /084 /087 /092 /281 /284 /287 /292
MODIFICATION NOTES
| 20.1.04 | Reference to adjusting toe on front axle replaced by reference to chassis alignment check | Step 6 |
| Remove/install | |||
|---|---|---|---|
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle. | AR00.60-P-1000P | |
| 2 | Remove front wheel | ||
| Remove/install wheels, rotate if necessary | AP40.10-P-4050Z | ||
| 3 | Press track rod joint (10a) out of steering knuckle assembly. | AR46.40-P-0200-02PW | |
| Figure | |||
| Figure | |||
| *BA46.40-P-1001-01E | |||
| 4 | Release locknut (10f) and unscrew track rod (10) | ||
| *BA46.40-P-1002-01E | |||
| 5 | Install in the reverse order | ||
| 6 | Perform chassis alignment | AR40.20-P-0200P |
| Number | Designation | Models 203.081/084/ 087/092/281/ 284/287/292 | ||
|---|---|---|---|---|
| BA46.40-P-1001-01E | Self-locking nut, tie rod to steering knuckle | 1st stage | Nm | 70 |
| 2nd stage | ∠ ° | - | ||
| BA46.40-P-1002-01E | Lock nut, tie rod to inner tie rod | Nm | 60 | |
