Remove/install track rod - AR46.40-P-0200I

MODEL 203 (except 203.081 /084 /087 /092 /281 /284 /287 /292)

MODEL 209

MODEL 215

MODEL 220 (except 220.083 /084 /087 /183 /184 /187)

MODEL 230

Shown on model 220

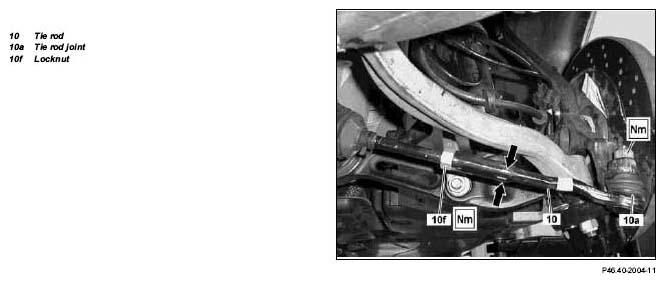

Fig 1: Identifying Track Rod Remove/Install Components (Shown On Model 220)

MODIFICATION NOTES

10.9.03

Reference to adjusting toe on front axle replaced by reference to chassis alignment check

Step 5

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Remove front wheel
	Remove/install wheels, rotate if necessary		AP40.10-P-4050Z
2	Pry off tie rod joint (10a) from steering knuckle assembly.	Installation: Replace self-locking nut.	AR46.40-P-0200-02I
		Thrust piece	Figure
		Puller	Figure
			*BA46.40-P-1001-01E
	Dimensions of tie rod ball joints have been modified	Model 220	BT46.40-P-0002-01A
3	Release locknut (10f) and unscrew track rod (10)	Counterhold tie rod (10) for loosening the jam nut (10f) (arrow).
			*BA46.40-P-1002-01E
4	Install in the reverse order
5	Perform chassis alignment	Model 203, 209	AR40.20-P-0200P
		Model 215, 220 except 220.175/178/875/878	AR40.20-P-0200I
		Model 220.175/178	AR40.20-P-0200MB
		Model 220.875/878	AR40.20-P-0200MP
		Model 230	AR40.20-P-0200R

TIE ROD

Number	Designation			Model 203 except models 203.081/084/ 087/092/281/ 284/287/292	Model 209	Model 215	Model 220 except models 220.083/ 084/087/ 183/184/ 187
BA46.40-P-1001-01E	Self-locking nut, tie rod to steering knuckle	1st stage	Nm	50	50	50	50
BA46.40-P-1001-01E	Self-locking nut, tie rod to steering knuckle	Stage 2	∠ °	60	60	60	60
BA46.40-P-1002-01E	Lock nut, tie rod to inner tie rod		Nm	60	60	60	60

TIE ROD

Number	Designation			Model 230
BA46.40-P-1001-01E	Self-locking nut, tie rod to steering knuckle	1st stage	Nm	50
BA46.40-P-1001-01E	Self-locking nut, tie rod to steering knuckle	Stage 2	∠ °	60
BA46.40-P-1002-01E	Lock nut, tie rod to inner tie rod		Nm	60

Fig 2: Identifying Thrust Piece (140 589 00 63 00)

Fig 3: Identifying Puller (124 589 03 33 00)
