Remove/install front seat backrest seat-back lining - AR91.10-P-1910P

MODEL 203, 209

Shown on model 203.0 up to 31.5.04

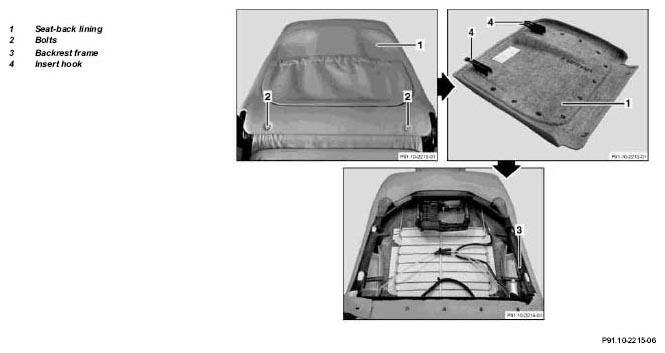

Fig 1: Identifying Front Seat Backrest Seat-Back Lining Remove/Install Components - Shown On Model 203.0 Up To 31.5.04
G04738222
REMOVINGINSTALLING Remove/install
1 Move front seat forward
2 Fold backrest forward
3 Unscrew bolt (2)
4 Remove seat-back lining (1) downwards IMPORTANTInstallation:  Route both insert hooks (4) at top into backrest frame (3).
5 Install in the reverse order
