Remove/install driver seat cushion - AR91.10-P-1070P
MODEL 203 up to 31.5.04,
Illustrated on Model 203.0

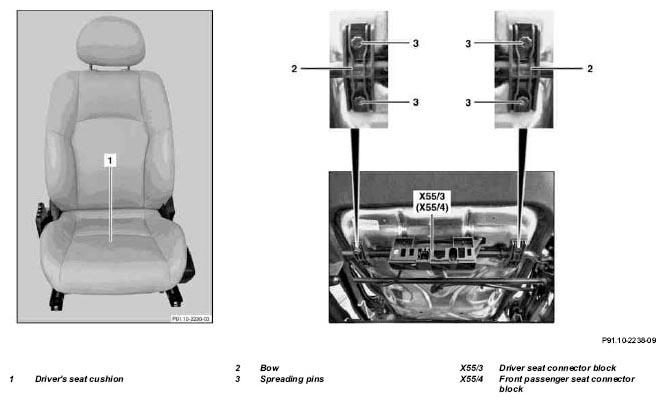

Fig 1: Identifying Driver Seat Cushion Remove/Install Components - Illustrated On Model 203.0 (1 Of 2)
Illustrated on Model 203.0

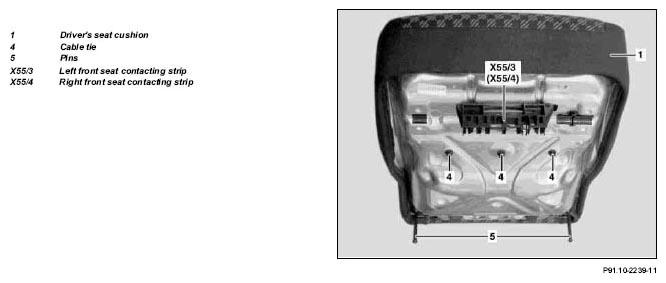

Fig 2: Identifying Driver Seat Cushion Remove/Install Components - Illustrated On Model 203.0 (2 Of 2)
| Remove/install | |||
|---|---|---|---|
| 1 | Remove driver seat | Model 203 | AR91.10-P-1000P |
| Model 209 | AR91.10-P-1000Q | ||
| 2 | Tip driver seat up (1) | ||
| 3 | Remove spreading pins (3) | ||
| 4 | Open driver seat contacting strip (X55/3), passenger seat (X55/4) | ||
| 5 | Unclip all the plugs from the connector block | ||
| 6 | Unclip bracket (2) | ||
| 7 | Disengage pins (5) | ||
| 8 | Separate cable tie (4) | ||
| 9 | Remove driver seat cushion (1) toward front. | ||
| 10 | Install in the reverse order |
