Rattling noises after starting engine until oil pressure has built up - AF05.20-P-1401AG

ENGINE 271 in MODEL 203, 209, 211

Operation no. of operation texts or standard texts and flat rates

Category	Op. no.	Operation text	Time	Acc. no.	Code
P	015014	Remove/install/seal cylinder header cover (1), model 203	017 WU	-	-
P	015014	Remove/install/seal cylinder head cover (1), model 209	016 WU	-	-
P	015014	Remove/install/seal cylinder head cover (1), model 211	018 WU	-	-
P	057211	Remove/install camshaft adjusters (all); replace according to condition (cylinder head covers removed), model 203, 209	022 WU	-	-
P	057211	Remove/install camshaft adjusters (all); replace according to condition (cylinder head covers removed), model 211	028 WU	-	-

Damage code	Cause	Remedy
0505036 Camshaft adjuster, intake 0505236 Camshaft adjuster Outlet	Locking clearance on camshaft adjuster too large. This is caused by deviation in the position and diameter of the locking hole in the impeller (see figure).	A short noise (max. 2 s) after starting cold and longer off periods is no reason for complaint because the engine oil runs completely out of the camshaft adjusters. Install camshaft adjuster with limited clearance (modified parts are marked with color coding).
		1 Remove/install/replace camshaft adjuster. Replace central bolts (2). Oil thread when installing.	AR05.20-P-7201QK
			Fig 2
			*BA05.20-P-1002-02A

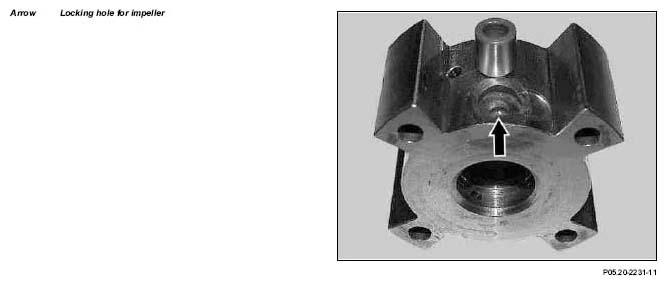

Fig 1: Locating Locking Hole For Impeller

Camshaft, camshaft adjustment

Number	Designation			Engine 271
BA05.20-P-1002-02A	Center screw of camshaft adjuster at camshaft	Step 1	Nm	90
		Step 2	∠ °	-

Fig 2: Identifying Socket (001 589 65 09 00)

Parts ordering notes

Part no.	Designation	Quantity
A 271 050 01 71	Center bolt	2
A 271 050 09 47	Camshaft adjuster, intake, Part is marked with green color coding	1
A 271 050 10 47	Camshaft adjuster, outlet, Part is marked with green color coding	1
