Instrument cluster (IC), location/task - GF54.30-P-3039PP

MODEL 203.0 /2 /7 up to 23.4.04

Illustrated on model 203.0

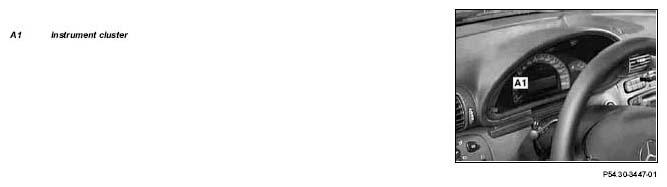

Fig 1: Identifying Instrument Cluster (IC) - Illustrated On Model 203.0
G04733722
  Instrument cluster (IC), location The instrument cluster (A1) is located in the instrument panel.
  Instrument cluster (IC), task   GF54.30-P-3039-02PP
