Basic Knowledge
>>
Fuel pump relay position - GF54.15-P-4105-01P
Fuel pump relay position - GF54.15-P-4105-01P
Model 203, 209
Shown on model 203

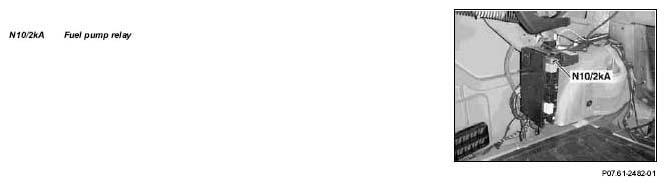

Fig 1: Identifying Fuel Pump Relay - Shown On Model 203
