Retrofit AMG steering wheel - AZ46.10-P-1001P

MODEL 203 (except 203.076 /276)

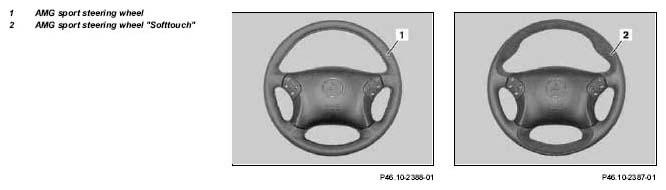

Fig 1: Retrofitting AMG Steering Wheel - Model 203 (Except 203.076 /276)

	Remove/install
		After conversion, have proper installation confirmed by authorized workshop on form sheet "Excerpt from EU Type Approval". The form sheet is to be kept in the vehicle and to be handed over to the responsible persons if required.
	Steering wheel certificate	Model 203.204 /206 /207 /208 /216 /218 /220 /235 /240 /242 /243 /245 /246 /252 /254 /256 /261 /264 /265 /281 /284 /287 /292. * For Germany only	OF46.10-P-1000-01A
	Steering wheel certificate	Model 203.004 /006 /007 /008 /016 /018 /020 /035 /040 /042 /043 /045 /046 /052 /054 /056 /061 /064 /065 /081 /084 /087 /092. * For Germany only	OF46.10-P-1000-01B
	Steering wheel certificate	Model 203.706 /707 /708 /718 /730 /735 /740 /742 /743 /745 /746 /747 /752 /756 /764. * For Germany only	OF46.10-P-1000-01C
	Risk of injury  caused by performing testing and repair work on airbag or emergency tensioning retractor units	Store airbag units with deployment face facing upward, do not subject to temperatures above 100 °C. When working on these units, disconnect the power supply.	AS91.00-Z-0001-01A
	Instructions for performing repairs, body work and welding on vehicles with airbags and emergency tensioning retractor units		AH91.00-P-0002-01M
1	Remove airbag unit from steering wheel	Installation:  The airbag unit must be exchanged on model 203.7, except vehicles with a steering wheel in leather/Designo wood finish code Y95 (see Parts ordering notes). On models 203.0 and 203.2 the series production airbag unit is to be used, except vehicles with EVOLUTION sports package code 949 or EVOLUTION AMG sports package code 950. Likewise the corresponding airbag unit must be exchanged here (see Parts ordering notes).
			AR91.60-P-0660P
2	Remove steering wheel
			AR46.10-P-0100P
3	Install in the reverse sequence	Steps 2 to 1.

PARTS ORDERING NOTES

Part no.	Designation	Quantity
B6 603 72 01	AMG sport steering wheel	1
B6 603 73 01	AMG sport steering wheel "Softtouch"	1
	In addition an airbag unit must be ordered for model 203.0 and 203.2 with EVOLUTION sports package code 949 or EVOLUTION AMG sports package code 950, model 203.7 (except model 203.7 with steering wheel in leather/Designo wood finish code Y95):
A203 460 11 98	Airbag unit (not for USA and Canada, vehicles up to 31.05.2002)	as required
A203 460 15 98	Airbag unit (for USA and Canada up to 31.01.2002)	as required
A203 460 18 98	Airbag unit for ECE, USA, Canada (vehicles as of code 803, modification year 02/1)	as required
A126 990 03 12	Bolt M16 (must be ordered separately, is not included in parts kit)	1
