Mixture Formation -- Self-Diagnostic System -- 203 Chassis - 2 Of 2
>>
Self-Diagnostic System
>>
Testing of electrical system for ME-SFI ignition system crankshaft position sensor - AD07.61-P-6001-09A
Testing of electrical system for ME-SFI ignition system crankshaft position sensor - AD07.61-P-6001-09A

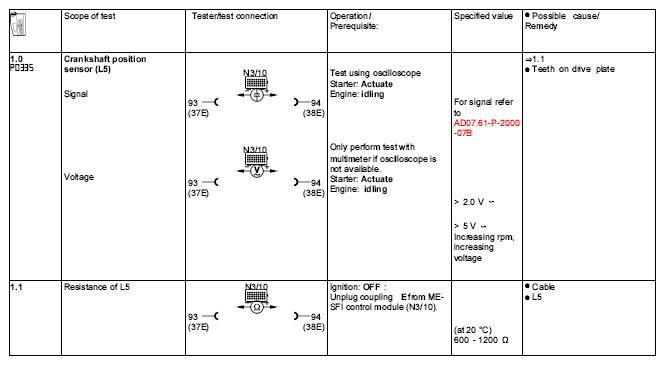

Fig 1: Testing Of Electrical System For ME-SFI Ignition System Crankshaft Position Sensor
