Testing of electrical system for ME-SFI control module terminal 30 in ME-SFI fuel injection system - AD07.61-P-6000-01A

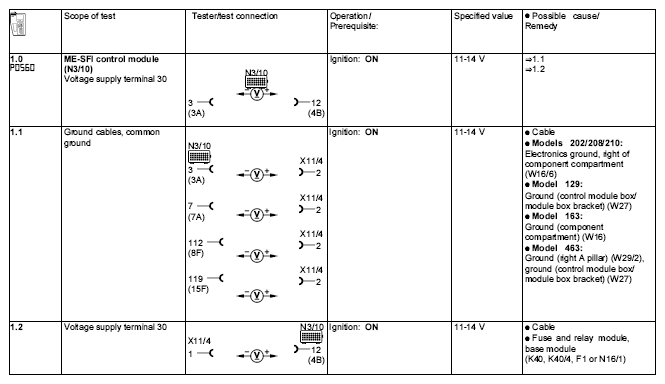

Fig 1: Testing Of Electrical System For ME-SFI Control Module Terminal 30 In ME-SFI Fuel Injection System
G04736866
