Home >> Mercedes Benz >> 2007 >> C280 Base >> Repair and Diagnosis >> Engine Performance >> Tune-Up >> Mixture Formation -- Self-Diagnostic System -- 203 Chassis - 2 Of 2 >> Self-Diagnostic System >> Cruise control push-button switch - Testing electrical system, ME-SFI cruise control with variable speed limiting - AD07.61-P-6003-01D

Cruise control push-button switch - Testing electrical system, ME-SFI cruise control with variable speed limiting - AD07.61-P-6003-01D

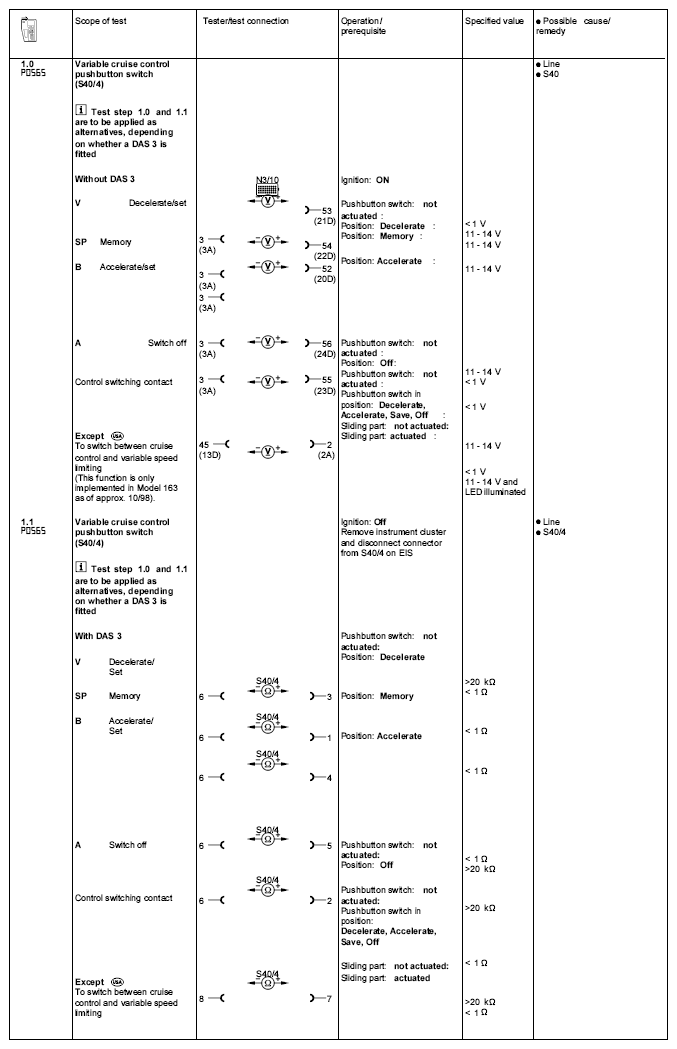

Fig 1: Cruise Control Push-button Switch - Testing Electrical System, ME-SFI Cruise Control With Variable Speed Limiting
G04736992
