Fault code description - ME-SFI - CAN faulty - AD07.61-P-4000-26A
| 1 | Fault code | P0600 CAN from ASR or ESP (not for Model 463) P1747 CAN from ETC or from instrument cluster |
| 2 | Fault storage | after the end of the test period and faults |
| Activation of malfunction indicator lamp for engine diagnosis (EURO3/4) or CHECK ENGINE (MIL) |
after two successive driving cycles with faults | |
| 3 | Frequency of the test | continuous |
| 4 | Checked signal or status | CAN communication |
| 5 | Test duration | approx. 15 s |
| 6 | The data exchange between the control modules is monitored via the CAN controller in the ME-SFI control module. |

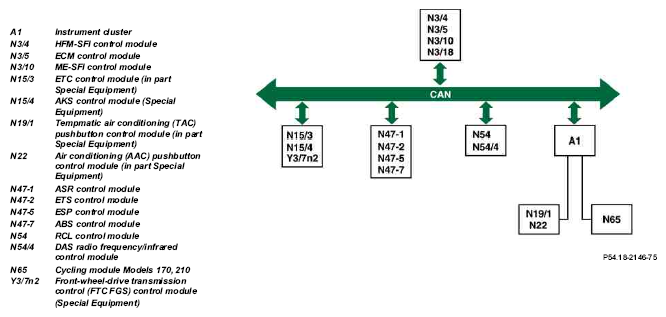

Example of engine CAN data bus
Models 129, 140, 163, 168, 170, 202, 203, 208, 210
