Engine diagnosis indicator lamp comes on and various DTC's in engine control module stored, oil exit on engine wiring harness possible - AF05.20-P-2001AU

ENGINE 111.951 in MODEL 203.035 /235 /735

ENGINE 111.955 in MODEL 203.045 /245 /745

ENGINE 111.956 in MODEL 202.087, 208.344 /444

ENGINE 111.958 in MODEL 170.444

ENGINE 111.981 in MODEL 203.747

ENGINE 111.982 in MODEL 208.348 /448

ENGINE 111.983 in MODEL 170.449

Operation no. of operation texts or standard texts and flat rates

Category	Op. no.	Operation text	Time	Acc. no.	Code
P	024079	Install adapter cable in engine wiring harness	003 WU	-	-

Damage code	Cause	Remedy
05 047 04	Leakage in camshaft adjustment solenoid results in oil in engine wiring harness	1 Remove/install/replace camshaft adjustment solenoid.
	Possible complaints: Engine diagnosis lamp comes on in instrument cluster DTC's are stored in engine control module	2 Install adapter cable (see figure for routing)
	Oil leakage on oxygen sensor, on hot film engine control (HFM), on engine control module or on engine wiring harness connectors	Fasten adapter cable with tie strap
		If other components (e.g. connector, couplings, wiring harness HFM) are oily: ↓ 3 Remove/ install/replace affected components

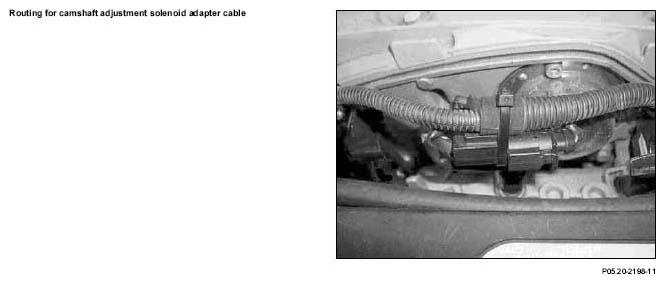

Routing for camshaft adjustment solenoid adapter cable

Fig 1: Identifying Camshaft Adjustment Solenoid Adapter Cable Routing

Parts ordering notes

Part no.	Designation	Quantity
A 001 997 83 90	Tie strap	1
A 271 150 27 33	Adapter cable	1
