Magnetic clutch for the mechanical supercharger - design - GF09.50-P-3103-03H

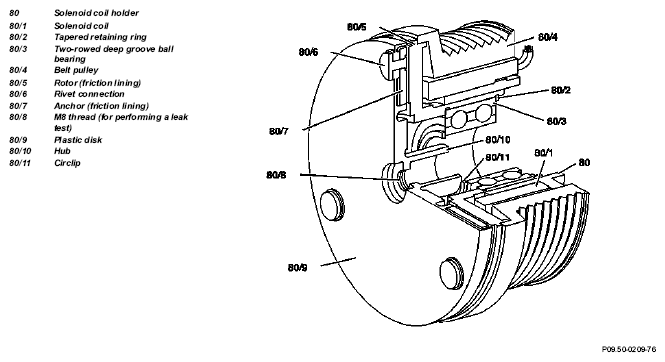

Fig 1: Identifying Magnetic Clutch For Mechanical Supercharger Design
G04732108

There is an air gap between the rotor (80/5) and the anchor (80/7) of between 0.3 and 0.5 mm which is not under power and which cannot be adjusted.

IMPORTANT

The magnetic clutch for the mechanical supercharger can only be replaced as a complete unit with the compressor.
