Component description for the air recirculation flap actuator - GF09.50-P-2100KE

ENGINE 271.921 /940 /941 /944 /946 /948 /955 /956

Location

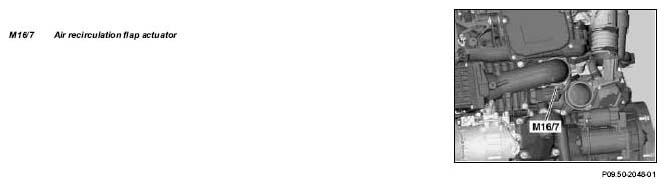

Fig 1: Identifying Air Recirculation Flap Actuator

The air recirculation flap actuator is secured to the supercharger on the left.

Task

The air recirculation flap actuator controls the boost pressure by continuously variable adjustment (between 0 and 90°) of the air recirculation flap.

Design

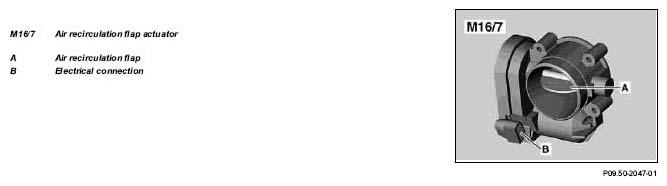

Fig 2: Identifying Air Recirculation Flap Design

The air recirculation flap actuator consists of the following components:

Housing
Electrical connection
Actuator motor
Actual value potentiometer 2
Air recirculation flap

Function

The recirculated air flap actuator is actuated by the ME control unit (N3/10) for charge air control. Here, both actual value potentiometers inform the ME control unit of the actual position of the air recirculation flap (between 0 and 90°). The air recirculation flap is always closed at full throttle (maximum charge pressure).

In de-energized status and in the event of a fault at the actuator, the air recirculation flap is held by an integrated return spring in the open position.
