Recirculated air flap actuator position - GF09.50-P-3101-01B

Model 203 with engine 111.955 n

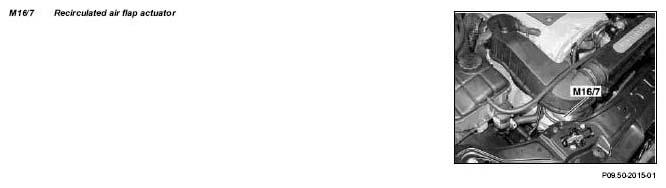

Fig 1: Identifying Recirculated Air Flap Actuator Position - Model 203 With Engine 111.955 N

G04732101
