Seam sealing following repair, side damage - AR97.10-P-4000-03PB

Insert plastic plugs and rubber grommets with sealing compound. Keep thread of welding nuts and threaded bolts free from sealant by masking with tape or by covering with cardboard sleeves. Also keep contact surfaces for axle mounts, windows and detachable body components free of sealant.

Seal spot welding flange on both sides, where accessible. If accessible from one side only seal corresponding surface. Observe standard seals!

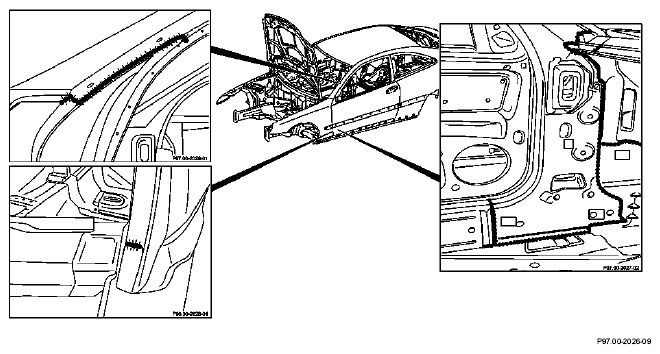

Fig 1: Identifying Seam Sealing - A-Pillar Area Of Inner Or Side Wall Paneling And Door Sill

A-pillar area of inner or side wall panelling and door sill

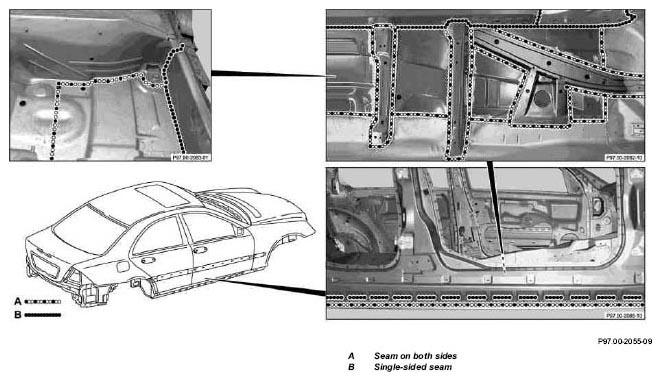

Fig 2: Identifying Seam Sealing - Longitudinal Member And Cross Member Floor, Inner Side Wall And Outer Door Sill - Illustrated On Model 203.0

Illustrated on Model 203.0

Longitudinal member and cross member floor, inner side wall and outer door sill

Illustrated on Model 203.0

Sliding roof cutout

Fig 3: Identifying Seam Sealing - Sliding Roof Cutout - Illustrated On Model 203.0

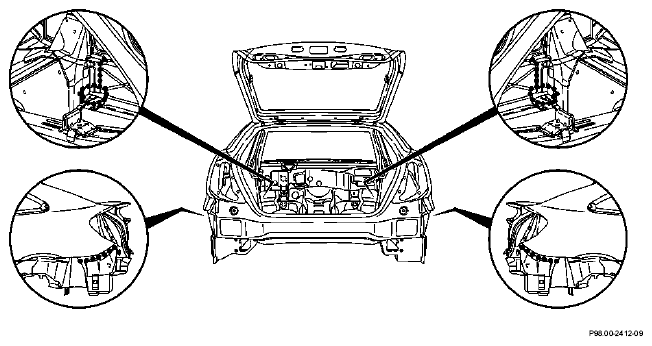

Fig 4: Identifying Seam Sealing - Rear Fender Area

Rear fender area

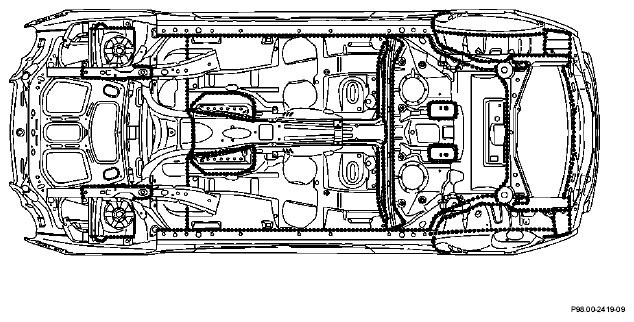

Fig 5: Identifying Seam Sealing - Underfloor And Inner Or Outer Rear Wheelhouse Liner

Underfloor and inner or outer rear wheelhouse liner
