Seam sealing following repair, side damage - AR97.10-P-4000-03P
Insert plastic plugs and rubber grommets with sealing compound. Keep thread of welding nuts and threaded bolts free from sealant by masking with tape or by covering with cardboard sleeves. Also keep contact surfaces for axle mounts, windows and detachable body components free of sealant.
Seal spot welding flange on both sides, where accessible. If accessible from one side only seal corresponding surface. Observe standard seals!

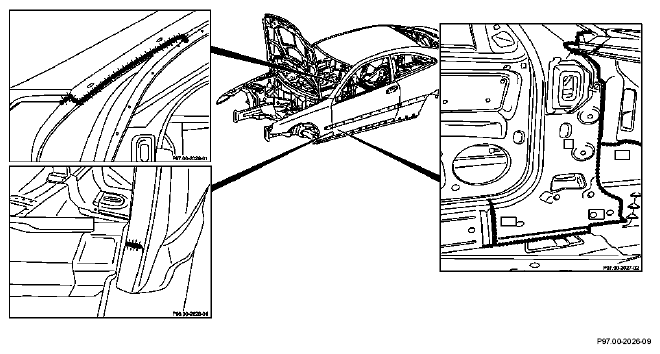

Fig 1: Identifying Seam Sealing - A-Pillar Area Of Inner Or Side Wall Paneling And Door Sill - Shown On Model 203.7
Shown on Model 203.7
A-pillar area of inner or side wall paneling and door sill
Fig 2: Identifying Seam Sealing - Longitudinal Member And Cross Member Floor, Inner Side Wall And Outer Door Sill

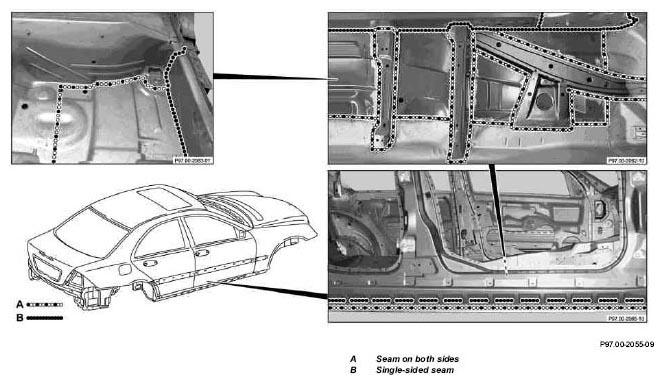

Longitudinal member and cross member floor, inner side wall and outer door sill
Sliding roof cutout

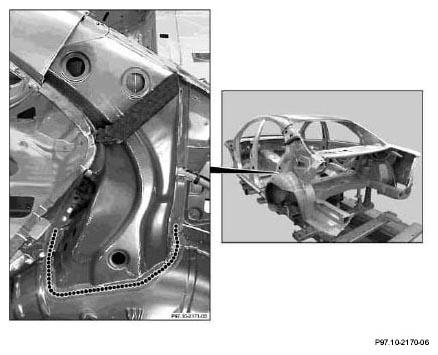

Outer C-pillar

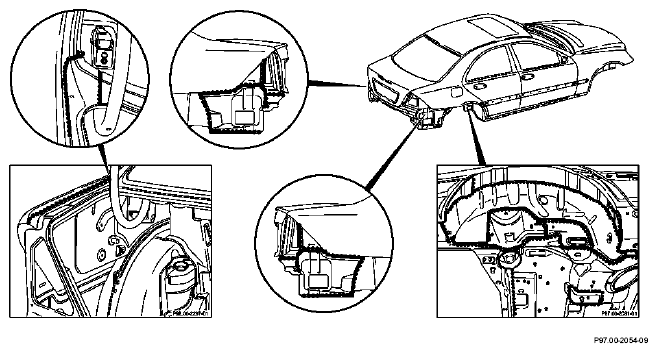

Area of rear or tailgate and rear wheelhouse liner

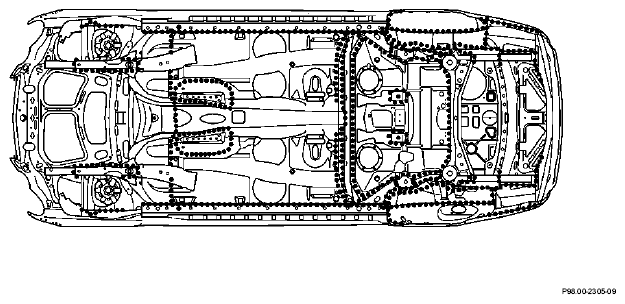

Underfloor and inner or outer rear wheelhouse liner
