Seam sealing following repair, rear end damage - AR97.10-P-4000-02PB

IMPORTANT Insert plastic plugs and rubber grommets with sealing compound. Keep thread of welding nuts and threaded bolts free from sealant by masking with tape or by covering with cardboard sleeves. Also keep contact surfaces for axle mounts, windows and detachable body components free of sealant.

Seal spot welding flange on both sides, where accessible. If accessible from one side only seal corresponding surface. Observe standard seals!

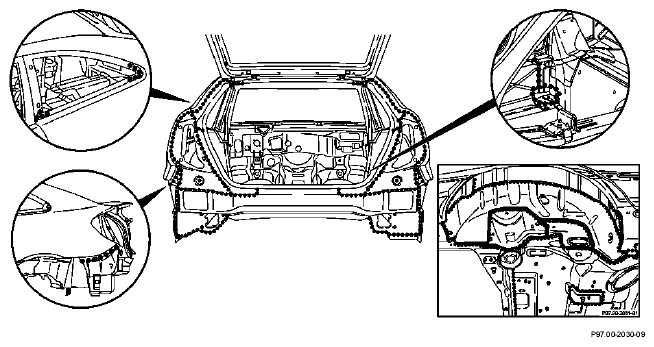

Fig 1: Identifying Seam Sealing - Rear Side Window, Rear Fender And Rear End Area
G04736427

Rear side window, rear fender and rear end area

Shown on 203.0

Rear wheelhouse (right and left)

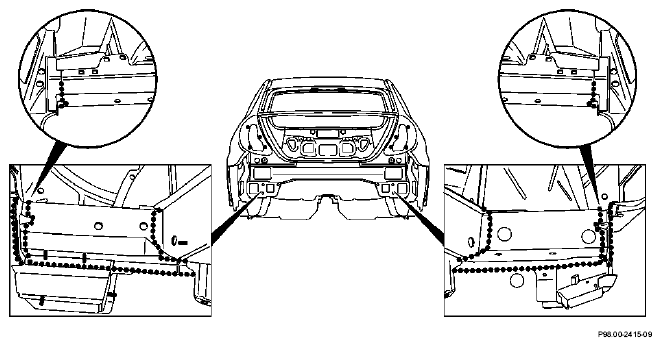

Fig 2: Identifying Seam Sealing - Lower Rear Area
G04736428

Lower rear area
