Seam sealing following repair, rear end damage - AR97.10-P-4000-02PA

Insert plastic plugs and rubber grommets with sealing compound. Keep thread of welding nuts and threaded bolts free from sealant by masking with tape or by covering with cardboard sleeves. Also keep contact surfaces for axle mounts, windows and detachable body components free of sealant.

Seal spot welding flange on both sides, where accessible. If accessible from one side only seal corresponding surface. Observe standard seals!

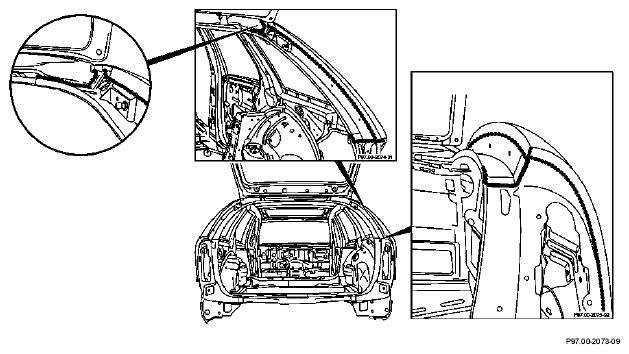

Fig 1: Identifying Seam Sealing - Welding Channel And Rear Roof Head Area

Welding channel and rear roof head area

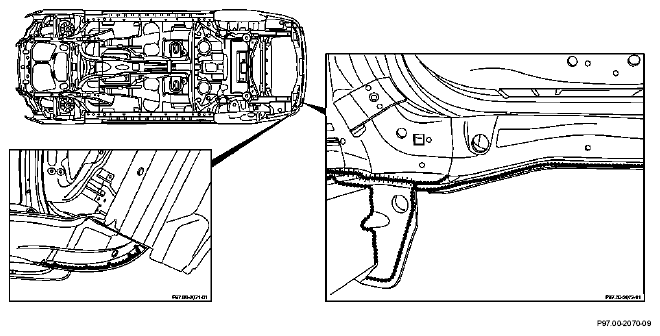

Fig 2: Identifying Seam Sealing - Rear End And Rear Longitudinal Member Area

Rear end and rear longitudinal member area

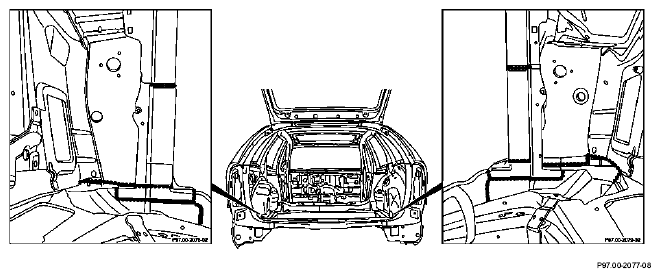

Fig 3: Identifying Seam Sealing - Rear Luggage Compartment Floor Area

Rear luggage compartment floor area

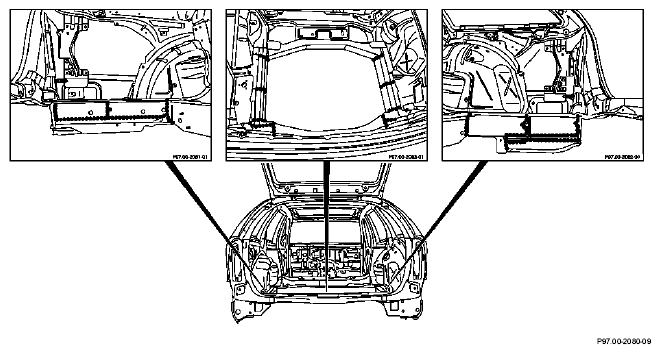

Fig 4: Identifying Seam Sealing - Luggage Compartment Floor Sides Area

luggage compartment floor sides area

Rear end side (right and left) and taillamp area

Fig 5: Identifying Seam Sealing - Rear End Side And Taillamp Area
