Seam sealing following repair, front end damage - AR97.10-P-4000-01P

Insert plastic plugs and rubber grommets with sealing compound. Keep thread of welding nuts and threaded bolts free from sealant by masking with tape or by covering with cardboard sleeves. Also keep contact surfaces for axle mounts, windows and detachable body components free of sealant.

Seal spot welding flange on both sides, where accessible. If accessible from one side only seal corresponding surface. Observe standard seals!

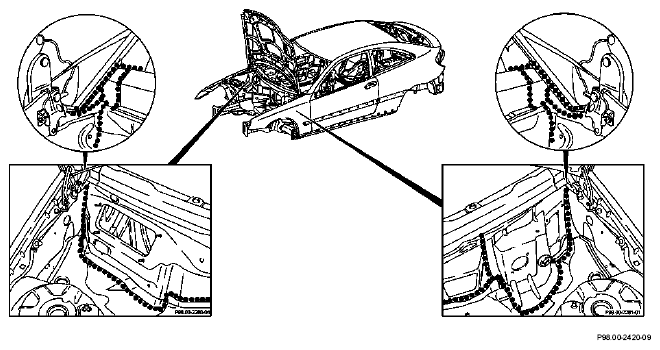

Fig 1: Identifying Seam Sealing - Engine Compartment Area - Shown On 203.7

Shown on 203.7

Engine compartment area

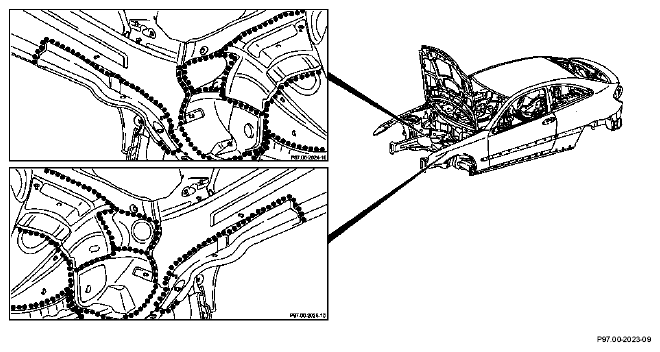

Fig 2: Identifying Seam Sealing - Front Longitudinal Member, Firewall And Front Wheelhouse Area - Shown On 203.7

Shown on 203.7

Front longitudinal member, firewall and front wheelhouse area

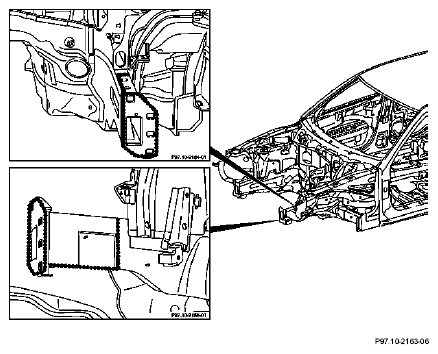

Fig 3: Identifying Seam Sealing - Area Of Front Wheelhouse Liner And Complete Front Longitudinal Member - Shown On 203.7

Shown on 203.7

Area of front wheelhouse liner and complete front longitudinal member

Area of longitudinal member front section

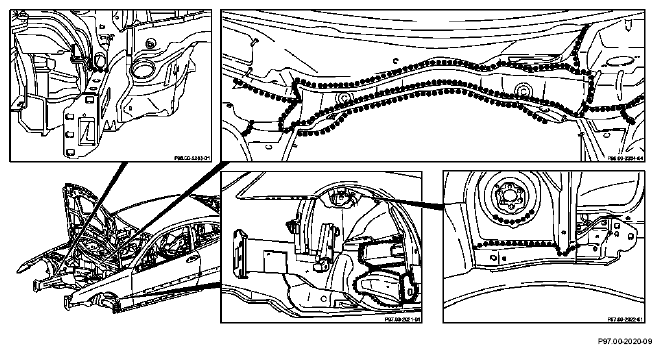

Fig 4: Identifying Seam Sealing - Area Of Longitudinal Member Front Section
