Seam sealing following repair, detachable body components - AR97.10-P-4000-04PB
Insert plastic plugs and rubber grommets with sealing compound. Keep thread of welding nuts and threaded bolts free from sealant by masking with tape or by covering with cardboard sleeves. Also keep contact surfaces for axle mounts, windows and detachable body components free of sealant.
Seal spot welding flange on both sides, where accessible. If accessible from one side only seal corresponding surface. Observe standard seals!

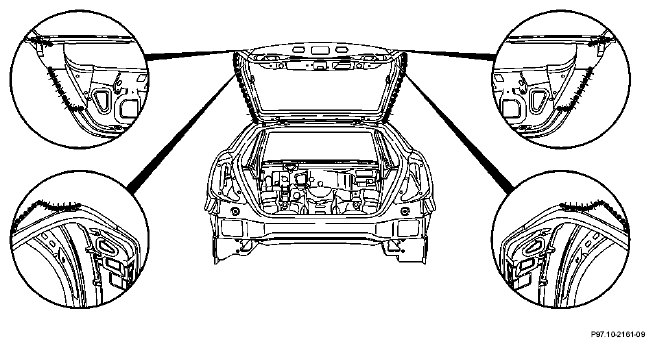

Illustrated on Model 203.0
Engine hood
Door
Tailgate area
